Diagnosing and Replacing the Ignition Coil Pack on a 1996-2001 Ford Explorer
If your Explorer is running rough, misfiring, or losing power, a bad ignition coil pack could be the reason.
- Your 1996-2001 Explorer uses a single ignition coil pack, not individual coil-on-plugs.
- A flashing check engine light indicates a severe misfire that can damage your catalytic converter; avoid driving if possible.
- Replacing the spark plugs and wires at the same time as the coil pack is highly recommended for a complete and reliable repair.
- A high-quality aftermarket brand like Denso is a reliable, cost-effective alternative to the OEM Motorcraft part.
Understanding Your Explorer's Ignition System
The 1996-2001 Ford Explorer uses a distributorless ignition system with a single coil pack. This pack is responsible for firing the spark plugs in pairs. It's a straightforward and generally reliable setup, but because one component supplies spark to the entire engine, its failure can cause significant problems. It is important to know which engine your Explorer has—the 4.0L OHV V6, 4.0L SOHC V6, or the 5.0L V8—as they may use different coil pack designs. Matching the part to your specific engine is critical for a successful repair.
Common Symptoms of a Failing Ignition Coil Pack
A bad ignition coil pack will almost always make itself known through poor engine performance. While a complete failure will prevent the engine from starting at all, it's more common to experience intermittent issues as the part wears out. These symptoms can be more noticeable in damp weather or when the engine is under load, like when accelerating or going up a hill.
- Engine Misfires: The engine may stumble, hesitate, or shake. This is often accompanied by a flashing check engine light, which signals a potentially damaging misfire.
- Rough Idle: Your Explorer might run unevenly or shake while stopped at a traffic light.
- Loss of Power: The truck may feel sluggish and slow to accelerate.
- Poor Fuel Economy: An inefficient spark means fuel isn't burned completely, leading to more frequent stops at the gas station.
- Engine Stalling: In advanced stages of failure, the engine might stall unexpectedly.
- Check Engine Light: A failing coil will trigger the check engine light with codes like P0300 (random misfire) or specific cylinder misfire codes (P0301-P0306). 🎬 Watch: A professional mechanic diagnoses a real-world Explorer misfire.
A Note on a Flashing Check Engine Light
If your check engine light is flashing, it indicates a severe misfire. Unburned fuel is passing into the exhaust system, which can quickly overheat and destroy your catalytic converters, leading to a much more expensive repair. It is strongly recommended to avoid driving the vehicle if the check engine light is flashing.
Choosing the Right Aftermarket Coil Pack
When replacing the ignition coil pack, you have a choice between OEM (Motorcraft) and aftermarket brands. For many electrical parts on Ford vehicles, sticking with the original manufacturer is a safe bet. However, high-quality aftermarket brands can offer similar performance and reliability at a better price. Denso, for example, is a well-respected company that is the original equipment manufacturer for many Motorcraft parts, including ignition coils. Choosing a reputable aftermarket brand like Denso is a smart way to save money without sacrificing quality.
Pro Tip: Replace Plugs and Wires, Too
The ignition coil pack, spark plugs, and spark plug wires all work together. Old spark plug wires with high resistance can strain the new coil pack, causing it to fail prematurely. For a complete and lasting repair, it's highly recommended to replace the spark plugs and wires at the same time as the coil pack.

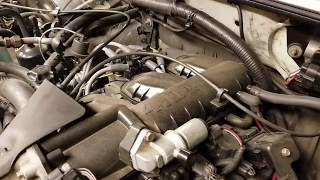

🎬 See this full tune-up guide for coils, plugs, and wires.| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $112 - $155 |
| New Aftermarket (Denso) | $94.31 |
| Shop Labor | $43 - $63 |
Frequently Asked Questions (FAQ)
Is this a difficult repair to do myself?
No, for most DIY mechanics, this is a very feasible job. The coil pack is typically located on top of the engine and held in place by a few bolts. The main steps involve disconnecting the battery, unplugging the electrical connector, removing the spark plug wires, unbolting the old coil, and installing the new one in the reverse order. Basic hand tools are all that's required.
🎬 Watch: Step-by-step walkthrough for replacing your Explorer's ignition coil.What are the bolts that hold the coil pack?
The ignition coil pack is typically held on by four bolts. Depending on the year and engine, these may be 7mm or 8mm bolts, or sometimes T-25 Torx screws. It's best to check your specific vehicle before starting the repair.
How do I keep the spark plug wires in the right order?
It is critical that the spark plug wires are reconnected to the correct terminals on the new coil pack. You can label each wire with masking tape and a marker before removing it from the old coil. Alternatively, you can move the wires one at a time from the old coil to the new one to avoid any mix-ups.
Are there any recalls for the ignition coil on my Explorer?
Searches of NHTSA data did not show any specific recalls for the ignition coil itself on 1996-2001 Ford Explorers. There was a recall involving a speed control deactivation switch that could pose a fire risk, but this was unrelated to the ignition coil's function.
Helpful Videos
Technical Specifications
OEM Part Numbers: FD487 DG530 DG523 DG435 DG449 DG454
This is a distributorless ignition system coil pack. The V6 engines use a single pack, while the 5.0L V8 may use two packs. The part has a 3-pin electrical connector and terminals for the spark plug wires.
