1996-2001 GMC Jimmy HVAC Blower Control Switch Replacement Guide
Restore full control over your Jimmy's cabin fan speeds by diagnosing and replacing the right part.
- If the fan only works on the highest speed, the blower motor resistor is the most likely culprit, not the switch.
- Replacement is a simple DIY job that most owners can complete in under an hour with basic tools.
- Aftermarket switches from brands like Four Seasons are a reliable and cost-effective option for this vehicle.
- A failing blower motor can cause the new switch or resistor to fail prematurely; check its condition during replacement.
Is Your Blower Control Switch Failing?
When the blower control switch in a 1996-2001 GMC Jimmy starts to fail, the symptoms are usually obvious. You might find that the fan only works on certain speeds, or it might not work at all. In some cases, the fan may work intermittently, cutting on and off as you drive or when you jiggle the knob. A complete loss of all fan speeds could point to a bad switch, a blown fuse, or a failed blower motor itself.
Fan Only Works on High? It's Probably Not the Switch.
One of the most common HVAC problems in these trucks is the fan only working on the highest setting. This almost always points to a failed blower motor resistor, not the control switch. The 'high' setting is designed to bypass the resistor, sending full power directly to the fan. If your fan works on high but not the lower speeds, you should inspect the blower motor resistor first 🎬 Watch why your fan might only work on high speed. before replacing the switch.
Choosing the Right Aftermarket Part
For this generation of GMC Jimmy, the original OEM switches are often discontinued or hard to find. Aftermarket parts are the most common and cost-effective solution. Brands like Four Seasons provide replacement switches designed to match the original's fit and function. While aftermarket quality is generally reliable for this component, it's always a good practice to visually compare the new switch to your old one before installation. Check that the electrical connector and the shaft for the knob are identical to avoid any fitment issues.
Pro Tip: Before ordering a new switch, consider testing the blower motor resistor and the blower motor itself. A failing motor can draw too much electrical current, causing both the resistor and the switch to burn out prematurely. Replacing all related components at once can prevent repeat failures.
Cost of Replacing a Blower Control Switch (1996-2001 GMC Jimmy)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Switch | $34 - $37 |
| Shop Labor | $60 - $120 |
| Total Estimated Cost | $94 - $157 |
Cost estimates are based on national averages and may vary by location and supplier. The provided aftermarket price range is specific to available inventory.
Frequently Asked Questions
Can I replace the blower control switch myself?
Yes, this is a DIY-friendly job for most owners. The process involves carefully prying off the dash trim around the climate controls, unplugging the old switch's electrical connector, removing a few screws, and installing the new one. Basic hand tools like a screwdriver and a small socket set are usually all that's needed. The job can typically be done in under an hour.
🎬 See how to replace the fan control switch yourself.What's the difference between the blower switch and the blower resistor?
The blower switch is the control knob on your dash that you use to select the fan speed. The blower motor resistor is a separate electrical part that receives the signal from the switch and controls the actual speed of the fan motor. A bad switch means no signal is sent, while a bad resistor can't properly regulate the fan speed, often resulting in the fan only working on high.
🎬 Learn the top signs of a faulty blower motor resistor.Are there any recalls for the HVAC system on my GMC Jimmy?
No, there are no specific recalls from the NHTSA for the HVAC blower control switch on the 1996-2001 GMC Jimmy. While other GM trucks have had recalls for related parts like the blower motor resistor and wiring, this specific part on this vehicle has not been recalled.
Why does my fan work intermittently or when I hit a bump?
This usually points to a loose or corroded electrical connection. The problem could be in the wiring connector at the back of the switch, the connector at the blower motor resistor, or an internal failure in the switch itself. Wiggling the fan knob and seeing a change often confirms the switch is the source of the bad connection.
Helpful Videos
Technical Specifications

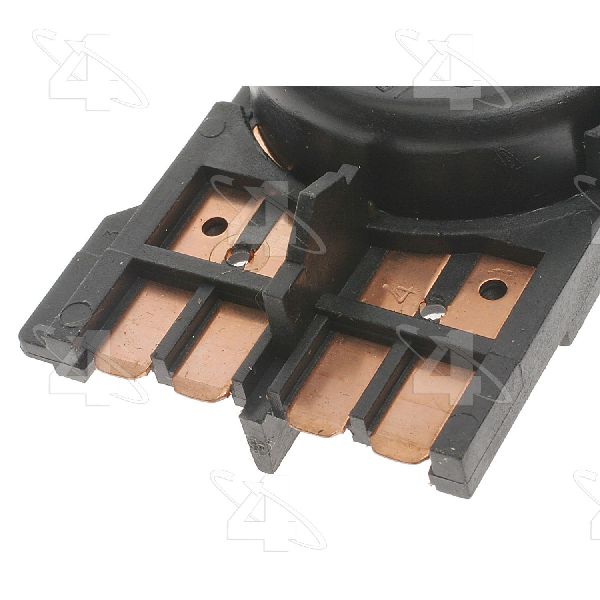

This is a rotary switch with multiple fan speed positions and an integrated electrical connector. It is part of the main HVAC control panel.
