A Practical Guide to 1996-2002 BMW Z3 Engine Mounts
Eliminate excessive engine vibration and restore the smooth, responsive feel of your Z3.
- Always replace engine mounts in pairs to ensure even support and prevent future issues.
- For a factory ride, choose an OEM-supplier brand like Corteco.
- A failed mount can cause the cooling fan to hit the shroud, leading to more expensive repairs.
- Remember to transfer the heat shield to the new passenger-side mount.
Signs of a Failing Engine Mount
Worn engine mounts on a Z3 can be more than just a minor annoyance. Because there isn't much extra space in the engine bay, a collapsed mount can cause serious issues. If the engine moves too much, the cooling fan can hit the fan shroud, leading to broken fan blades and potential damage to your radiator. Look out for these common symptoms:
- Increased Vibration: This is the most common sign. You might feel it through the steering wheel, floor, or seats, especially when the car is idling. 🎬 Watch: See these common symptoms of bad BMW mounts in action.
- Clunking Noises: You may hear a 'clunk' or 'thump' from the engine bay during acceleration, deceleration, or when shifting gears. This is the sound of the engine moving excessively.
- Visible Engine Movement: Open the hood and have a helper gently rev the engine while the car is in park with the brake on. If you see the engine lift or shift noticeably, the mounts are likely worn.
- Leaking Fluid: Z3 engine mounts are often fluid-filled. If you see dark, oily fluid on or around the mount, it has failed and needs immediate replacement.
- Collapsed Appearance: A worn mount will look compressed or shrunken compared to a new one. You might notice the engine sitting lower on one side.
A Critical Failure
A completely failed mount can cause stress on hoses, belts, and electrical wiring. In a worst-case scenario, this could lead to a broken coolant hose and cause the engine to overheat. It's best to replace mounts at the first sign of trouble.
Choosing the Right Aftermarket Mount
When shopping for new engine mounts, you have several options. While Genuine BMW parts are available, many aftermarket brands offer excellent quality, often at a much lower price. Here’s a breakdown of available brands to help you choose:
Tier 1: OEM Quality & OEM Suppliers
These brands are known to manufacture parts for BMW directly or provide equivalent quality. They are the top choice for a factory-like ride and durability.
- Corteco: Often cited as the original equipment manufacturer (OEM) for BMW engine mounts. Choosing Corteco is essentially like buying a Genuine BMW part without the dealership price tag.
- Vaico: A well-regarded German brand that produces quality replacement parts.
Tier 2: Quality Aftermarket
These brands are trusted in the aftermarket community and offer a good balance of quality and price.
- Beck Arnley: A reputable brand that sources parts from various manufacturers, often including OEM suppliers. Quality is generally reliable.
- URO Parts: URO offers a range of parts that meet or exceed OEM specifications and can be a good budget-friendly alternative to Genuine parts. Some of their premium components are designed to be superior to the original failure-prone parts.
Tier 3: Budget-Friendly
These brands provide a functional replacement at a lower cost, but may not offer the same longevity or vibration damping as higher-tier options.
- Anchor, DEA, Westar, MTC, Pioneer Cable: These brands are common budget choices. While they will secure the engine, some owners report they don't last as long or absorb vibrations as well as OEM-quality mounts.
Pro Tip: Replace in Pairs
Always replace both engine mounts at the same time. When one mount fails, the other has been subjected to extra stress and is likely not far behind. Replacing them in pairs ensures balanced support and proper engine alignment.
Cost of Replacing BMW Z3 Engine Mounts
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Mounts (Pair) | $80 - $200 |
| Shop Labor | $162 - $238 |
| Total Estimated Cost | $242 - $438 |
Costs are estimates and may vary based on your location and the specific parts chosen.
Frequently Asked Questions
Are the left and right engine mounts the same for the Z3?
For many 1996-2002 Z3 models, particularly those with the 4-cylinder engine, the left and right engine mounts are the same part. However, it's always critical to verify the part numbers for your specific vehicle and engine (4-cylinder vs. 6-cylinder), as there can be differences. The 6-cylinder models may use a different, heavier-duty mount.
Is replacing Z3 engine mounts a DIY job?
Yes, this is a feasible DIY project for someone with moderate mechanical experience. The job requires safely jacking up the vehicle and supporting the engine from below with a hydraulic jack and a block of wood. You will need to remove the top and bottom nuts (usually 16mm) and lift the engine just enough to swap out the old mount. You must replace them one at a time.

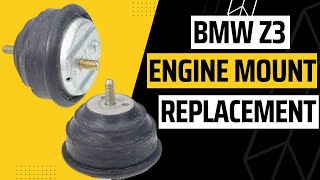

🎬 See this walkthrough for an easy engine mount replacement guide.Should I also replace my transmission mounts?
Yes, it's highly recommended. The engine and transmission mounts work together to support the drivetrain. If your engine mounts are worn, your transmission mounts have likely experienced similar wear. Replacing them at the same time is a complementary repair that will fully restore a smooth, responsive feel.

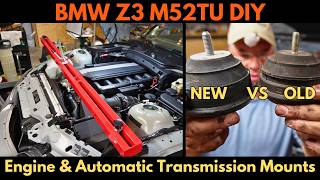

🎬 Watch: How to replace both engine and transmission mounts together.Do I need to transfer the heat shield?
Yes, the engine mount on the passenger side (right side) has a heat shield to protect it from the hot exhaust manifold. You must transfer this shield from the old mount to the new one during installation.
Are there any recalls for Z3 engine mounts?
A search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls or technical service bulletins (TSBs) for engine mount failure on the 1996-2002 BMW Z3. Failure is typically due to age and wear.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11811141377 11811137238 11811137775 11812283798
The 1996-2002 BMW Z3 uses two hydraulic, fluid-filled engine mounts. The left and right mounts are often identical for 4-cylinder models (Part No. 11811141377), while 6-cylinder models may use a different part (such as 11812283798). The passenger-side mount requires a heat shield to be transferred from the old part. Replacement requires 16mm nuts.
