Distributor Cap Replacement Guide for the 1996-2002 Chevrolet Express 3500
Keep your Vortec engine running smoothly by understanding when and how to replace this critical ignition part.
- A bad distributor cap is a common cause of misfires, rough running, and hard starts on the 1996-2002 Express 3500.
- Always replace the distributor rotor at the same time as the cap; they are sold as a kit.
- For improved durability, consider an aftermarket cap with brass terminals over the standard aluminum ones.
- If you have a P1345 trouble code, the problem is the entire distributor assembly, not just the cap.
Is Your Express Van Running Rough? It Could Be the Distributor Cap.
If you own a 1996-2002 Chevrolet Express 3500, you have a workhorse of a van. However, the distributor cap and rotor are regular wear-and-tear items on the 5.7L and 7.4L Vortec engines. When the cap cracks or the metal contacts inside wear out, it can cause a lot of confusing problems. This guide will help you understand the symptoms, choose the right replacement part, and know what the job involves.
Symptoms of a Failing Distributor Cap
A bad distributor cap prevents spark from reliably reaching the spark plugs. This can make your van run poorly or not at all. Common signs include:
- Engine Misfires: The engine may shake, sputter, or feel like it's losing power, especially under load. This is often described as a rough run condition.
- Check Engine Light: A misfire will often trigger the check engine light. You may see a code like P0300 for random misfires.
- Hard Starting: The engine cranks for a long time before it finally starts, or it might not start at all. This can be worse in cold or damp weather.
- Stalling: The engine may die unexpectedly at a stop light or while driving.
- Unusual Noises: You might hear a clicking or sputtering sound from the engine as cylinders try to fire but fail.
A Note on Moisture
The distributor on these Vortec engines is known for collecting moisture inside the cap, which can cause corrosion and misfires. Some owners report that ensuring the distributor is properly vented can help, while others apply a thin coat of sealant or dielectric grease to the cap's base to prevent moisture from getting in. If you live in a damp climate, choosing a quality cap is especially important.
Choosing the Right Aftermarket Distributor Cap
When shopping for a new distributor cap, you'll see different materials and brands. For your Express van, the choice often comes down to OEM-style parts versus performance or value-oriented options.
OEM-Quality Brands (ACDelco & Delphi):
ACDelco is the original parts brand for GM, and Delphi was a major parts supplier for them. For a daily driver or work van, choosing one of these brands is a safe bet for reliability. They are designed to meet the original factory specifications. While some of their parts may now be made overseas, they are generally held to a high-quality standard.
Performance & Premium Aftermarket (Accel & Standard Ignition):
Brands like Accel and Standard Ignition's premium lines often feature brass terminals instead of the standard aluminum. Brass is more conductive and corrosion-resistant, which can lead to a stronger, more consistent spark and a longer service life. Many mechanics and owners prefer caps with brass contacts for the Vortec engines. Accel is known for performance applications, while Standard Ignition is a well-respected aftermarket manufacturer.
Pro Tip: Always Replace the Rotor
The distributor cap and rotor work together and wear out at a similar rate. It is critical to replace the rotor every time you replace the cap. Most quality caps are sold in a kit with a new rotor. Skipping the rotor replacement can lead to continued ignition problems.
Estimated Cost for Distributor Cap Replacement
| Item | Estimated Cost |
|---|---|
| New Aftermarket Distributor Cap & Rotor Kit | $30 - $90 |
| Professional Shop Labor | $70 - $130 |
| Total Professional Replacement 🎬 Watch this breakdown of distributor cap symptoms and replacement costs. | $100 - $220 |
Frequently Asked Questions
Is replacing the distributor cap a DIY job?
Yes, this is a very feasible DIY job for someone with basic tools. Access on the Express van requires removing the engine cover ('doghouse') inside the van. The key is to be extremely careful to mark and transfer the spark plug wires one by one to the new cap to maintain the correct firing order. 🎬 See a step-by-step demonstration of replacing the cap and rotor. Mixing up the wires will cause the engine to run terribly or not at all.
What are the screws for the cap and rotor?
The distributor cap is typically held on by two T20 Torx screws. The rotor underneath is held by two T10 Torx screws. Be careful not to drop these small screws into the engine bay during removal.
Should I use dielectric grease?
Yes, it's a good practice to apply a small amount of dielectric grease to the terminals on the new cap before plugging in the spark plug wires. This helps prevent corrosion and ensures a good connection.
What's the difference between aluminum and brass terminals?
Original equipment caps often use aluminum terminals. Many premium aftermarket caps use brass, which is a better conductor of electricity and more resistant to corrosion. For the Vortec engine, many owners prefer caps with brass terminals for better longevity and performance.
My van has a P1345 code. Will a new cap fix it?
No. While a bad cap can cause misfires (P0300), the P1345 code specifically points to a problem with the camshaft position sensor or its timing correlation with the crankshaft. On these vans, the sensor is located inside the distributor assembly. A P1345 code almost always means you need to replace the entire distributor, not just the cap and rotor.

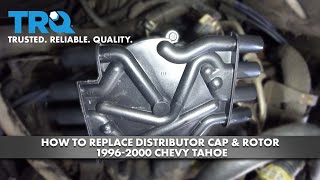

Helpful Videos
Technical Specifications
OEM Part Numbers: 10452459 D329A DR474
The distributor cap for the V8 Vortec engines has a distinct flat, crab-like shape with four spark plug wire terminals on each side and a central coil wire input. It is secured with two Torx screws.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
