A Comprehensive Guide to the 1996-2002 Chevrolet Express 3500 Engine Timing Set
Keep your Vortec V8 running strong by understanding timing chain failure and choosing the right replacement set.
- For a P1345 code, always inspect the distributor and cam retard offset before replacing the timing chain, as the distributor is a more common failure point.
- When replacing the timing set, it is best practice to also replace the water pump, timing cover gasket, and front crankshaft seal to avoid future repairs.
- Choose a high-quality aftermarket brand like Melling or Cloyes; the small extra cost is worth the added durability and correct fit.
- The original Vortec V8 engines in these vans do not use a timing chain tensioner from the factory.
Is Your Express 3500's Timing Chain Failing?
The timing chain on the 1996-2002 Express 3500's V8 engine is durable, but not invincible. As these vans age and accumulate miles, the chain can stretch. A stretched chain can cause a range of problems from annoying noises to serious engine performance issues. Recognizing the signs early can save you from a breakdown and more expensive repairs.
Common Symptoms of a Worn Timing Chain:
- Rattling Noise: The most common sign is a rattling or clattering sound coming from the front of the engine, especially noticeable at idle or on a cold start. This is the sound of the loose chain slapping against the inside of the timing cover.
- Engine Misfires or Rough Idle: A stretched chain can throw off the engine's timing, leading to misfires, a shaky idle, and poor overall performance.
- Check Engine Light: A worn timing chain can trigger the Check Engine Light. You may see codes like P0300 (Random Misfire), P0341 (Camshaft Position Sensor Performance), or the very common P1345 (Crankshaft/Camshaft Correlation Error) on these specific Vortec engines.
- Metal Shavings in Oil: During an oil change, you or your mechanic might notice tiny metal shavings in the old oil. This can be a sign that the chain and sprockets are wearing down and shedding material. 🎬 Watch: How to diagnose a worn 5.7L timing chain
- Engine Won't Start: In a severe case, the chain can jump a tooth on a sprocket or break entirely. If this happens, the engine will not start.
Warning: Check the Distributor First!
On the 1996-2002 5.7L and 7.4L Vortec engines, the distributor is a known weak point and can cause symptoms identical to a bad timing chain, especially the P1345 trouble code. The distributor gear wears out, causing a mismatch between the cam and crank signals. Before you commit to the big job of replacing the timing chain, it is critical to have the distributor and the 'Camshaft Retard Offset' checked with a proper scan tool. 🎬 See how to fix a P1345 code without a scanner This single diagnostic step can save you hundreds of dollars in unnecessary repairs.
Choosing the Right Aftermarket Timing Set
When it's time for a replacement, you'll find several quality aftermarket options. For a workhorse like the Express 3500, choosing a quality part is more important than saving a few dollars on a budget brand. Poor quality sets can have excessive slack right out of the box, defeating the purpose of the repair.
Brand Quality Tiers

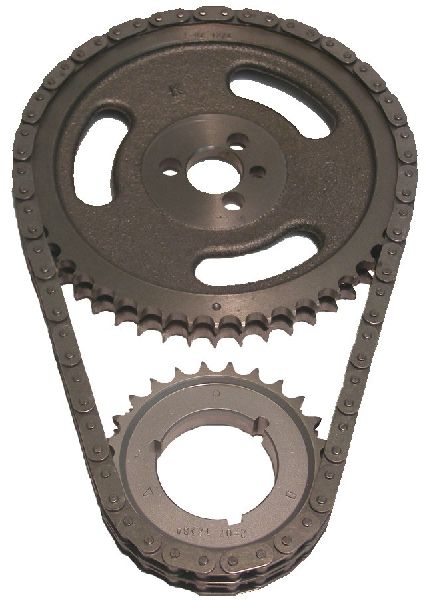

- Premium / Heavy-Duty (Recommended): Brands like Melling and Cloyes are top names in timing components and are widely trusted by professional mechanics. Their heavy-duty or performance lines (like Melling Select Performance) often feature stronger chains (such as double-roller designs) and hardened sprockets, offering maximum durability for towing and heavy use. Edelbrock also offers high-quality performance sets for these engines.

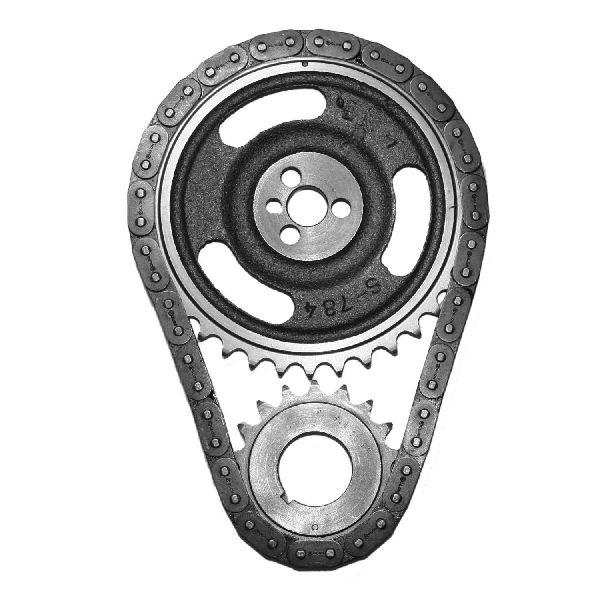

- OE-Quality Replacement: The standard lines from Melling and Cloyes are excellent choices that meet or exceed original factory specifications. INA is another well-regarded brand, known for being an original equipment supplier to many automakers. These are solid choices for daily driving and light-duty use.
Pro Tip: What Else to Replace
Since replacing the timing set requires removing the water pump and timing cover, it is highly recommended to replace the water pump, timing cover gasket, and the front crankshaft seal at the same time. This will prevent you from having to do the same labor-intensive job twice if one of those parts fails soon after.
Estimated Replacement Costs
The cost to replace the timing set can vary based on shop labor rates and the parts you choose. Note that many online cost estimators provide figures for newer, more complex engines; the cost for this generation of Express van is typically lower.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $57 - $325 |
| Shop Labor | $500 - $1,050 |
| Total Estimated Cost | $557 - $1,375 |
Frequently Asked Questions (FAQ)
Does my 1996-2002 Express 3500 have a timing belt or chain?
All gasoline and diesel engines offered in this generation of the Express 3500 use a metal timing chain, not a rubber timing belt.
Is this a DIY-friendly repair?
For an experienced DIY mechanic, this is a manageable job. It requires draining the cooling system and removing the fan, serpentine belt, water pump, harmonic balancer, and timing cover. Special tools, like a harmonic balancer puller, are required. 🎬 Watch this walkthrough for timing chain inspection and removal For beginners, this job is likely too complex and should be left to a professional.
Do I need to replace the tensioner?
The factory 5.7L and 7.4L Vortec engines in these vans did not come with a timing chain tensioner. The system relies on the initial tight fit of the chain and sprockets. Some aftermarket performance kits may include a tensioner, but it is not a standard replacement part for a stock setup.
Will a new timing chain fix my P1345 code?
It might, but it's not guaranteed. A stretched timing chain is a possible cause for a P1345 code. However, a worn distributor gear or incorrect distributor installation is a more frequent cause on these specific engines. Always diagnose the distributor first before replacing the timing chain for this code.
Helpful Videos
Technical Specifications
This guide primarily covers the timing set for the 5.7L Vortec (L31) V8 engine. The set consists of one camshaft sprocket, one crankshaft sprocket, and one single-roller style timing chain. The factory design does not include a tensioner or guides.
