Dodge Ram 3500 Camshaft Position Sensor: A Guide for 1996-2002 Models
If your Ram 3500 is stalling, starting hard, or running rough, the camshaft position sensor could be the culprit.
- Symptoms like stalling, no-start, and a rough idle are strong indicators of a failing camshaft position sensor.
- On Cummins engines, the sensor is in a very tight spot between the injection pump and power steering pump, making replacement difficult.
- For best reliability, consider an OEM (Mopar/Cummins) or a reputable, well-known aftermarket brand sensor, as cheap alternatives can fail quickly.
- If a new sensor doesn't solve the issue, inspect the wiring harness for damage, as this is another possible cause for a P0341 code.
Is Your Camshaft Position Sensor Failing?
A bad camshaft position sensor can cause a range of frustrating problems. Because the sensor's signal is so important for engine timing, a failure can make your truck run poorly or not at all. Watch for these common signs.
Common Symptoms of Failure
- Check Engine Light: This is often the first sign. You'll likely see trouble code P0341, 🎬 See how to diagnose a P0341 code on a Ram 3500. which points to a problem with the sensor's performance or signal.
- Engine Won't Start: The engine will crank over but won't fire up because the ECM doesn't have the timing information it needs to start.
- Hard Starting: You may notice the engine has to crank for much longer than usual before it finally starts.
- Sudden Stalling: The engine may cut out for no reason while you're driving or idling at a stoplight. This can be a serious safety issue.
- Rough Idle and Misfires: Your truck may shake, shudder, or run unevenly at idle.
- Poor Acceleration: A faulty sensor can cause a noticeable loss of power and sluggish performance because fuel and spark timing are not optimized.
Choosing the Right Aftermarket Sensor
When it comes to electronic sensors on the 1996-2002 Ram 3500, especially those with the Cummins engine, quality matters. While many aftermarket parts meet original specifications, owner experiences suggest that engine management sensors can be a sensitive area.
Some owners have reported that budget-friendly aftermarket camshaft sensors may fail prematurely or be dead on arrival, leading to the same symptoms returning shortly after replacement. For a critical component that can leave you stranded, it's wise to be cautious.
For best results and peace of mind, consider using a sensor from a well-known aftermarket manufacturer or an OEM part (Mopar/Cummins). While the initial cost is higher, it can prevent the headache of doing the job twice.
Camshaft Position Sensor Replacement Cost
The cost to replace the camshaft position sensor depends on the part you choose and whether you do the work yourself. The job is challenging on Cummins models due to tight access.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $45.01 |
| New OEM (Mopar/Cummins) Sensor | $75 - $150 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $145 - $350 |
Frequently Asked Questions
Where is the camshaft position sensor located?
On 1998.5-2002 Ram trucks with the 5.9L 24v Cummins engine, the sensor is notoriously difficult to access. It is on the driver's side of the engine, mounted to the timing gear case, tucked between the VP44 injection pump and the power steering pump. On gasoline V8 and V10 engines, the sensor is typically located inside the distributor.
Can I replace this sensor myself?
For a Cummins-powered truck, this is a challenging DIY job due to the sensor's location. While it can be done without removing the injection pump, it requires patience and working by feel in a tight space. 🎬 Watch: Step-by-step guide to changing the sensor on a 5.9L Cummins. You will likely need a long extension and a 5mm Allen or 10mm socket. On gas engines, the job is generally easier. If you are not comfortable working in tight spaces, it may be best to leave this job to a professional.
What if a new sensor doesn't fix the P0341 code?

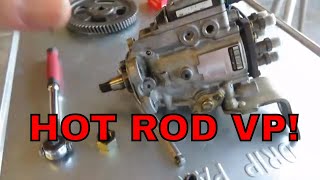

If you've replaced the sensor and the problem persists, the issue may not be the sensor itself. The P0341 code can also be triggered by a damaged wiring harness, a poor connection, or a failing VP44 injection pump on diesel models. 🎬 Watch this walkthrough for replacing both the VP44 and cam sensor. Carefully inspect the wiring and connector for any signs of damage, corrosion, or oil contamination before assuming another part has failed.
Is it the Camshaft or Crankshaft sensor?
Both sensors can cause similar issues like no-start and stalling. The crankshaft position sensor (CKP) is a more common failure point on these trucks. However, the diagnostic trouble code (DTC) will point you in the right direction. Codes in the P0340-P0349 range specifically indicate a fault in the camshaft position sensor circuit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5080577AB 5014994AA 56028133AD 56028133AE 4921597 5491993
