Ford Explorer Engine Valve Lifter Guide (1996-2002)
A ticking engine in your Explorer could be a sign of worn valve lifters; here's what you need to know before you buy.
- A rhythmic ticking noise is the primary symptom of a failing valve lifter.
- For 4.0L SOHC engines, distinguish lifter tick from the more serious timing chain rattle.
- Always replace lifters as a complete set to ensure a lasting repair.
- Brands like Melling and Sealed Power are considered reliable aftermarket choices.
Is Your Explorer's Engine Ticking? Understanding Valve Lifter Failure
A rhythmic ticking or tapping noise from the engine that gets faster as you accelerate is the most common sign of a bad valve lifter. This sound is caused by excessive space, or "lash," in the valvetrain. A lifter can fail by "collapsing" (losing its ability to hold oil pressure) or getting clogged with dirty oil or sludge. Other symptoms include a rough idle, engine misfires, and potentially a Check Engine Light. Driving for too long with a collapsed lifter can cause damage to other parts like the pushrod, rocker arm, or even the camshaft.
4.0L SOHC Owners: Lifter Tick or Timing Chain Rattle?
The 4.0L SOHC V6 engine is famous for timing chain problems, which cause a "rattling" sound. This is often confused with lifter tick. Lifter tick is typically a uniform, rhythmic "tick-tick-tick," while timing chain issues often sound like a more chaotic rattle, especially on startup. 🎬 Watch: Hear the difference between lifter tick and timing chain rattle. It's crucial to correctly diagnose the noise, as a timing chain failure is a much more severe and expensive repair.
Choosing the Right Aftermarket Lifters for Your Explorer
When replacing lifters, you don't necessarily need to buy expensive OEM parts. Several reputable aftermarket brands offer quality replacements that meet or exceed original specifications. Since this is a labor-intensive job, it's wise to invest in a quality part to avoid doing the work twice. It is highly recommended to replace all lifters at once, not just the single noisy one.
| Brand Tier | Brands | General Assessment |
|---|---|---|
| Premium / OE-Quality | Melling, Sealed Power | Both Melling and Sealed Power are well-respected American brands known for making OEM-quality valvetrain and engine components. They are often recommended by mechanics and are considered a reliable choice for a long-lasting repair. |
| Standard Aftermarket | CRP, DNJ Engine Components | DNJ is generally viewed as a budget-friendly option, offering a wide range of engine parts. While functional, they are often considered a step below the premium brands in terms of manufacturing origin and long-term durability. Always inspect parts from any brand before installation. |
| Specialty | Isky Racing Cams | Isky is a high-performance brand. Their products are designed for racing or high-power engine builds and would be overkill for a standard daily-driven Explorer. |
Pro Tip: Before installing new lifters, it's best practice to soak them in clean engine oil for at least an hour to ensure they are properly lubricated and primed. Also, consider replacing related parts like pushrods and rocker arms if they show any signs of wear, as worn components can cause noise even with new lifters.
Frequently Asked Questions
Do I have to replace all the lifters at once?
Yes. If one lifter has failed due to mileage or oil contamination, the others are likely in similar condition. Given the high labor cost to access them, replacing the full set is the most cost-effective and reliable repair strategy.
Is lifter replacement a DIY job?

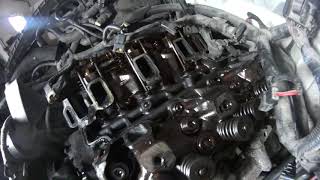

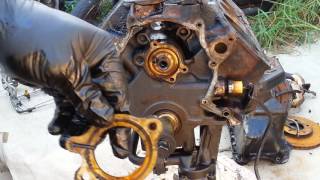

For the 5.0L V8 and 4.0L OHV engines, it's an advanced DIY job. It requires removing the intake manifold to access the lifter valley. 🎬 Watch: See a 5.0L engine teardown to access the lifters. For the 4.0L SOHC engine, replacing the lash adjusters requires removing the valve covers and camshafts, 🎬 See this walkthrough for replacing SOHC lash adjusters. which is also a complex task. If you are not comfortable with deep engine work, it's best to leave this to a professional.
What causes lifters to fail?
The most common causes are high mileage and poor oil maintenance. Infrequent oil changes can lead to sludge buildup that clogs the small oil passages inside the lifter, causing it to collapse or stick. Low oil levels can also starve the lifters of the pressure they need to function.
Are there any recalls for this issue?
No, there are no specific recalls from the NHTSA for engine valve lifter failure on the 1996-2002 Ford Explorer. There were several unrelated recalls for this vehicle generation, including for a faulty speed control deactivation switch.
Helpful Videos
Technical Specifications
OEM Part Numbers: F1DZ-6500-A F77Z-6500-AB 5L1Z-6500-A
The 1996-2002 Explorer uses hydraulic roller lifters for the 5.0L V8 and 4.0L OHV engines. The 4.0L SOHC engine uses hydraulic lash adjusters, which serve the same purpose. All are self-adjusting and require no regular maintenance.
