A Ford Explorer Owner's Guide to the Fuel Tank Pressure Sensor (1996-2002)

Is a Bad Fuel Tank Pressure Sensor Causing Your Check Engine Light?

If you own a 1996-2002 Ford Explorer, one of the most common reasons for a check engine light is a problem within the Evaporative Emission (EVAP) system. The Fuel Tank Pressure (FTP) sensor is a frequent cause. When this sensor fails, it sends incorrect voltage signals to your Explorer's computer, triggering a fault code and illuminating the light on your dashboard. While it doesn't usually cause major driving problems, it will prevent your vehicle from passing an emissions test.

Common Symptoms of Failure

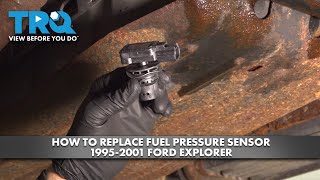

• Check Engine Light: This is the most definite sign. The sensor will trigger specific diagnostic trouble codes (DTCs), most commonly P0452 (sensor input low) or P0453 🎬 Watch: How to test and replace the sensor for these codes. (sensor input high). You may also see general EVAP codes like P0440 or P0442.
• Failed Emissions Test: Because the FTP sensor is a critical emissions component, a faulty one will cause an automatic failure on an emissions test.
• Fuel Odor: In some cases, a failing sensor can contribute to fuel vapors escaping the system, leading to a noticeable smell of gasoline around the vehicle.
• Difficulty Refueling: Less commonly, a bad sensor can interfere with the tank's ability to vent properly, causing the gas pump nozzle to click off repeatedly before the tank is full.

Choosing the Right Aftermarket Sensor

For a vehicle like the 1996-2002 Explorer, the original Motorcraft sensor may be expensive or difficult to find. Aftermarket parts offer a reliable and cost-effective solution. However, quality can vary between brands.

• Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Motor Products are well-known in the industry and engineer their parts to meet or exceed original equipment (OE) specifications for fit and performance. They are a trusted choice for mechanics and DIYers looking for a balance of quality and price.
• Value Brands (e.g., Global Parts, Replacement): These brands provide a functional part at a lower price point. While they are designed to fit and work, they may not have the same long-term durability or undergo the same level of testing as premium brands. They are a good option for budget-conscious repairs.

Installation: Is This a DIY Job?

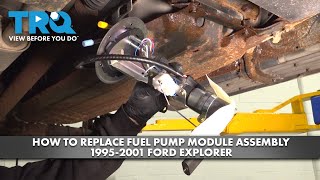

Replacing the FTP sensor on a 1996-2002 Explorer is a moderately difficult job. The sensor itself is simple to replace—it usually just twists and locks into the top of the fuel tank or fuel pump module. The challenge is getting to it. The fuel tank must be lowered to gain access. 🎬 See this walkthrough on how to replace the sensor yourself. This involves safely supporting the tank, removing skid plates and straps, and carefully lowering it enough to reach the top without stressing fuel lines or electrical connections. While feasible for an experienced DIYer with a floor jack and jack stands, it can be a time-consuming and potentially hazardous job if not done correctly.
