Ford Explorer Spark Plug Wire Set Guide for 1996-2002 Models
Everything you need to know about choosing the right spark plug wire set for your second-generation Ford Explorer.
- Always verify your engine (4.0L OHV, 4.0L SOHC, or 5.0L V8) before buying, as wire sets are engine-specific.
- Replacing wires one at a time is the best way to avoid mixing up the firing order.
- For best results, replace the spark plugs at the same time as the wires.
- Motorcraft, NGK, and Denso are highly recommended brands for reliability and fit on a 1996-2002 Explorer.
Is Your Explorer Running Rough? It Could Be the Spark Plug Wires.
If your 1996-2002 Ford Explorer is experiencing a rough idle, poor acceleration, or a drop in fuel economy, the spark plug wires could be the culprit. These wires carry thousands of volts to your spark plugs, and when they wear out, the spark becomes weak or inconsistent. This leads to an incomplete burn of fuel in the cylinders, a condition known as a misfire. You'll often feel this as a shake or stumble in the engine, and the Check Engine Light may come on.
Engine-Specific Information
The 1996-2002 Explorer came with three different engines: the 4.0L OHV V6, the 4.0L SOHC V6 (starting in 1997), and the 5.0L V8 (until 2001). Each engine requires a specific spark plug wire set. Always verify your engine type before purchasing to ensure a proper fit.
Symptoms of Failing Spark Plug Wires
- Rough Idle: The engine shakes or vibrates more than usual when stopped.
- Engine Misfires: You may feel a hesitation or stumble during acceleration.
- Check Engine Light: Misfires will trigger diagnostic trouble codes, most commonly P0300 (random misfire) or P0301-P0308, indicating a misfire in a specific cylinder.
- Poor Fuel Economy: An inefficient engine burns more fuel to produce the same amount of power.
- Difficulty Starting: A weak spark can make it harder for the engine to start, especially in cold weather.
Choosing the Right Aftermarket Spark Plug Wires
When shopping for new spark plug wires, you'll find several options. For this generation of Explorer, sticking close to the original equipment (OE) design is usually the best bet for reliability.
OEM (Motorcraft): Ford's own brand, Motorcraft, is the benchmark for quality and fit. These wires are designed specifically for your Explorer's engine, ensuring proper length, routing, and performance. Many owners and mechanics recommend sticking with Motorcraft for ignition parts on Fords to avoid compatibility issues.

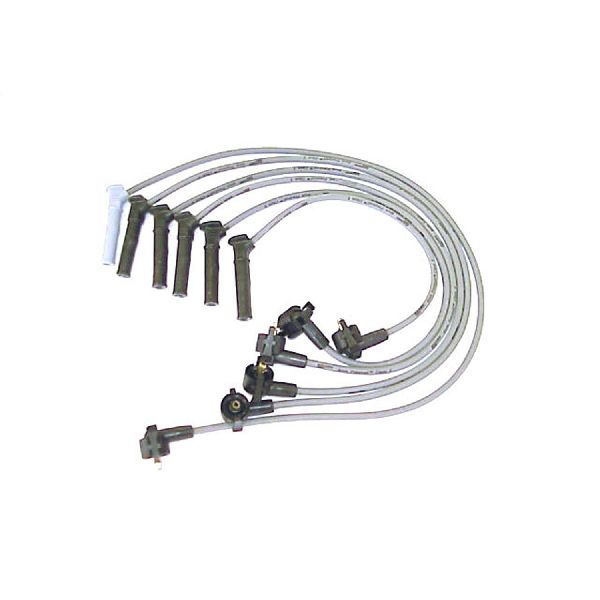

OE-Quality Aftermarket (NGK, Denso): Brands like NGK and Denso are highly respected and often manufacture original parts for many car companies. Their wire sets are an excellent alternative to Motorcraft, providing similar quality and performance. Some forum users prefer NGK over other brands, even OEM, citing their reliability.

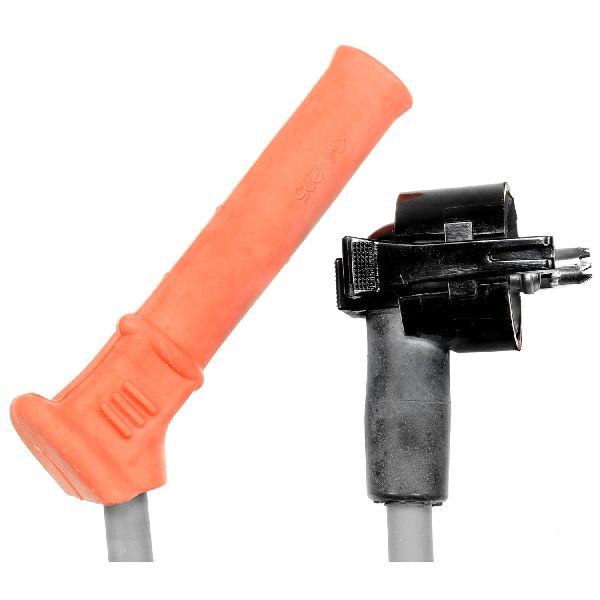

Standard Aftermarket (Standard Motor Products, Walker): These brands offer a good balance of quality and price. A wire set from Standard Motor Products (SMP) or Walker will meet or exceed original specifications and is a reliable choice for a daily driver.
Performance Brands (Accel, Taylor Cable, Granatelli): These brands focus on high-performance applications, often featuring thicker 8mm or 10mm wires with lower resistance. While they can provide a stronger spark, they are generally not necessary for a stock Explorer and may be overkill unless you have other performance modifications.
Pro Tip: Replace Plugs and Wires Together
It is highly recommended to replace your spark plugs at the same time as your spark plug wires. The new wires will deliver a stronger spark, and old, worn-out spark plugs won't be able to take full advantage of it. This ensures a complete ignition system tune-up.
What to Expect for Cost
| Part Type | Typical Price Range |
|---|---|
| New Aftermarket Wire Set | $40 - $156 |
| New OEM (Motorcraft) Wire Set | $60 - $180 |
| Shop Labor for Installation | $98 - $143 |
Known Issues, Recalls, and TSBs
Searches for recalls and Technical Service Bulletins (TSBs) related specifically to spark plug wires on the 1996-2002 Ford Explorer did not yield any results. There are no active recalls for this part. One NHTSA complaint from 2003 mentioned spark plug wires burning through on a 2000 Explorer, but this appears to be an isolated incident and not a widespread, recognized defect. A general TSB (05-22-8) was issued for many Ford models, including the 2002-2005 Explorer, providing diagnostic tips for engine misfires related to the coil-on-plug system, but it does not apply to the wire sets on these earlier models.
Frequently Asked Questions
How difficult is it to replace spark plug wires on a 1996-2002 Explorer?
This is a very DIY-friendly job with a difficulty rating of 1 out of 5. The key is to replace the wires one at a time to avoid mixing up the firing order. Access to the spark plugs on the passenger side, especially on the V6 models, can be tight. Some owners find it easier to access them by removing the front passenger wheel and an inner fender panel.
Do I need special tools to replace my spark plug wires?
No special tools are required. A spark plug wire puller can make it easier to remove the boots from the spark plugs without damaging them, but they can usually be removed by hand with a twisting motion. Applying a small amount of dielectric grease to the inside of the new boots will make installation easier and help seal out moisture.
How do I know which wire goes where?
The best method is to replace one wire at a time. Remove one old wire, match its length to a new wire from the box, and install the new wire. This prevents any confusion about the firing order. Aftermarket sets often come with wires of different lengths that correspond to the original routing.
Should I buy OEM Motorcraft wires or are aftermarket ones okay?
For this specific vehicle, both Motorcraft and high-quality aftermarket brands like NGK and Denso are excellent choices. Many owners prefer to stick with Motorcraft for Ford ignition parts to guarantee compatibility. However, reputable aftermarket brands offer comparable performance and are a perfectly acceptable alternative.
Technical Specifications
OEM Part Numbers: WR-4112
Spark plug wires for the 1996-2002 Ford Explorer are specific to the engine type (4.0L OHV V6, 4.0L SOHC V6, 5.0L V8). They consist of a set of wires (6 for V6, 8 for V8) with boots at each end to connect the ignition coil pack to the spark plugs. Quality wires feature silicone jackets for heat resistance and RFI suppression to prevent radio interference.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
