Ignition Switch for 1996-2002 Jeep Cherokee: A Complete Guide
Having trouble starting your XJ? This guide covers common ignition switch problems and how to choose the right replacement.
- The primary symptom is a 'no-crank, no-start' condition where accessories still have power.
- Before replacing the switch, rule out simpler issues like the Neutral Safety Switch (NSS), battery, and starter relay.
- The ignition switch is a separate part from the lock cylinder; you will reuse your keys.
- For reliability, choose an OEM (Mopar) or a premium aftermarket brand like Standard Ignition for this electronic part.
Is Your Ignition Switch Failing? Common Symptoms
A bad ignition switch in a 1996-2002 Jeep Cherokee can be tricky to diagnose because its symptoms often mimic other common XJ problems, like a faulty Neutral Safety Switch (NSS) or starter. The most frequent sign is a no-crank, no-start situation where you have power to your lights and radio, but the engine won't turn over.
- Engine won't crank: You turn the key, the dash lights come on, but you hear nothing from the starter—not even a click.
- Intermittent starting: The Jeep starts fine one day but refuses to crank the next. Sometimes, jiggling the key or trying multiple times may eventually get it to start.
- Stalling while driving: The engine may suddenly shut off while you are driving. The gauges might drop to zero and then come back. This is a serious safety issue.
- Accessories don't work correctly: The key is in the 'ON' or 'ACC' position, but the radio, power windows, or heater blower won't turn on.
- Key feels weird or won't turn: While this can also be the lock cylinder or actuator pin, a failing switch can sometimes cause binding or a lack of spring-back from the 'START' position.
Pro Tip: Rule Out Other Issues First
Before blaming the ignition switch, check these common XJ culprits:
- Neutral Safety Switch (NSS): Try starting the Jeep in Neutral instead of Park. If it starts, your NSS is likely the problem, not the ignition switch. 🎬 Watch this video to help diagnose if it's the NSS or ignition switch.
- Battery and Terminals: Ensure your battery is charged and the terminals are clean and tight. Poor connections can prevent the starter from getting enough power.
- Starter Relay: You can swap the starter relay in the Power Distribution Center (under the hood) with a similar relay (like the one for the A/C) to see if the problem resolves.
Choosing the Right Aftermarket Ignition Switch
For many electronic parts on the XJ Cherokee, Jeep enthusiasts often prefer sticking with Mopar (OEM) parts due to their proven reliability. However, with these vehicles aging, OEM parts can be hard to find or expensive. High-quality aftermarket brands offer a reliable alternative, while budget-friendly options can be a gamble.
Brand Quality Tiers
- Tier 1: Premium Aftermarket (Standard Ignition): Standard Motor Products (SMP) has a strong reputation in the Jeep community for producing reliable electronic components that meet or exceed OEM specifications. If an OEM part isn't an option, this is often considered the next best choice for critical parts like an ignition switch.
- Tier 2: OE-Style Aftermarket (Omix-Ada, Rostra Powertrain): Omix-Ada is one of the largest suppliers of Jeep parts and offers a direct-fit replacement. However, community feedback on their electronic parts is mixed; some users have had success, while others report quality issues and prefer other brands for electronics. There is limited owner feedback available for Rostra Powertrain ignition switches for this specific vehicle.
- Tier 3: Economy (Replacement): These are often generic or store-brand parts. While they are the most affordable, their quality and lifespan can be inconsistent. They may be a suitable short-term fix, but for a critical component that can leave you stranded, investing in a higher-tier brand is recommended.
A Note on Recalls and TSBs
There have been no safety recalls or Technical Service Bulletins (TSBs) issued by the NHTSA for the ignition switch on the 1996-2002 Jeep Cherokee XJ. A well-known recall for ignition switches on Grand Cherokees does NOT apply to this model.
Replacement Cost
Replacing the ignition switch is a manageable DIY job for those comfortable working under the dashboard. The part itself is moderately priced.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Ignition Switch | $56 - $115 |
| New OEM (Mopar) Ignition Switch | $120 - $185+ |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I need to replace my key or lock cylinder too?
No. The ignition switch is a separate electrical part. You will reuse your existing key and lock cylinder. 🎬 Watch how to replace the lock cylinder if your key won't turn. However, be aware that the small metal actuator pin that connects the lock cylinder to the switch is a common failure point and can cause identical symptoms. It's often recommended to inspect or replace this pin at the same time.
Is this a difficult part to replace myself?
For a DIY mechanic, this is a fairly straightforward job. It involves removing the plastic trim below the steering column to gain access. The most difficult part is often working in the tight space. The difficulty is about a 2 out of 5.
🎬 See this step-by-step walkthrough for replacing the switch and actuator pin.Will a new ignition switch fix my Jeep stalling?
It might. A failing ignition switch can cut power to the engine and cause stalling. However, stalling in an XJ is more frequently caused by a bad Crankshaft Position Sensor (CPS), so you should investigate that possibility as well.
What's the difference between an ignition switch and a Neutral Safety Switch (NSS)?
The ignition switch tells the car you've turned the key. The NSS confirms the transmission is in Park or Neutral before allowing the starter to engage. If your Jeep starts in Neutral but not Park, the NSS is the likely culprit.
Helpful Videos

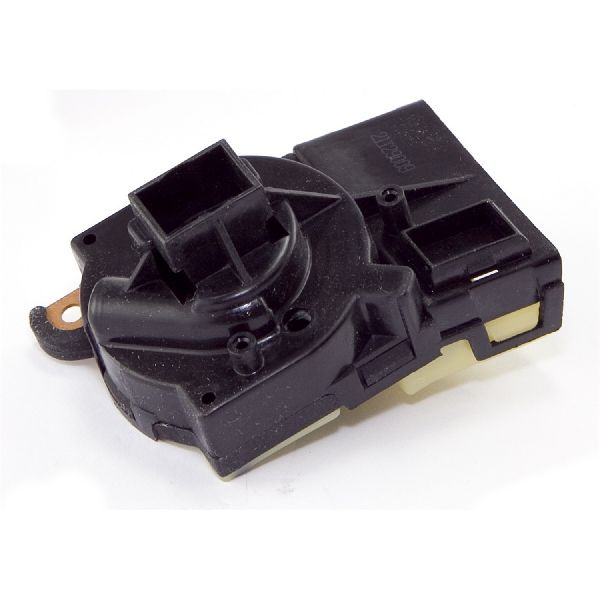

Technical Specifications
OEM Part Numbers: 04565326 4685719AB
Mounts to the steering column. Activated by the lock cylinder and actuator rod. Typically has a 7-pin rectangular electrical connector.
