A Guide to Replacing the Catalytic Converter on a 1996-2002 Mazda 626
Everything you need to know before buying a new aftermarket catalytic converter for your Mazda 626.
- You must diagnose and fix the root cause of failure (e.g., engine misfire, bad O2 sensor) before installing a new converter.
- Check the emissions sticker under your hood to determine if you need a Federal (EPA) or more expensive CARB-compliant part.
- A direct-fit converter is highly recommended for DIY installation to avoid cutting and welding.
- Ignoring a clogged converter can lead to severe power loss and potential engine damage.
Is Your Mazda 626 Catalytic Converter Failing?
If your Check Engine Light is on and you have a P0420 error code, your catalytic converter is likely not working efficiently. Other signs of failure include a noticeable loss of engine power, a rattling sound from under the car, or a smell like rotten eggs from the exhaust. A failing converter can get clogged, which restricts exhaust flow and can cause serious engine performance issues or even damage if ignored.
Find the Root Cause First!
Catalytic converters rarely fail on their own. Their failure is almost always a symptom of another problem. Before you spend money on a new converter, you must find and fix the original issue, or the new converter will fail quickly. Common causes include:
- Engine Misfires: Bad spark plugs or ignition coils can send unburnt fuel into the exhaust, which superheats and melts the inside of the converter.
- Faulty Oxygen Sensors: Bad O2 sensors can send incorrect fuel mixture readings to the engine's computer, leading to a contaminated converter. Sometimes, the sensor itself is the only part that needs replacing.
- Exhaust Leaks: Leaks in the exhaust manifold or pipes ahead of the converter can throw off sensor readings and trigger a P0420 code.
- Engine Issues: Burning oil or coolant can leak into the exhaust and coat the converter's internal structure, making it useless.
Choosing the Right Aftermarket Converter for Your 626
Your 1996-2002 Mazda 626 came with either a 2.0L 4-cylinder or a 2.5L V6 engine, and the catalytic converter configuration can be different. Some models may have more than one converter (a front/manifold converter and a rear one). It is essential to identify your vehicle's specific setup before buying.
Direct-Fit vs. Universal Converters

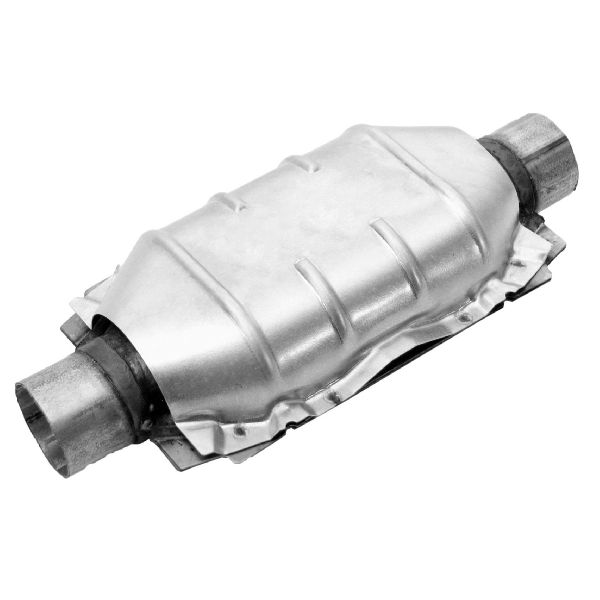

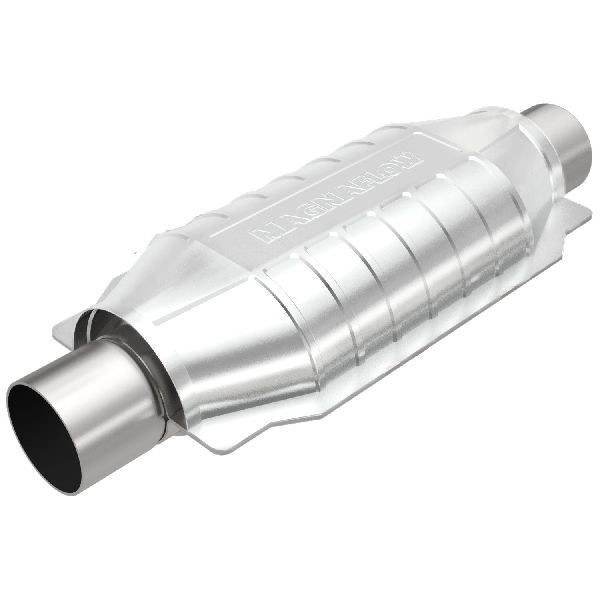

Direct-fit converters are designed to be a bolt-on replacement for the original part, with no cutting or welding required. This makes them the best choice for a DIY installation. Brands like MagnaFlow, Walker, Dorman, and Eastern Catalytic offer direct-fit options.
Universal converters are cheaper but are not designed for a specific vehicle. They require cutting the old converter out of the exhaust pipe and welding the new one in place. This is a job best left to a professional exhaust shop.
Federal/EPA vs. CARB-Compliant: Which One Do You Need?
This is the most important decision you will make. Installing the wrong type is illegal in some states and can cause you to fail an emissions test.
- Federal (EPA) Converters: These are legal in most states. They are less expensive than CARB-compliant converters.
- CARB-Compliant Converters: If you live in California, Colorado, New York, or Maine, you will likely need a CARB-compliant converter to be legal. These are built to a higher standard with more precious metals to meet stricter emissions rules and are less likely to cause a check engine light to return. Brands like MagnaFlow and Eastern Catalytic offer CARB-approved parts.
Estimated Replacement Costs
The cost to replace a catalytic converter on a 1996-2002 Mazda 626 can vary widely based on the part you choose and who does the work.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Converter (Part Only) | $74 - $1,077 |
| New OEM Converter (Part Only) | $2,400 - $2,900+ |
| Shop Labor | $150 - $350 |
Frequently Asked Questions
Why did my new aftermarket converter fail or trigger a P0420 code?
This usually happens for one of two reasons. First, the original problem that caused the first converter to fail (like an engine misfire or bad O2 sensor) was not fixed. Second, some cheaper aftermarket converters don't have enough precious metals to work as efficiently as the original, and your car's computer is sensitive enough to detect this and turn on the check engine light. Choosing a quality brand or a CARB-compliant converter (even if not required by your state) can sometimes solve this issue.
Do I need a CARB-compliant converter?
If you live in California, Colorado, New York, or Maine, you most likely do. For all other states, a Federal/EPA-compliant converter is acceptable. Always check your under-hood emissions sticker to be sure if your car was originally built to California standards, regardless of where it is registered now.
Can I just replace the oxygen sensor instead of the converter?
Sometimes, but not always. A faulty oxygen sensor can cause a P0420 code. It is a common diagnostic step to test the oxygen sensors before condemning the converter. If the sensor is bad, replacing it is a much cheaper fix. However, if the converter is truly clogged, melted, or contaminated, replacing the sensor will not solve the problem.
Is there a recall on the Mazda 626 catalytic converter?
No, there are no known recalls or technical service bulletins (TSBs) from Mazda or the NHTSA for catalytic converter issues on the 1996-2002 Mazda 626.
Technical Specifications
Configurations vary between 2.0L 4-cylinder and 2.5L V6 engines. Some models may have front (manifold) and rear converters. Check if your vehicle requires a Federal (EPA) or CARB-compliant part based on its emissions sticker.
