A Guide to the Throttle Position Sensor for 1996-2002 Toyota 4Runner
Understand the symptoms of a failing throttle position sensor and how to choose the right aftermarket replacement for your 3rd Gen 4Runner.
- Symptoms of a bad TPS often mimic transmission problems, such as poor shifting.
- For reliability, OEM (Denso/Aisan) or high-quality aftermarket sensors are strongly recommended over budget parts.
- Replacement is simple (two screws), but proper adjustment with a multimeter is crucial for correct performance.
- 2001-2002 models may have a different 4-wire sensor that is harder to source individually than the 3-wire version on earlier models.
Symptoms of a Failing Throttle Position Sensor
A bad or failing TPS on a 1996-2002 4Runner can cause a variety of issues that might be confused with other problems, like a bad transmission or a dirty mass airflow sensor. If you notice any of the following, your TPS might be the culprit.
🎬 Watch a breakdown of common faulty throttle position sensor symptoms.- Hesitation or Stumbling on Acceleration: The engine may hesitate or feel like it's losing power when you press the gas pedal.
- Poor or Erratic Shifting: The automatic transmission may shift at the wrong times, either too early or too late. This is because the ECU uses the TPS signal to help control shift points.
- Sudden Surges or Power Loss: You might experience the vehicle suddenly speeding up or losing power while driving at a steady speed.
- Rough or High Idle: The engine may idle roughly, or the idle speed might be unusually high.
- Check Engine Light: A failing TPS will often trigger a Check Engine Light. Common trouble codes include P0120 and P0121.
A Note on 2001-2002 Models
Later models in this generation (specifically some 2001-2002 4Runners) came with a more complex drive-by-wire system. These models use a 4-wire TPS that is often considered part of the complete throttle body assembly by Toyota. While the 3-wire sensor for 1996-2000 models is widely available, finding a separate 4-wire sensor can be more difficult, though some aftermarket options exist. Always verify your vehicle's specific configuration before ordering.

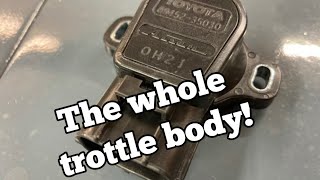

🎬 See how to replace the 4-pin TPS on later models.Choosing the Right Aftermarket TPS: Quality Matters
When it comes to electronic sensors on Toyota vehicles, quality is extremely important. While many budget-friendly aftermarket options are available, owner and mechanic feedback strongly suggests that using a high-quality part is crucial to avoid ongoing issues. Low-quality sensors can fail prematurely or provide inaccurate readings, leading you right back to the same problems.
Pro Tip: Many experienced 4Runner owners and mechanics recommend using an OEM (Original Equipment Manufacturer) sensor, which is made by Denso or Aisan. If an OEM part is not in your budget, consider higher-tier aftermarket brands known for quality control, such as NGK, Beck Arnley, or Walker Products. Cheaper, unbranded parts have a higher risk of being unreliable.
Estimated Cost for Throttle Position Sensor Replacement
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket TPS | $25 - $86 |
| New OEM TPS | $70 - $151 |
| Shop Labor | $73 - $107 |
| Total Professional Replacement | $158 - $193 |
Frequently Asked Questions
Is replacing the TPS a good DIY job?
Yes, for most 1996-2002 4Runners, this is a very DIY-friendly job. The sensor is typically held on by two screws and has one electrical connector. It is easily accessible on the throttle body. The entire job can often be done in under 30 minutes with a simple Phillips head screwdriver.
Do I need to adjust or calibrate the new TPS?
Yes, proper adjustment is key. The screw holes on the sensor are slotted, allowing for slight rotation. This adjustment ensures the ECU gets the correct voltage reading at idle and wide-open throttle. While some people install it without adjustment, using a multimeter to set the sensor to the factory specifications is the correct way to ensure optimal performance. 🎬 Learn how to test and adjust your sensor using a multimeter. Incorrect adjustment can cause idle and shifting problems.
Are there any recalls for the TPS on this 4Runner?
No, there are no specific recalls for the throttle position sensor on the 1996-2002 Toyota 4Runner. The National Highway Traffic Safety Administration (NHTSA) has investigated Toyota's electronic throttle control systems in general, but no specific recall was issued for this component on this vehicle.
Can I just clean my old TPS?
No, the TPS is a sealed electronic sensor. The failure is usually internal wear on the electrical contacts, not dirt. While you should clean your throttle body and Idle Air Control (IAC) valve, cleaning the TPS itself will not fix a faulty sensor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89452-35020 89452-35030
Fits 1996-2002 Toyota 4Runner with 2.7L (3RZ-FE) or 3.4L (5VZ-FE) engines. Most models use a 3-prong male terminal connector. Some 2001-2002 models use a 4-prong connector. Verify your specific part before ordering.
