Toyota RAV4 Horn Not Working? A Guide for 1996-2002 Models
If your first-generation RAV4 horn sounds weak or doesn't work at all, this guide will help you find the right fix.
- Always check the 10A fuse and the horn relay before assuming the horn itself has failed.
- The 1996-2002 RAV4 uses a dual-horn system; a weak sound usually means one of the two has failed.
- Replacement requires accessing the area behind the front bumper, which is a manageable DIY job.
- For reliability, choose a quality aftermarket brand like Standard Ignition (SMP) or ACDelco.
Is Your RAV4 Horn Failing? Common Symptoms
A horn problem on a 1996-2002 RAV4 doesn't always mean the horn itself is broken. The issue can be in several parts of the electrical circuit. Before you buy a new horn, it's important to know the signs and what they might mean.
- Completely Silent Horn: When you press the horn button and hear nothing, the problem could be a blown fuse, a bad horn relay, or a break in the wiring.
- Weak or "Sick" Sound: If your horn sounds quiet or has a strange, low pitch, it often means one of the two horns has failed or its wiring is broken. Your RAV4 needs both the high and low-tone horns 🎬 Watch: How to troubleshoot and repair a weak RAV4 horn to sound correct.
- Buzzing Noise: A buzzing sound when you press the horn button can point to a poor electrical connection or a horn that is about to fail completely.
- Horn Works Intermittently: If the horn sometimes works and sometimes doesn't, this usually points to a loose wire, a failing relay, or a problem in the steering wheel's horn switch or clock spring.
First, Check the Fuse and Relay
The most common and cheapest fixes are not the horn itself. Always check the 10-amp horn fuse in the fuse box inside the cabin first. You can also try swapping the horn relay (located on the back of the same fuse box) with a similar relay from another system to see if that solves the problem. This simple check can save you time and money.

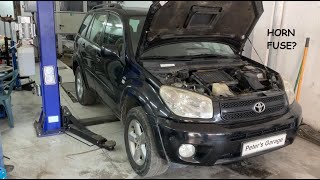

🎬 See this video to find your horn fuse and relayChoosing the Right Aftermarket Horn
If you've confirmed the horn itself is the problem, you have several good aftermarket options. Since your RAV4 uses a high and low-tone system, it's often best to replace them as a pair to ensure a proper sound. Aftermarket horns are typically direct-fit and plug into the factory wiring harness.
Brand Quality Tiers
- Good (Value Tier): The "Replacement" brand offers a budget-friendly option. These are generic parts that will get the job done, but their long-term durability may not match that of more established brands. They are a practical choice if cost is your main concern.
- Better (Reputable Aftermarket): ACDelco is a well-known brand that offers quality parts. Their "Professional" series parts are a reliable choice for a daily driver and offer a good balance of price and quality, even for a Toyota.
- Best (Specialist Aftermarket): Standard Ignition (SMP) is highly regarded for electrical components. They have a strong reputation for making parts that meet or exceed OEM quality. For a critical safety part like a horn, choosing a brand like Standard Ignition ensures reliability and a long service life.
Cost to Replace a 1996-2002 RAV4 Horn
| Part Type | Estimated Cost |
|---|---|
| New OEM Horn (Single) | $80 - $130 |
| New Aftermarket Horn (Single or Set) | $36.29 - $77.37 |
| Shop Labor | $100 - $200 |
Pro Tip: The horns are located behind the front bumper. While some owners access them by removing the top radiator cover, most replacement videos show partial or full bumper removal is necessary for easy access. This adds to the labor time if you have a shop do the work.
Frequently Asked Questions
Do I need to replace both horns at once?
It is highly recommended. The high and low-tone horns are designed to work together. If you only replace one, the sound may be incorrect. Also, if one has failed due to age, the other is likely not far behind.
Is it the horn or the clock spring?
The clock spring is a part in the steering column that allows the steering wheel buttons to stay connected while the wheel turns. If your horn stopped working and your airbag light came on at the same time, the clock spring is the most likely culprit. 🎬 Watch: How to replace a faulty clock spring yourself If only the horn is failing, the problem is more likely the fuse, relay, or the horn itself.
Can I install a new horn myself?
Yes, this is a feasible DIY project for many owners. You will need basic hand tools like sockets and screwdrivers to remove the plastic clips and bolts holding the bumper cover. Always test the new horn before you put the bumper back on completely.
Are there any recalls for the horn on my RAV4?
No, there are no active recalls from Toyota or NHTSA for the horn system on the 1996-2002 Toyota RAV4.
Helpful Videos
Technical Specifications
OEM Part Numbers: 86510-42030 86520-42040 86520-42020 86510-20280
System Type: Dual Horn (High and Low Pitch Tones)
