Volkswagen Beetle Ignition Coil Guide for 1996-2002 Models
Learn to spot a failing ignition coil in your Beetle and choose the right replacement part before a small issue becomes a big one.
- First, identify your engine: 2.0L engines use one coil pack with wires, while 1.8T engines use four individual coil-on-plugs.
- For maximum reliability, choose premium aftermarket brands that are also OEM suppliers, such as Bosch, Beru, or NGK.
- Always replace spark plugs when you replace your ignition coils to prevent premature failure of the new parts.
- Do not drive for long with a misfire; it can cause expensive damage to your catalytic converter.
Is Your Beetle's Ignition Coil Failing?
Ignition coil failure is a common issue on this generation of VW Beetle, often caused by age and constant exposure to engine heat. When a coil starts to go bad, it can't deliver the strong, consistent spark your engine needs. This can lead to a variety of noticeable problems.
Common symptoms include a rough or vibrating idle, engine hesitation or sputtering when you accelerate, and a noticeable loss of power. You might also experience difficulty starting the engine, especially on cold mornings. If the problem is ignored, a misfiring cylinder can dump unburned fuel into the exhaust, which can lead to a smell of gasoline, black smoke, and potentially catastrophic damage to your expensive catalytic converter. In most cases, a failing ignition coil will trigger the Check Engine Light on your dashboard.
Choosing the Right Aftermarket Coil: Not All Are Created Equal
Before you buy, you must know which engine your Beetle has. The 2.0L engine uses a single coil pack, while the 1.8T engine uses four individual coil-on-plug coils. They are not interchangeable. For this specific vehicle, the quality of aftermarket parts varies significantly. It's generally best to stick with brands known for being Original Equipment Manufacturers (OEM) for Volkswagen.
- Premium Brands (OEM Quality): Brands like Bosch, Beru, and NGK are often the original suppliers to Volkswagen. Choosing one of these is the safest bet for reliability and performance that matches the factory part. Many owners and mechanics stand by these brands for their longevity.
- Mid-Grade Brands: Delphi, Hella, and Standard Ignition (SMP) are reputable aftermarket manufacturers that offer a good balance of quality and price. They are a solid choice if a premium OEM brand isn't in the budget.
- Economy Brands: Brands like URO Parts, DriveWire, and other unbranded options are the most affordable. While tempting, be aware that forum discussions often suggest these parts have a higher failure rate. They might solve the problem in the short term, but you may find yourself replacing them again sooner than you'd like.
A Note on 1.8T Coils
Early 1.8T engines (around 2001 and earlier) sometimes used a bolt-down, 3-pin style coil. Later models used a push-in, 4-pin style. It is critical to visually inspect your current coils before ordering to ensure you get the correct replacements. Also, on the 1.8T, if one coil fails, it's a good practice to replace all four at the same time, 🎬 See how to replace 1.8T coils and spark plugs yourself. as the others are likely of the same age and condition and may fail soon.
Expected Replacement Costs
The cost to replace your ignition coil(s) depends heavily on your engine type and whether you do the job yourself. The replacement is considered easy for both engine types and can be done with basic hand tools.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Coil(s) | $31 - $219 |
| New OEM Coil(s) | $80 - $300+ |
| Shop Labor | $75 - $150 |
Frequently Asked Questions
Was there an ignition coil recall for my 1996-2002 Beetle?
No, there were no specific, large-scale recalls for ignition coils on the 1996-2002 VW Beetle according to NHTSA data. However, ignition coil failures were a well-known problem on many VW and Audi vehicles from this era, and some later models did have recalls or extended warranty programs.
Should I replace my spark plugs at the same time?
Yes, it is highly recommended. Worn spark plugs can put extra strain on the new ignition coil, potentially causing it to fail prematurely. Since you already have access to them during the coil replacement, changing the spark plugs is a smart and cost-effective move for long-term reliability.
For my 2.0L engine, should I also replace the spark plug wires?
Yes. The coil pack on the 2.0L engine relies on spark plug wires to deliver the spark. These wires degrade over time, and their insulation can crack, causing the spark to arc to the engine instead of reaching the plug. If the wires are original or look cracked and brittle, replace them with the coil pack as a set.
🎬 Watch this complete 2.0L tune-up including coils, plugs, and wires.Can I replace just one coil on my 1.8T engine?
You can, but it's not the best practice. The coils are all the same age and have been exposed to the same heat and electrical cycles. If one has failed, the others are often not far behind. Replacing all four at once provides peace of mind and ensures consistent ignition performance across all cylinders.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06A905097A 06A905115D 032905106E 06B905115R 06A905097 07K905715G

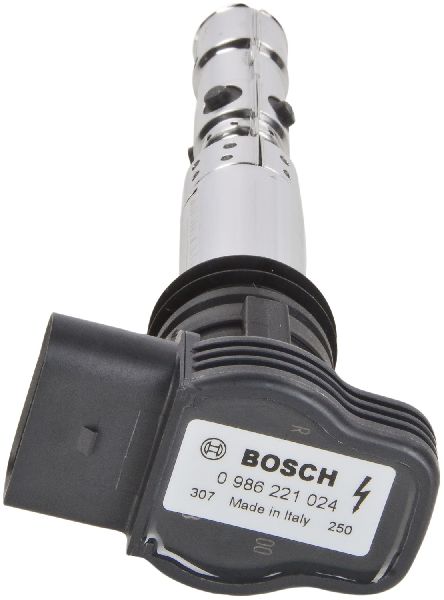

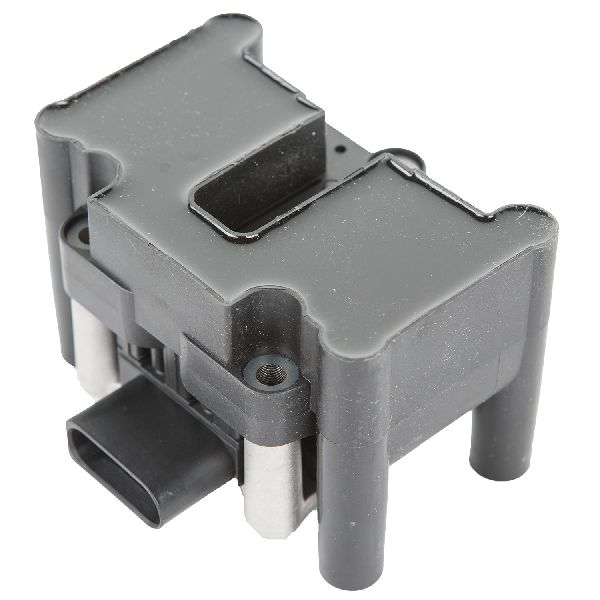

Varies by engine. 2.0L engines use a single, 4-terminal distributorless coil pack. 1.8T engines use four individual coil-on-plug units, which can be either a 3-pin bolt-down style or a 4-pin push-in style.
