A Guide to Replacing the Fuel Injector on a 1996-2003 Chevrolet Express 2500
Understand the common 'spider' injector problems in your Vortec engine and how to choose the right replacement part.
- The original 'spider' injector (CSFI) is a known failure point; upgrading to the Multi-Port Fuel Injection (MPFI) style is the best solution.
- Choose a top-tier brand like ACDelco or Delphi for the highest reliability; Standard Ignition is a solid second choice.
- Symptoms like rough idle, misfire codes (P0300), and hard starting strongly point to a failing injector assembly.
- Always replace the upper intake manifold gaskets when replacing the injector assembly to prevent future vacuum leaks.
The 'Spider' Injector: A Common Failure Point
If you own a 1996-2003 Express 2500 with a Vortec engine, the most important part to understand is the fuel injector assembly, known as the 'spider'. The original design, called Central Sequential Fuel Injection (CSFI), uses poppet valves to spray fuel. These valves are known to get clogged with carbon deposits over time because they sit close to the heat of the combustion chamber. This clogging is a very common reason for engine problems.
The CSFI to MPFI Upgrade
General Motors later released an updated fuel injector assembly that solves the original design flaw. This new design is a Multi-Port Fuel Injection (MPFI) unit. It replaces the troublesome poppet valves with small, modern electronic injectors at the end of each tube. These injectors are recessed away from the heat, which prevents carbon buildup. This MPFI unit is a direct-fit replacement for the old CSFI spider and is considered a necessary upgrade for reliability, a smoother idle, and better throttle response. When shopping for a replacement, choosing the upgraded MPFI style is highly recommended.
🎬 See this walkthrough of the SCPI to MPFI upgradeSymptoms of a Failing Fuel Injector Assembly
A failing spider injector can cause a variety of noticeable problems. You might experience one or more of the following:
- Rough Idle: The engine may shake or run unevenly when stopped.
- Engine Misfires: You may feel a stutter or hesitation during acceleration. This often triggers a Check Engine Light with codes like P0300 (Random Misfire) or P0301-P0308 for specific cylinders.
- Hard Starting: The engine may take longer than usual to start, or you might have to crank it several times. This can be caused by leaking injectors flooding the engine.
- Poor Fuel Economy: A noticeable drop in your van's gas mileage is a common sign.
- Loss of Power: The van may feel sluggish and less responsive to the throttle.
- Smell of Fuel: In severe cases, a leaking injector hose or stuck-open valve can create a strong gasoline smell under the hood. 🎬 Watch: How to identify a failing Vortec spider injector
Choosing the Right Aftermarket Fuel Injector
When replacing the fuel injector assembly, the brand you choose matters. Not all aftermarket parts are created equal, especially for a critical component like this.
Brand Quality Tiers
- Tier 1: OEM / Premium Aftermarket (ACDelco, Delphi)
ACDelco is GM's official parts brand, and Delphi was the original equipment manufacturer for many of these parts. The upgraded MPFI spider is a Delphi design. Choosing either of these brands ensures you are getting a part that meets or exceeds factory specifications. They are the most recommended and reliable choices. - Tier 2: Reputable Aftermarket (Standard Ignition)
Standard Motor Products (brand name Standard Ignition) is a well-known aftermarket manufacturer with a reputation for producing quality components. Some forum users have noted that Standard's MPFI spider assembly appears to be a re-boxed Delphi unit, potentially offering OEM quality at a better price. It is generally considered a safe and reliable alternative to OEM. - Tier 3: Budget / Remanufactured (GBR Fuel Injection)
GBR specializes in remanufacturing fuel injectors. While this is the most budget-friendly option, it comes with risks. There are reports of these injectors failing out of the box or getting stuck open, which can flood a cylinder with fuel and potentially cause serious engine damage. While some users have had positive experiences, the rate of failure is a concern, making it a gamble.
| Part | Estimated Cost (Part Only) |
|---|---|
| New OEM (ACDelco/Delphi MPFI Upgrade) | $300 - $790 |
| New Aftermarket (Standard MPFI Upgrade) | $250 - $500 |
| Remanufactured (GBR, etc.) | $150 - $300 |
Pro Tip: Replace Gaskets at the Same Time
Since you have to remove the upper intake manifold (plenum) to access the injector assembly, it is essential to replace the plenum gaskets at the same time to prevent vacuum leaks. It's a good practice to buy a kit that includes these gaskets.
Frequently Asked Questions (FAQ)
What is a 'spider' fuel injector?
It's the nickname for the Central Sequential Fuel Injection (CSFI) unit used in 1996-2003 Vortec engines. It's a single assembly located under the intake manifold that has a central fuel metering body with eight flexible tubes that run to each cylinder port.
Should I upgrade to the MPFI-style injector assembly?
Yes, absolutely. The upgraded Multi-Port Fuel Injection (MPFI) design is far more reliable than the original CSFI unit. It solves the carbon-clogging issue and provides better performance and smoother operation. It is a direct-fit part with no modifications needed.
Can I replace just one bad poppet valve or tube?
While it is technically possible to replace individual components of the spider assembly, it is not recommended. The labor to access the unit is the same, and other poppet valves are likely to fail soon after. Replacing the entire assembly with the upgraded MPFI unit is the correct and most cost-effective long-term repair.
Is this a difficult job to do myself?
For a moderately experienced DIY mechanic, this job is very achievable. It requires removing the upper intake plenum, which involves disconnecting several sensors, fuel lines, and bolts. The key is to be organized and to ensure no dirt or old gasket material falls into the engine. The job typically takes 2-4 hours.

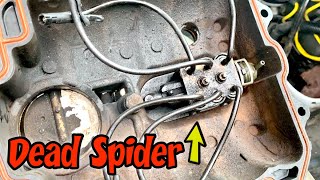

🎬 Watch: Step-by-step removal and installation guide for Express vansHelpful Videos
Technical Specifications
OEM Part Numbers: 12574927 217-1563
This vehicle uses a Central Sequential Fuel Injection (CSFI) 'Spider' assembly. The recommended replacement is the upgraded Multi-Port Fuel Injection (MPFI) style assembly.
