Engine Water Pump Guide for 1996-2003 Chevrolet Express 3500
Keep your Express 3500's engine from overheating by understanding when and how to replace your water pump.
- A coolant leak from the front-center of the engine is the most common sign of a failing water pump.
- Do not drive if the engine is overheating, as this can cause catastrophic engine damage.
- For 6.5L Diesel models, upgrading to a later-style, balanced-flow water pump is highly recommended for improved cooling.
- While replacing the pump, also inspect the fan clutch, hoses, and serpentine belt, and consider replacing them at the same time.
Is Your Water Pump Failing?
A bad water pump on a 1996-2003 Chevrolet Express 3500 will give you clear warning signs. Ignoring them can lead to a seized engine. Be aware of these common symptoms.
- Coolant Leaks: This is the most common sign. You may see puddles of green or orange fluid under the front-center of your van. A slow leak might leave a white or colored trail of dried coolant residue on the front of the engine. The leak often comes from a special "weep hole" on the pump, which is designed to leak when the internal seal fails.
- Engine Overheating: If your temperature gauge climbs into the red, the water pump may not be circulating coolant. Steam or smoke coming from the radiator area is a critical sign of overheating. Pull over immediately if this happens to prevent major engine damage.
- Grinding or Whining Noises: A high-pitched whining or a low-pitched grinding sound coming from the front of the engine can signal a failing water pump. This noise is caused by a worn-out bearing that supports the pump's shaft. The sound often changes with engine speed.
Known Issues for This Vehicle
No specific recalls or widespread Technical Service Bulletins (TSBs) have been issued by GM or the NHTSA for water pump failure on the 1996-2003 Chevrolet Express 3500. However, owners of the 6.5L Diesel engine should pay special attention. Early versions of this engine had water pumps that provided unbalanced coolant flow, sending more coolant to the driver's side of the engine. When replacing the pump on a 6.5L diesel, it is highly recommended to upgrade to a later-style (2000+) pump design that offers higher volume and more balanced flow for better cooling, especially if you tow or haul heavy loads.
Choosing the Right Aftermarket Water Pump
With dozens of aftermarket options, choosing a replacement can be confusing. Not all brands are created equal. Here is a breakdown of the available brands based on owner feedback and general reputation.
Aftermarket Brand Quality Tiers
| Tier | Brands | Summary |
|---|---|---|
| Tier 1: OEM & Premium Aftermarket | ACDelco (GM Genuine), Melling | ACDelco is the original equipment manufacturer and is generally the safest bet for fit and function. Melling, traditionally known for oil pumps, has a strong reputation for quality components in their newer water pump line, though some users have reported early failures. |
| Tier 2: Reputable Aftermarket | Gates, Dayco | Gates and Dayco are well-known brands, often considered OEM suppliers for belts and other components. Their water pumps are a common choice, but some owners report mixed results on longevity, with some experiencing premature failures. ACDelco's lower-priced "Professional" line is often believed to be a re-boxed Gates pump. |
| Tier 3: Economy & Mixed Reviews | GMB, US Motor Works, Proform | These brands offer a more budget-friendly option. GMB is a large manufacturer with some OE contracts, but forum discussions show mixed reviews, with some reporting early seal failures. US Motor Works has received complaints about casting and fitment issues. Proform is primarily focused on high-performance and electric pumps, and quality for standard replacements can be inconsistent. |
How Much Does a New Water Pump Cost?
The total cost depends on the parts you choose and who does the work. The job is more difficult on these vans than on a pickup truck with the same engine due to tighter access. Labor costs can vary significantly based on your engine (5.7L V8 vs 6.5L Diesel) and local shop rates.
Estimated Cost for Water Pump Replacement
| Item | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $73 - $295 |
| New OEM (ACDelco/GM) Water Pump | $265 - $460 |
| Shop Labor | $350 - $550 |
| Total Estimated Cost (Aftermarket Part + Labor) | $423 - $845 |
Pro Tip: While replacing the water pump, it is a smart and cost-effective move to also replace the thermostat, radiator hoses, and serpentine belt if they are old. The cooling system will be drained for the job, making it the perfect time to replace these related wear items for a small additional cost.
Frequently Asked Questions
How difficult is it to replace the water pump on a '96-'03 Express 3500?
For a DIY mechanic, this job is moderately difficult. Access is tight due to the van's engine cover ("doghouse") design. It requires removing the fan shroud, fan clutch, and serpentine belt. Special tools may be needed to remove the fan clutch. If you are not comfortable with draining the cooling system and working in a tight space, it's best to leave this job to a professional. The 6.5L Diesel is generally more complex than the gas V8s.
Should I use a gasket sealer on the new water pump gaskets?
This is a topic of debate. Many new gaskets are high-quality, rubber-coated metal and are designed to be installed clean and dry. However, some mechanics prefer to use a very thin layer of gasket sealant or adhesive to hold the gaskets in place during installation to prevent them from slipping, which can cause a leak. If you use a sealer, ensure it is sensor-safe and use it sparingly.
Do I need to replace my fan clutch with the water pump?
You don't have to, but it's a good idea to inspect it. Since you have to remove the fan clutch to get to the water pump, it's the perfect time to check it. With the engine off and cold, try to spin the fan. It should have some resistance. If it spins freely with no resistance or is seized and won't turn at all, it has failed and should be replaced.
What type of coolant should I use in my Express 3500?
For this generation of Chevrolet Express, you should use a conventional green coolant or the orange-colored DEX-COOL long-life coolant, depending on what your vehicle was originally filled with. Check your owner's manual or the label on your coolant reservoir. It is critical not to mix coolant types. When replacing the water pump, it's best to completely flush the system and refill with new, distilled water and the proper coolant type.
Technical Specifications
OEM Part Numbers: 89060527 12532528 89017748 88926225

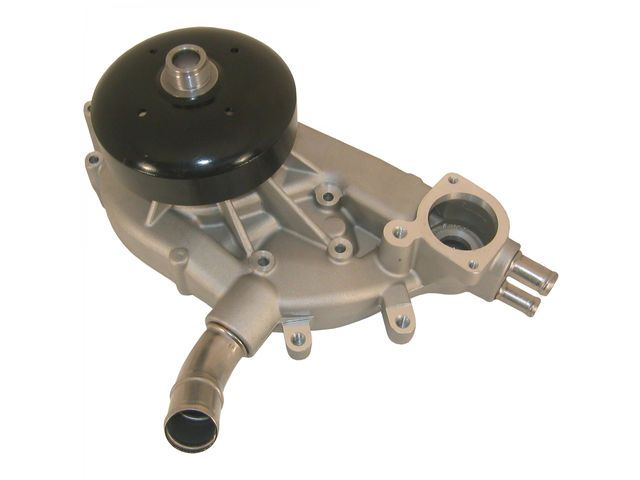

The water pump for the 1996-2003 Chevrolet Express 3500 is a mechanical, serpentine belt-driven unit. It features an aluminum housing and typically a stamped steel or cast iron impeller. The specific design varies between the gasoline V8 engines (5.7L, 7.4L) and the 6.5L V8 diesel engine.
