Chevrolet Express 3500 (1996-2003) Power Steering Pump Replacement Guide
Keep your heavy-duty van turning smoothly by understanding common power steering pump issues and how to choose the right replacement.
- A failing pump on an Express 3500 can affect both steering and braking due to the Hydroboost system.
- Whining noise is the number one symptom of a bad power steering pump; do not ignore it.
- Always flush the system and consider replacing the reservoir and hoses to protect your new pump.
- You will need a special pulley puller/installer tool for this job, which can be rented from auto parts stores.
Understanding Power Steering Pump Failure in Your Express 3500
The power steering pump is essential for safely maneuvering your 1996-2003 Chevrolet Express 3500. Given the vehicle's size and weight, a loss of power steering assist can make driving extremely difficult and dangerous. Failures often begin with subtle signs before becoming critical problems.
Common Symptoms of a Failing Pump
- Whining or Groaning Noises: A loud whining sound that gets louder when you turn the steering wheel is the most common symptom. 🎬 Listen to what a failing pump sounds like here. This is often caused by low fluid levels from a leak or air getting into the system.
- Stiff or Heavy Steering: If turning the wheel suddenly requires a lot of muscle, especially at low speeds, the pump is likely not producing enough pressure.
- Fluid Leaks: You may notice puddles of reddish or brownish fluid under the front of your van. Leaks can come from the pump itself, the reservoir, or the connecting hoses.
- Loss of Power Brakes: Because the pump often powers the Hydroboost brake system, a complete pump failure can lead to a sudden loss of power brake assist, making it very hard to stop the van.
Safety Warning: Loss of Steering and Brakes
A complete failure of the power steering pump can lead to a sudden loss of both power steering and power brake assist. This makes the vehicle incredibly difficult to control and stop. If you experience symptoms, address them immediately to avoid a dangerous situation.
Choosing the Right Aftermarket Power Steering Pump
When replacing the power steering pump, you have several options. While OEM parts from Chevrolet are available, the aftermarket offers a wide range of quality parts at different price points. For a vehicle in the 1996-2003 year range, a new aftermarket pump is often a cost-effective and reliable choice.
Aftermarket Brand Tiers
Not all aftermarket brands are created equal. They generally fall into a few categories:
- Premium New Aftermarket (e.g., PWR, some AAE): These brands aim to meet or exceed original equipment (OE) specifications. They are 100% new parts, not remanufactured, and often come with the best warranties. They are a solid choice for owners who plan to keep their van for a long time.
- Remanufactured (e.g., Cardone, BBB Industries): These are original parts that have been rebuilt with new seals, bearings, and other wear items. Quality can be inconsistent, with some users reporting success while others experience premature failures. They are a budget-friendly option, but it's crucial to ensure the remanufacturing process is thorough.
- Used OEM: A pump from a salvage yard can be the cheapest option, but it's a gamble. You don't know its history, and it may fail sooner rather than later.
Pro Tip: Flush the System and Replace Hoses
When you replace the pump, it is critical to flush the entire power steering system to remove old, contaminated fluid and any metal shavings from the old pump. Failure to do so can cause your new pump to fail quickly and may void its warranty. It is also a great time to inspect and replace old, brittle power steering hoses.
Estimated Replacement Costs
The cost to replace a power steering pump varies based on the parts you choose and whether you do the work yourself or hire a professional.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $440 - $700+ |
| New Aftermarket Part | $80 - $325 |
| Remanufactured Part | $75 - $200 |
| Shop Labor | $200 - $400 |
| Total Professional Job (Aftermarket) | $280 - $725 |
Frequently Asked Questions (FAQ)
Do I need a special tool to replace the power steering pump?
Yes, you will need a special power steering pulley puller/installer tool. The pulley must be removed from the old pump and pressed onto the new one. These tool kits can be rented from most auto parts stores.
Should I replace the reservoir with the pump?
Yes, it is highly recommended. The reservoir contains a filter screen that can become clogged with debris from the old pump. A clogged screen can starve the new pump of fluid, leading to premature failure. Many new and remanufactured pumps come with a reservoir already installed.
My new pump is whining. What did I do wrong?
A whining noise after installation is almost always caused by air trapped in the system. You need to bleed the system by raising the front wheels off the ground and turning the steering wheel from lock to lock several times with the engine off, checking and topping off the fluid level as you go. Then, repeat the process with the engine running until the noise disappears.
🎬 See the correct way to bleed air from the system.Are there any recalls for the power steering pump on my van?
Searches of the NHTSA database did not show any specific power steering pump recalls for the 1996-2003 Chevrolet Express 3500. However, owners have reported issues like broken pump shafts to the NHTSA.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84996212 15135009 15270799 15766348 26065829 26069070 88963503

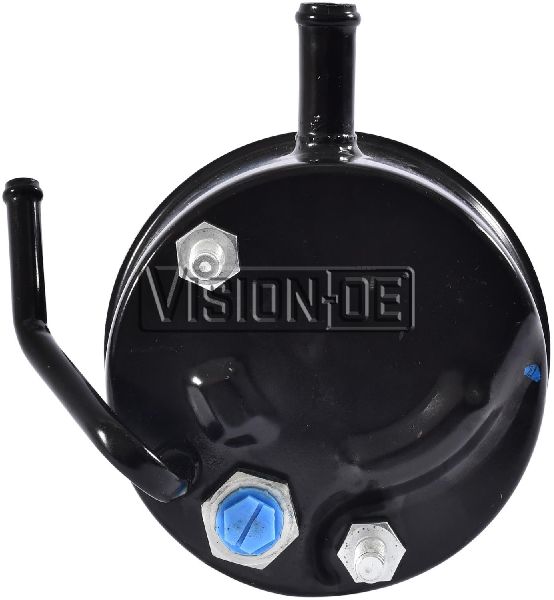

Belt-driven hydraulic pump, often with integrated or separate fluid reservoir. Must be compatible with Hydroboost brake systems. Pulley is typically a press-fit and must be transferred from the old unit or replaced.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
