Ford Explorer Engine Valve Cover Gasket Guide (1996-2003)
Stop annoying oil leaks on your 1996-2003 Ford Explorer by choosing the right valve cover gasket set.
- A burning oil smell is the most common symptom of a failed valve cover gasket.
- For the 4.0L SOHC engine, the intake manifold must be removed to access the valve covers, making the job more complex.
- Choose a quality aftermarket brand like Fel-Pro or Victor Reinz for a durable, long-lasting seal.
- Always replace the bolt grommets and spark plug tube seals if they are included with your gasket set.
Is Your Explorer Leaking Oil?
If you own a 1996 to 2003 Ford Explorer, chances are you've seen an oil stain on your driveway or smelled burning oil. A leaking valve cover gasket is a very common issue on these trucks, especially for the 4.0L SOHC V6 engine. The original gaskets get hard from engine heat and stop sealing properly. This allows oil to seep out, making a mess and potentially causing other problems.
Symptoms of a Failing Gasket
The signs of a bad valve cover gasket are usually easy to spot. The most common symptom is a burning oil smell, which happens when oil drips onto the hot exhaust manifold. You may also see oil residue or grime built up on the valve covers themselves. If the leak is bad enough, you might notice your engine oil level is low between changes or even see oil puddles under your truck. In some cases, oil can leak into the spark plug tubes, causing the engine to run rough or misfire.
Choosing the Right Aftermarket Gasket Set
You don't need to go to the dealer for this part. Aftermarket gaskets often use better materials than the originals and can provide a more durable seal. When shopping, you'll find gaskets made from different materials like cork-rubber or modern molded silicone rubber. For these Explorers, a high-quality molded rubber gasket is the best choice for a long-lasting repair.
Aftermarket Brand Tiers
- Premium Brands (Fel-Pro, Victor Reinz): Fel-Pro is a top name in the aftermarket and is highly recommended by mechanics. Their PermaDryPlus gaskets are made from high-quality silicone rubber designed to handle imperfect surfaces and high heat. Victor Reinz is another excellent choice, often considered an OEM-equivalent brand, known for its quality and good fit.
- Performance Brands (Cometic, Edelbrock): Brands like Cometic and Edelbrock are known for performance applications. While they make quality products, they might be overkill for a daily-driven Explorer unless you have a modified engine.
- Standard/Economy Brands (Apex, Trans-dapt): These brands offer a more budget-friendly option. While they can work, they may not have the same longevity or perfect fit as the premium brands. For a critical seal like this, spending a little more on a premium gasket is often worth it to avoid doing the job twice.
Cost to Replace Ford Explorer Valve Cover Gaskets
| Part Type | Price Range |
|---|---|
| New Aftermarket Gasket Set | $17 - $95 |
| Shop Labor Cost | $329 - $656 |
| Total Professional Replacement | $382 - $735+ |
Frequently Asked Questions
Do I need to use sealant with the new gaskets?
In most cases, you only need to apply a small dab of RTV silicone sealant at the corners or joints where the timing cover meets the cylinder head. The new rubber gaskets are designed to seal on their own. Always follow the specific instructions included with your gasket set.
Is this a difficult job to do myself?
For a DIYer with some experience, this is a manageable job. The 5.0L V8 and 4.0L OHV engines are more straightforward. The 4.0L SOHC engine is more complex because the upper intake manifold must be removed 🎬 See how to remove the intake and valve cover gaskets properly. to access the valve covers. Plan for several hours and be sure to have a torque wrench to tighten the bolts to the correct specification (usually around 89 in-lbs) to avoid crushing 🎬 Watch a step-by-step guide for replacing gaskets on the 4.0L SOHC. the new gasket.
Should I replace the valve covers too?
It's usually not necessary unless the original covers are cracked or warped. Plastic valve covers can become brittle with age. Inspect them carefully when you have them off. If you see any cracks, it's best to replace them.
What's the difference between the 4.0L OHV and 4.0L SOHC engine gaskets?
The engines are very different, and their valve cover gaskets are not interchangeable. The OHV (Overhead Valve) engine was used in earlier models (1996), while the SOHC (Single Overhead Cam) was used from 1997-2003. Always confirm your engine type before ordering parts.

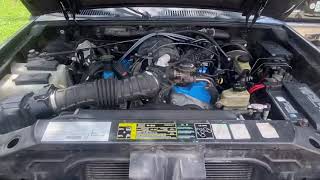

Helpful Videos
Technical Specifications
OEM Part Numbers: F77Z-6584-AE
Material: Molded Rubber or Cork/Rubber. Set includes main gaskets, spark plug tube seals, and bolt grommets depending on the kit and application (4.0L OHV, 4.0L SOHC, 5.0L V8).
