A Practical Guide to the Engine Water Pump for the 1996-2003 Mazda Protege
Keep your Protege's engine running cool and learn why this part is critical to replace with your timing belt.
- Always replace the water pump at the same time as the timing belt to save hundreds on labor.
- Buy a complete timing belt kit that includes the water pump, belt, tensioner, and idler for the best value.
- A coolant leak or a high-pitched whining noise are the two earliest warnings of a failing pump.
- The engines are non-interference, so a broken belt won't destroy the engine, but it will leave you stranded.
Is Your Mazda Protege Water Pump Failing?
A water pump doesn't usually fail without warning. For the 1996-2003 Mazda Protege, there are a few key signs that point to a failing pump. Catching these symptoms early can save you from a breakdown and a much bigger repair bill.
Common Symptoms of Failure
- Coolant Leaks: This is the most common sign. You may see puddles of green, pink, or orange fluid under the front-center of your car. A slow leak might also leave a crusty, white or colored residue on the engine near the pump. The leak comes from a special "weep hole" designed to show when the internal seal is wearing out. 🎬 Watch: See these common water pump failure symptoms in action.
- Whining or Grinding Noises: A high-pitched whining sound coming from the engine that changes with speed is a classic sign of a bad water pump. This noise is caused by a worn-out bearing inside the pump.
- Engine Overheating: If your temperature gauge climbs into the red, your water pump may have stopped working. If you see steam coming from under the hood, pull over immediately and turn off the engine to prevent catastrophic damage.
- Wobbly Pulley: If you can safely inspect the pump (with the engine off), check the pulley that the belt rides on. If it feels loose or wobbly, the bearing is gone and the pump needs immediate replacement.
The Most Important Tip: Replace with the Timing Belt
On all engines available in the 1996-2003 Mazda Protege (1.5L, 1.6L, 1.8L, and 2.0L), the water pump is driven by the timing belt. The labor to access the timing belt is the most expensive part of the job. Since you have to remove the timing belt to get to the water pump, it is critical to replace them both at the same time. Replacing just the belt and having the old pump fail a few months later means paying for the same expensive labor all over again.
🎬 See this walkthrough for replacing the timing belt and pump.Choosing the Right Aftermarket Water Pump
You don't need to buy the original Mazda part to get good quality. Many aftermarket brands offer excellent performance, often at a much lower price. The best value is usually found in a complete timing belt kit that includes a new water pump, belt, tensioner, and idler pulleys.
Brand Quality Tiers
- Premium Aftermarket (Good): Brands like Gates and Dayco are well-known and offer complete timing belt kits that are popular with both DIYers and professional shops. They provide a good balance of quality and cost.

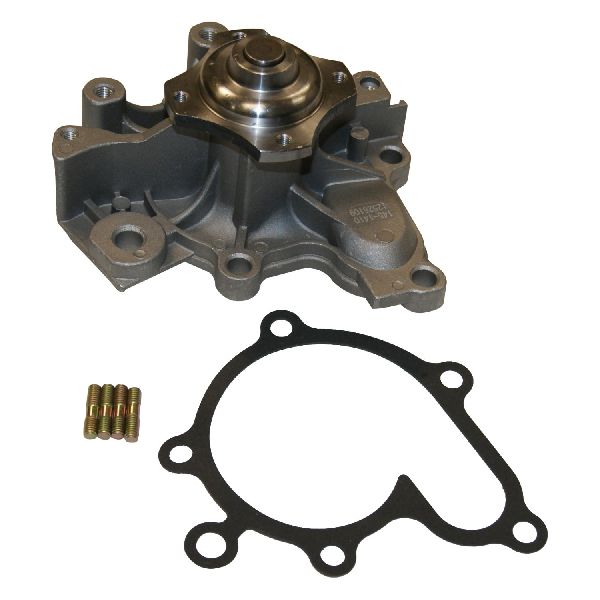

- OEM Supplier (Better): GMB is a respected brand that is known to be an original equipment manufacturer for some car companies. Choosing a GMB pump, either alone or in a kit, is a solid choice for reliability.
- Budget-Friendly (Use with Caution): Brands like Airtex or US Motor Works are typically more affordable. While they can be a good option for a tight budget, some professional mechanics prefer to stick with brands that have a longer track record for durability, especially for a labor-intensive job like this one.
Pro Tip: The engines in this generation of Mazda Protege are non-interference engines. This means if the timing belt breaks, the engine's internal parts will not smash into each other. You'll be stranded, but you won't face a destroyed engine. This provides some peace of mind but doesn't change the recommendation to replace the belt and pump on schedule.
Cost to Replace a Mazda Protege Water Pump
The cost is mostly labor because the pump is hard to get to. The estimates below reflect replacing the water pump as part of a full timing belt service.
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket Water Pump Only | $38 - $89 |
| Aftermarket Timing Belt Kit with Water Pump | $80 - $200 |
| Shop Labor | $420 - $620 |
| Total Professional Job | $770 - $1,000+ |
Frequently Asked Questions
Do I need to replace anything else with the water pump?
Yes. Because the water pump is driven by the timing belt, you should always replace the timing belt, the belt tensioner, and the idler pulley at the same time. It's also a good idea to replace the thermostat and flush the cooling system.
How often should the water pump be replaced?
You should replace the water pump whenever you replace the timing belt. The original Mazda maintenance schedule recommends replacing the timing belt at 105,000 miles. However, due to the age of these vehicles, many mechanics recommend replacement every 7 years or 90,000 miles, whichever comes first.
Is there a recall on the water pump for my Protege?
No, there have been no safety recalls issued by the NHTSA for the water pump on any 1996-2003 Mazda Protege.
Can I do this job myself?
Yes, if you are an experienced DIY mechanic. The job requires removing an engine mount, belts, and timing covers. The most critical part is setting the engine timing correctly when installing the new belt. If you are not comfortable with this, it is a job best left to a professional mechanic.

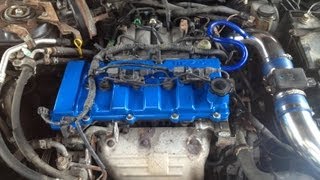

🎬 Watch: A complete guide to timing and replacing your pump.Helpful Videos

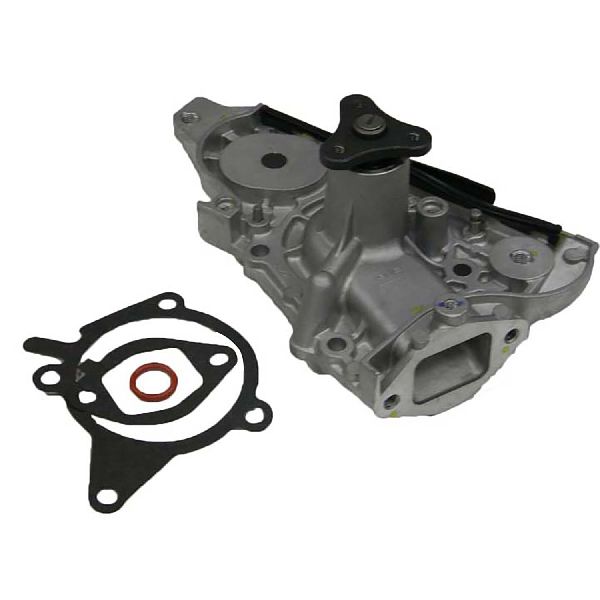

Technical Specifications
OEM Part Numbers: 8AG9-15-010 B660-15-010R-ME

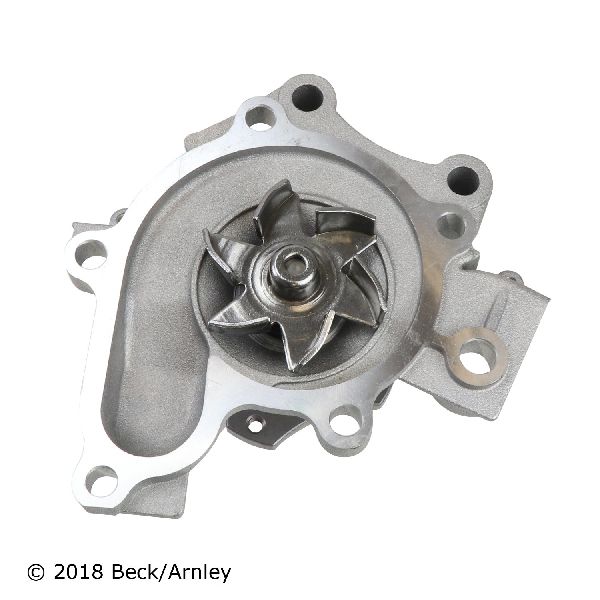

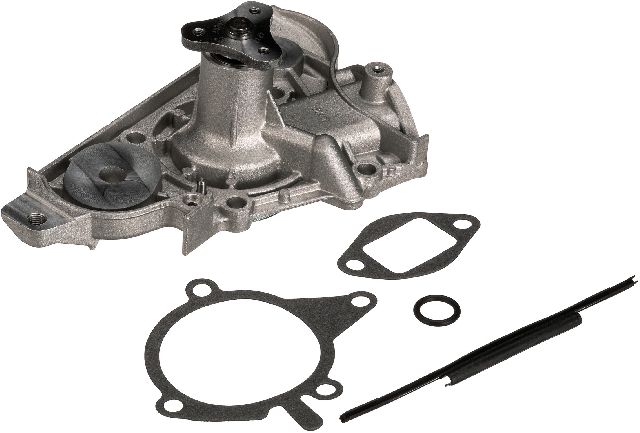

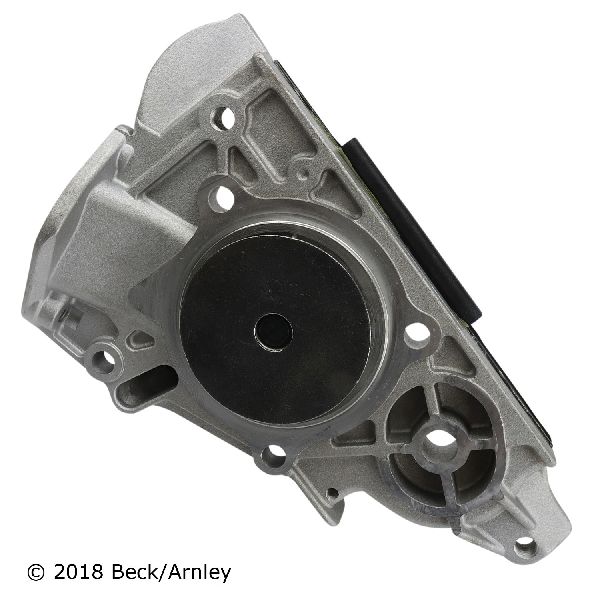

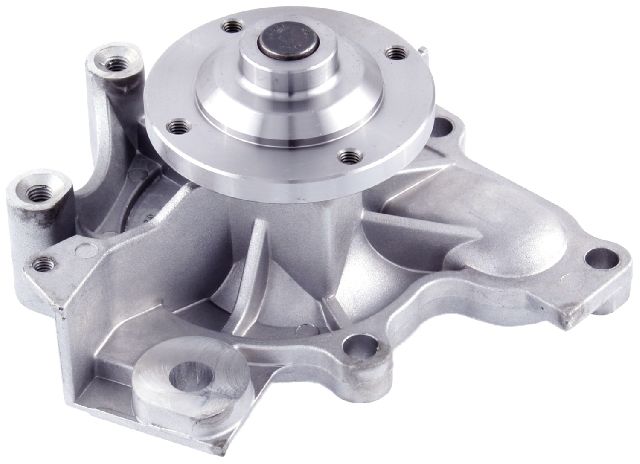

The water pump is driven by the engine's timing belt. It features an aluminum housing and impeller. The correct pump will vary based on your specific engine (1.6L, 1.8L, or 2.0L), so confirm fitment before ordering.
