A Guide to Spark Plug Wire Sets for the 1996-2003 Subaru Legacy
Keep your Legacy's boxer engine running smoothly with the right set of spark plug wires.
- Failing spark plug wires cause common issues like rough idle, misfires, and a check engine light with codes P0301-P0304.
- For a 1996-2003 Legacy, aftermarket brands like NGK and Denso offer OEM-quality performance and are highly recommended.
- Replacing spark plug wires is a manageable DIY task that requires basic tools and about an hour of time.
- Always replace spark plugs at the same time as the wires and use dielectric grease on the boots for a proper installation.
Signs of Failing Spark Plug Wires on Your Legacy
Worn-out spark plug wires can't deliver the proper voltage to the spark plugs. This can cause a range of issues. If you notice any of these symptoms, your wires might be the culprit.
- Rough Idle: The engine may shake or vibrate more than usual when the car is stopped.
- Engine Misfires: You might feel a hesitation or stumble during acceleration. A check engine light often comes with this.
- Poor Fuel Economy: When your engine isn't burning fuel efficiently, you'll find yourself at the gas station more often.
- Check Engine Light: Misfire codes like P0301, P0302, P0303, or P0304 are common when wires fail. These codes point to misfires in specific cylinders.
- Visible Damage: Look for cracks, burns, or white spots on the wires and boots. Oil or coolant leaks can also damage the wires, so fix any leaks before replacing them.
Choosing the Right Aftermarket Spark Plug Wires
For the 1996-2003 Subaru Legacy, you have several good aftermarket options. While a genuine Subaru wire set is a safe bet, many aftermarket brands offer similar or even better quality for less money. Here’s a breakdown of available brands:
Tier 1: OEM Quality or Better

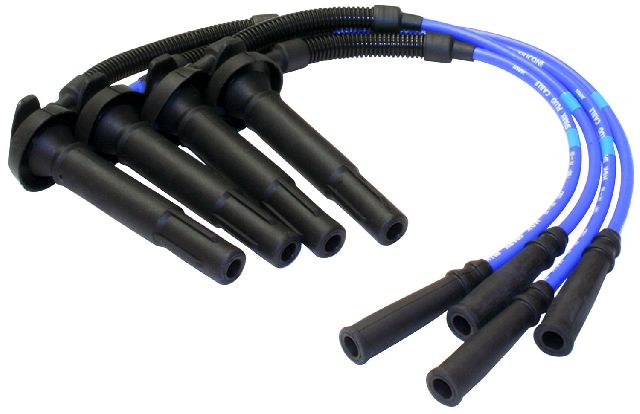

- NGK: NGK is a highly respected brand in the Subaru community. They are often considered an original equipment equivalent and are known for their excellent fit and durability. Their wires feature a high-temperature silicone jacket to resist heat.

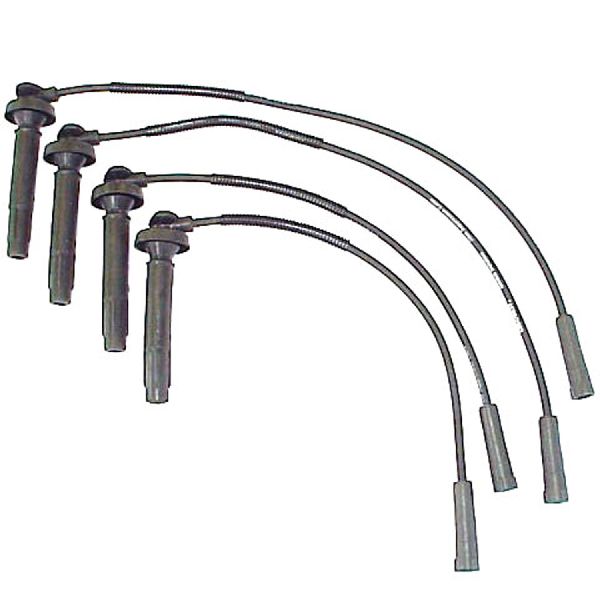

- Denso: Denso is another top-tier brand that supplies original parts to many automakers. Their wires are built to OEM specifications, ensuring a reliable fit and performance.
Tier 2: Solid Aftermarket Choices

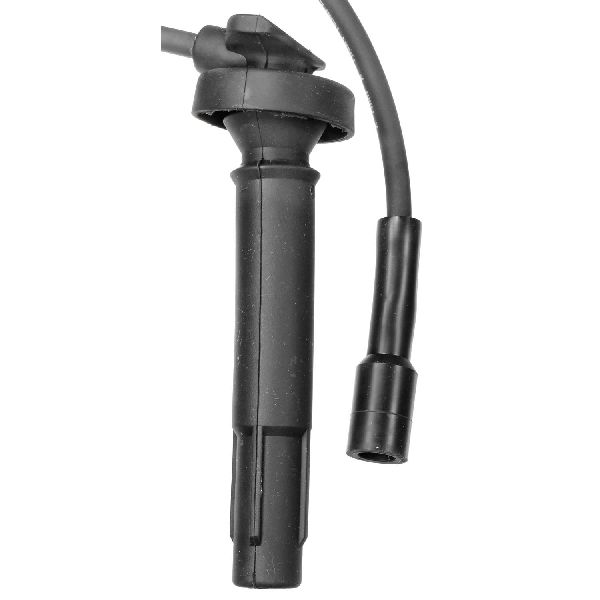

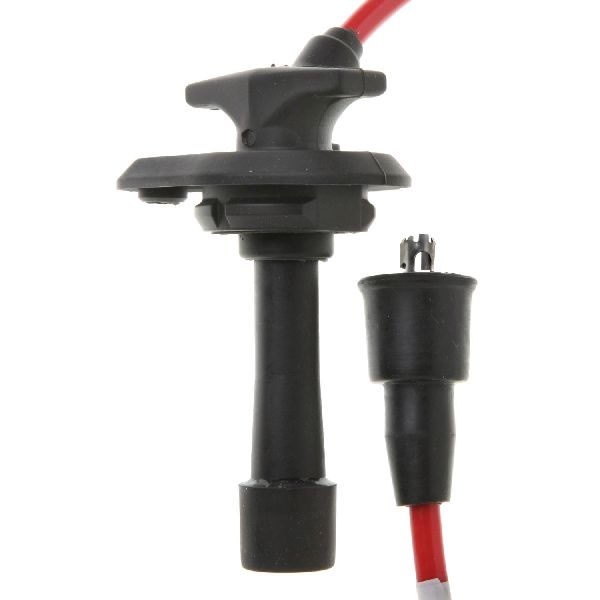

- Standard Motor Products (Standard Wires): Standard is a well-known aftermarket manufacturer. Forum users have reported good experiences with their wire sets, noting they are tough and fit well.
- Karlyn STI: Reviews for Karlyn STI wires are generally positive, with users praising their quality, fit, and value. They use a double silicone layer for better voltage protection.

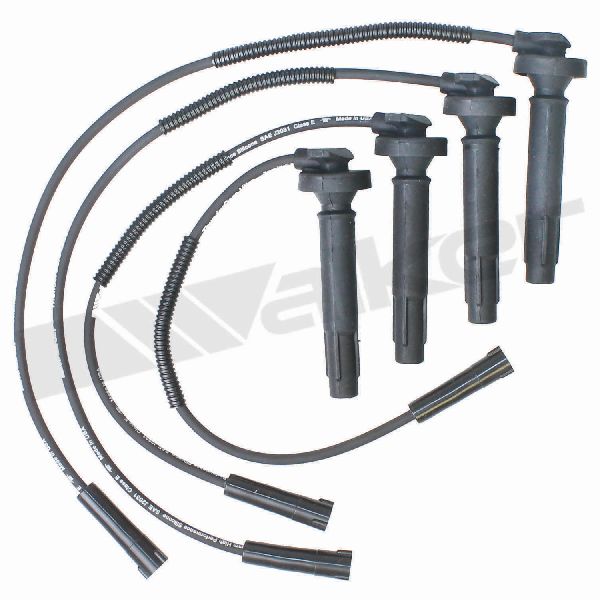

- Walker Products: Walker's ThunderCore wires are designed to meet or exceed OEM specifications and are made from high-quality materials like high-temperature silicone.
Tier 3: Performance-Oriented
- Granatelli: Granatelli positions itself as a high-performance option, claiming their 0-ohm resistance wires can increase horsepower. While these claims are bold, they are a more expensive option geared toward enthusiasts looking for every bit of performance.
Pro Tip: Replace Wires and Plugs Together
It's a good practice to replace your spark plugs whenever you replace the wires, and vice-versa. This ensures your entire ignition system is refreshed, providing optimal performance and preventing one old part from wearing out a new one.
Known Issues, Recalls, and Bulletins
Searches for recalls and Technical Service Bulletins (TSBs) related specifically to spark plug wires on the 1996-2003 Subaru Legacy did not reveal any specific campaigns. However, misfire codes (P0301-P0304) are common, and failing spark plug wires are a frequent cause. In some rare cases on other Subaru models, persistent misfire codes after replacing ignition components have been traced to issues like a faulty crankshaft pulley, but this is not a common cause.
Cost of Replacing Spark Plug Wires
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Wire Set | $40 - $104 |
| New OEM Wire Set | $75 - $158 |
| Shop Labor | $92 - $140 |
Frequently Asked Questions (FAQ)
Can I replace the spark plug wires myself?
Yes, this is a DIY-friendly job for most home mechanics. The main challenge on the Subaru boxer engine is access, as the spark plugs are on the sides of the engine. However, with basic tools like a ratchet, extension, and a 10mm socket, it is very achievable. Always apply dielectric grease to the inside of the new wire boots to ensure a good seal and prevent corrosion.
How often should I replace my spark plug wires?
A general guideline is to replace them every 60,000 miles, or whenever you replace your spark plugs. However, they can fail sooner due to heat and wear. If you notice any symptoms of failure, it's best to inspect them right away.
Do I need special tools?
No special tools are required. A basic socket set, a flat blade screwdriver, and perhaps a trim tool will be sufficient for the job. A packet of dielectric grease is also essential for a proper installation.
What's the difference between cheap and expensive wires?
The main differences are in the materials and construction. Higher-quality wires from brands like NGK and Denso use better insulation (like high-temp silicone) and more robust conductors. This makes them more resistant to heat, oil, and electrical interference, ensuring a longer life and more reliable performance. Cheaper wires may use inferior materials that break down more quickly.
Technical Specifications
OEM Part Numbers: SOA430Q121 SOA430Q122 22451AA550 22451AA520
The 1996-2003 Subaru Legacy uses a distributorless ignition system with a central coil pack and four spark plug wires. The wires are specific lengths for each cylinder. Quality replacement wires will have high-temperature silicone jackets and boots to withstand the heat of the boxer engine.
