Acura RL Manifold Absolute Pressure (MAP) Sensor Guide: 1996-2004
Everything you need to know before replacing the MAP sensor on your first-generation Acura RL.
- A failing MAP sensor on your RL will typically cause a check engine light with codes P0107 or P0108, rough running, and poor fuel economy.
- The OEM Acura sensor is very expensive; quality aftermarket brands like Standard Ignition and Walker Products offer a reliable, cost-effective alternative.
- Replacement is simple for a DIYer, but be prepared for the small vacuum hose tee to be brittle and potentially break.
- Always check for vacuum leaks before replacing the sensor, as they can cause identical symptoms.
Is Your Acura RL Running Rough? It Could Be the MAP Sensor
If your Acura RL is experiencing poor performance, the Manifold Absolute Pressure (MAP) sensor is a common component to investigate. This sensor provides critical data to your engine's computer. When it fails, it can cause a variety of noticeable problems, from rough idling to a significant drop in fuel efficiency. Understanding the symptoms and your replacement options can help you get your RL running smoothly again.
Symptoms of a Failing MAP Sensor
A bad MAP sensor sends incorrect information to the engine computer, leading to a number of performance issues. Here’s what you might experience:
- Check Engine Light: This is often the first sign. A code scan will likely show codes P0107 (sensor voltage too low) or P0108 (sensor voltage too high).
- Poor Engine Performance: You may notice sluggish acceleration, hesitation, or a general lack of power.
- Rough Idle: The engine may shake, sputter, or stall when you're stopped.
- Bad Fuel Economy: If the sensor is telling the computer to send too much fuel, you'll see a noticeable drop in your miles per gallon.
- Black Smoke from Exhaust: This is a sign of a rich fuel mixture (too much fuel, not enough air), which a faulty MAP sensor can cause.
- Hard Starting: The engine may be difficult to start, especially when it's cold.
Choosing a New Aftermarket MAP Sensor
The OEM MAP sensor for the Acura RL is surprisingly expensive. Aftermarket parts offer a more affordable solution, often with comparable quality. Here’s a look at the available brands:

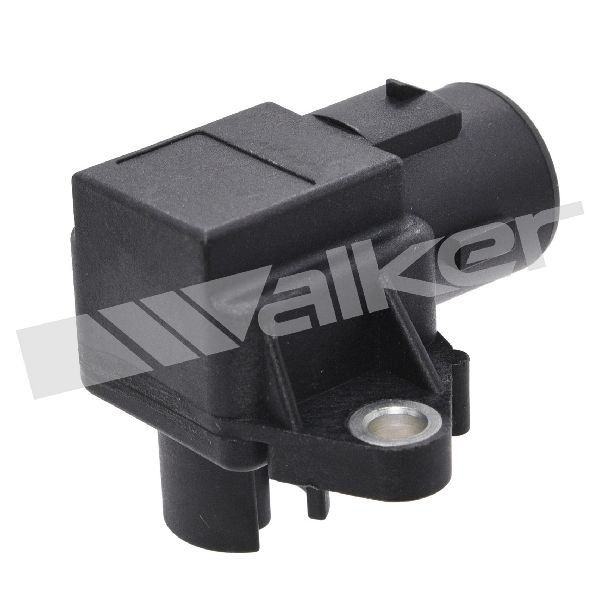

- Premium Aftermarket (Standard Ignition, Walker Products): These brands have a long-standing reputation for producing reliable, OE-quality replacement parts. Standard Motor Products (Standard Ignition) is a well-regarded manufacturer, and Walker Products has specialized in fuel and engine management for decades. For owners seeking the best balance of price and reliability, these brands are a solid choice.

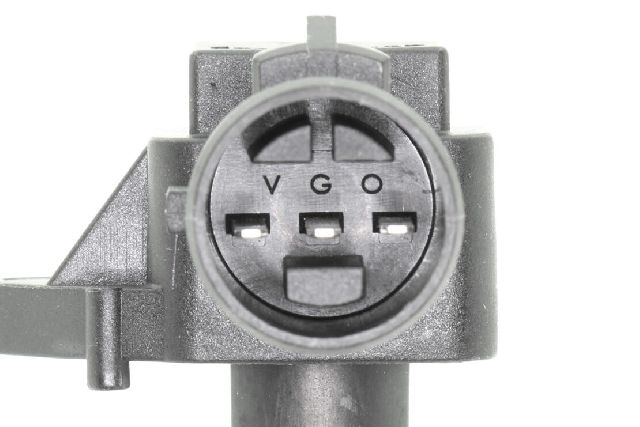

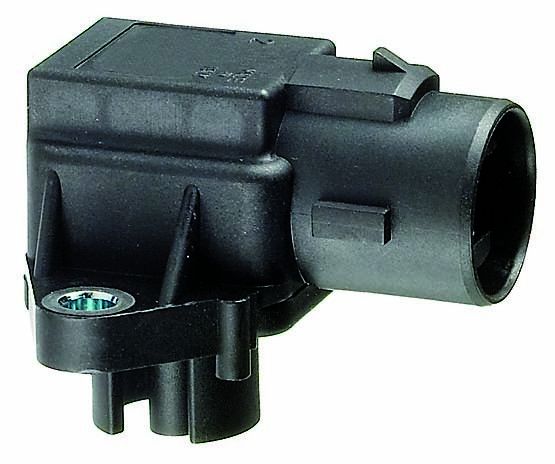

- Quality Alternatives (Facet, Vemo): Facet and Vemo are known for producing quality electronic components, often for European vehicles, but they offer parts for many imports. While they may not be as widely known in the US market as Standard or Walker, they represent a dependable and cost-effective option.

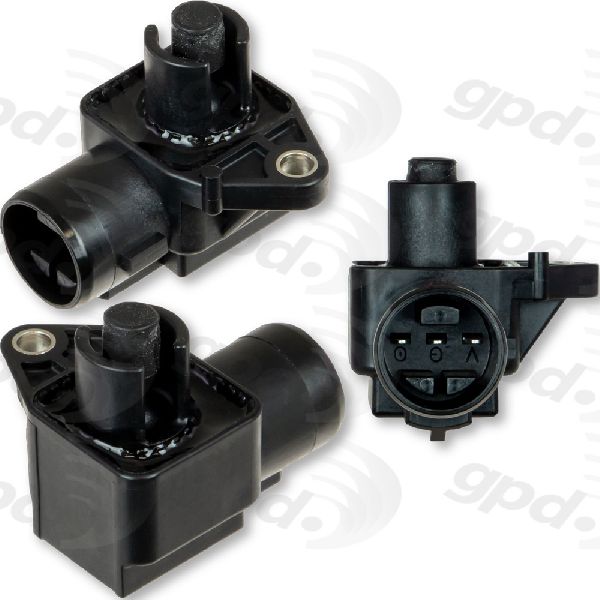

- Entry-Level Options (Global Parts): Some brands may offer the lowest price point. While one listing for a Global Parts (GPD) sensor showed an unusually high price, they are generally considered a more budget-focused brand. These can be a choice if budget is the primary concern, but long-term reliability may not match that of more established brands.
Cost of Replacing the MAP Sensor on a 1996-2004 Acura RL
| Part Type | Estimated Cost |
|---|---|
| New OEM | $450 - $677 |
| New Aftermarket | $102 - $132 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Where is the MAP sensor located on my Acura RL?
On the 1996-2004 Acura RL with the 3.5L V6 engine, the MAP sensor is mounted on the intake manifold, near the fuel injectors, under the plastic engine cover. It is a small black sensor with an electrical connector and a vacuum hose attached.
Can I replace the MAP sensor myself?
Yes, this is a DIY-friendly job for someone with basic tools. The process involves removing the engine cover, a 10mm bolt, a Phillips head screw, an electrical connector, and a vacuum hose. The main challenge is the potential for the old vacuum hose tee to be brittle and break.
Are there any recalls for the Acura RL MAP sensor?
No. Searches of NHTSA data and technical service bulletin databases did not find any recalls or TSBs specifically related to the MAP sensor for the 1996-2004 Acura RL. Recalls found for this vehicle primarily concern airbag inflators.
What's the difference between a MAP and a MAF sensor?
A MAP (Manifold Absolute Pressure) sensor measures pressure in the intake manifold. A MAF (Mass Air Flow) sensor measures the volume and density of the air entering the engine. Your Acura RL uses a MAP sensor-based system to manage the engine. Don't get them confused when ordering parts.
Technical Specifications
OEM Part Numbers: 37830-P13-003
The MAP sensor for the 1996-2004 Acura RL is a 3-pin electronic sensor that mounts to the intake manifold and connects via a small vacuum hose.
