A Guide to the Engine Oil Level Sensor for the 1996-2004 Audi A4 (B5/B6)
Seeing a false oil warning light on your Audi A4? Your oil level sensor is the most likely cause.
- A faulty oil level sensor triggers a yellow warning light; a red light means critical low oil pressure and you should stop the engine immediately.
- This is a very common failure, but replacement is easy and best done during an oil change since the oil must be drained.
- Before replacing the sensor, check that the hood latch microswitch is working, as a failure there can also cause a persistent oil warning light.
- Choosing an OEM-quality brand like Hella is highly recommended for reliability and to avoid replacing the part again soon.
Is it an Oil Level or Oil Pressure Warning?
Your Audi A4 has two different warnings for oil. It is critical to know the difference.
- Yellow Oil Can Light: This indicates a problem with the oil level. It often means the level is low, or the sensor itself has failed. It is a "check soon" warning.
- Red Oil Can Light: This is a critical warning for low oil pressure. If you see this light, you must stop the engine immediately to prevent catastrophic damage. This article is 🎬 Watch: What to do when your oil light comes on about the sensor for the yellow light only.
Common Symptoms of a Failing Oil Level Sensor
When the oil level sensor begins to fail, the signs are usually more annoying than dangerous, but they should not be ignored. The most common symptom is an incorrect warning light on the instrument cluster.
Check the Hood Latch First!
On these Audi models, the car needs to know you've opened the hood to check the oil. A faulty hood latch switch can prevent the oil level warning light from resetting, even after you've topped off the oil or replaced the sensor. If your dashboard doesn't show a "hood open" icon when the hood is up, you may need to fix the latch switch first.
🎬 See how to fix a faulty hood open warning sensorChoosing the Right Aftermarket Sensor
Not all aftermarket sensors are created equal. For a part like this that integrates with your car's electronics, choosing a quality brand can save you the headache of doing the job twice.
- OEM-Quality (Recommended): Brands like Hella are original equipment manufacturers for Audi, meaning they made the part for the factory. Choosing Hella ensures the best fit, function, and longevity. Vemo is another well-regarded German brand that produces quality electronic parts.
- Standard Aftermarket: Brands like Standard Ignition offer a balance of price and quality and are a step up from budget options.
- Budget-Tier: Brands like URO Parts are typically the most affordable. However, for electronic sensors, their quality can be inconsistent, and failure rates may be higher than with OEM-quality brands.
Pro Tip: Replace During an Oil Change
Replacing the oil level sensor requires completely draining the engine oil. The best and most cost-effective time to do this job is during a routine oil and filter change. The sensor is held on by just three small bolts at the bottom of the oil pan.
🎬 Watch this walkthrough of the oil level sensor replacementCost of Replacing an Audi A4 Oil Level Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $180 - $250 |
| New Aftermarket | $49 - $176 |
| Shop Labor | $100 - $150 |
Note: Costs are estimates and can vary by location and supplier. Labor costs assume the replacement is done separately from an oil change.
Frequently Asked Questions
Can I ignore a faulty oil level sensor?
You can, but it's not recommended. A bad sensor that constantly gives false warnings will not be able to warn you if your oil level becomes genuinely low. If you choose to wait, you must check your oil level manually with the dipstick on a regular basis.
Is there a recall for this sensor?
No, there are no active recalls from the NHTSA for the engine oil level sensor on the 1996-2004 Audi A4.
Are there any Technical Service Bulletins (TSBs)?
Yes, Audi has issued TSBs (e.g., 2038119) for this issue. The bulletins acknowledge that the sensor can fail and cause a false "Oil minimum warning" message. The official repair is to verify the oil level is correct and replace the sensor with an updated part.
Do I need special tools to replace the sensor?
No special tools are required beyond what you would use for a standard oil change. You will need a way to safely lift the car, a drain pan, a 19mm wrench or socket for the drain plug, and either a 10mm socket or a 5mm Allen key for the three sensor bolts, depending on the exact part installed.
Does the new sensor need to be programmed?
While official Audi TSBs mention performing an "oil level/temp adaptation" with a diagnostic tool, most DIY replacements do not require this step. The new sensor will typically work upon installation, and the warning light will go out.
Helpful Videos

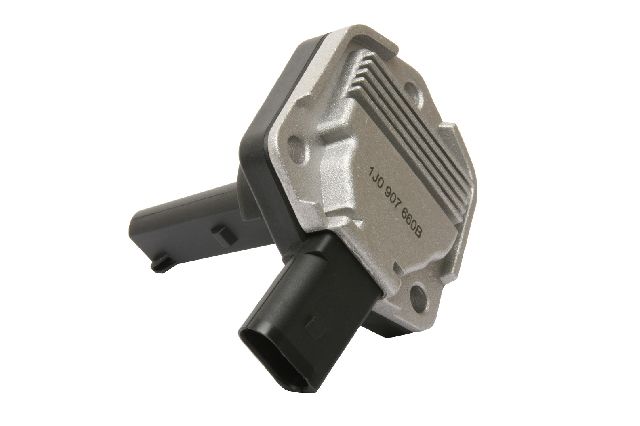

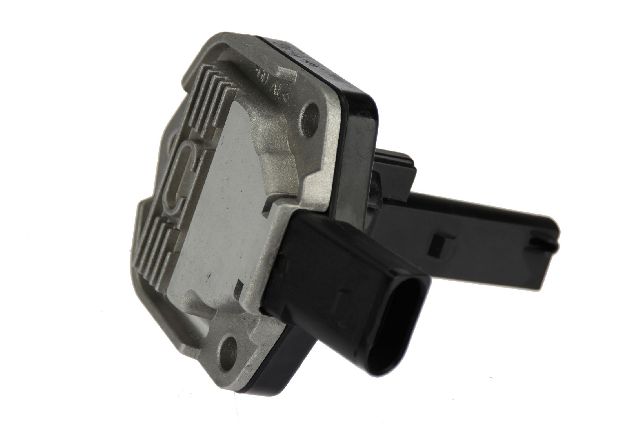

Technical Specifications
OEM Part Numbers: 1J0907660B 1J0907660C 03C907660H 03C907660S
Located in the engine oil pan. Secured with three bolts. Monitors both oil level and oil temperature.
