A Guide to the 1996-2004 Chevrolet S10 Fuel Pump Module Assembly
Here is what every S10 owner should know before replacing their fuel pump.
- For a reliable, long-term repair, choose a premium aftermarket brand like Delphi, Bosch, or AC Delco.
- Replacing the entire module assembly is essential; don't just replace the pump motor.
- Lifting the truck bed is the recommended method for replacement, as it's often easier than dropping a rusty fuel tank.
- Always replace the in-line fuel filter at the same time to protect the new pump.
Is Your S10 Fuel Pump Failing?
A bad fuel pump in a 1996-2004 Chevrolet S10 doesn't always fail suddenly. It often gives warning signs. If you notice these symptoms, your fuel pump module might be on its way out.
Common Failure Symptoms
- Engine Cranks, But Won't Start: The engine turns over but never fires up because it's not getting fuel.
- Long Crank Time: The engine takes longer than usual to start. This can happen because a bad check valve lets fuel drain back into the tank, so the pump has to re-prime the system every time.
- Loud Whining Noise: You may hear a loud, high-pitched whine coming from the fuel tank area (under the truck bed). This is the sound of a struggling pump motor.
- Loss of Power: The truck may feel sluggish, especially when accelerating or going uphill. The weak pump can't supply the extra fuel the engine needs. 🎬 Watch: Diagnosing a loss of power from a weak pump.
- Engine Sputtering or Stalling: The engine may sputter at high speeds or stall unexpectedly, even at idle. This indicates an inconsistent fuel supply.
- Inaccurate Fuel Gauge: Because the sending unit is part of the module, a common failure is a fuel gauge that reads empty all the time, full all the time, or bounces around. Many S10 owners replace the module for this reason alone.
Choosing the Right Aftermarket Fuel Pump
When you shop for a new fuel pump module, you'll see a wide range of prices. For a part that requires significant labor to replace, choosing the right brand is important. You don't want to do this job twice.
Aftermarket Brand Tiers for Chevrolet S10
| Tier | Brands | Description |
|---|---|---|

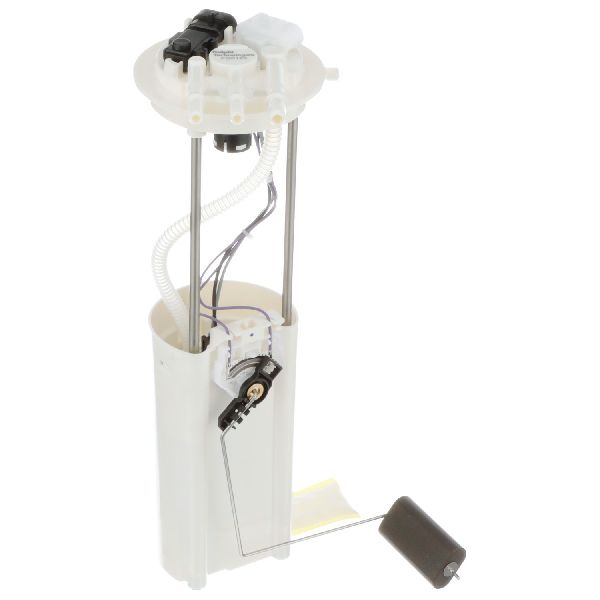

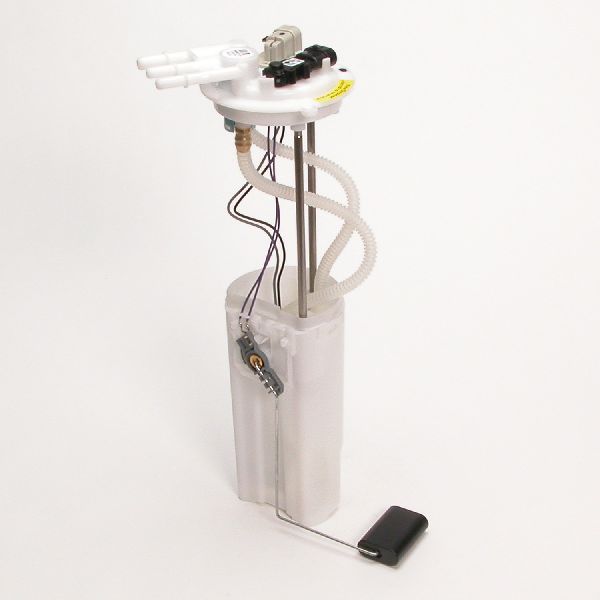

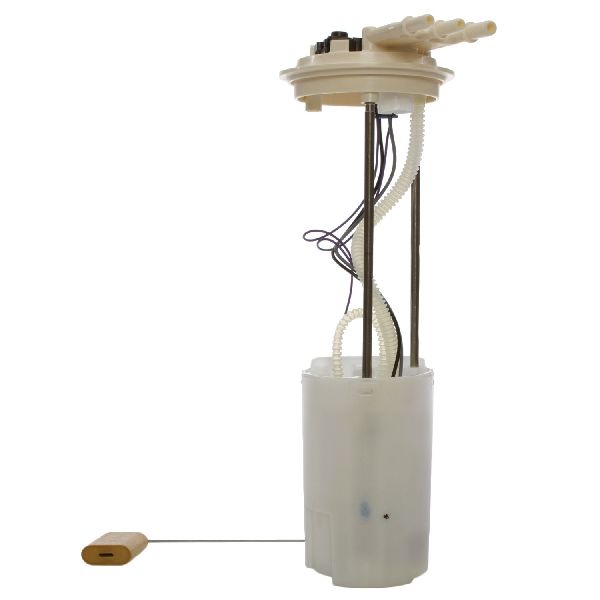

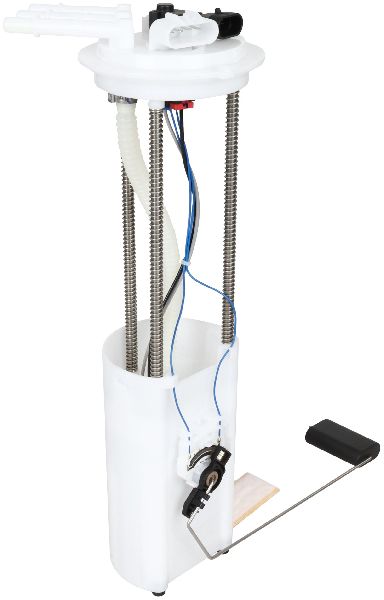

| Premium Aftermarket (OEM-Equivalent) | Delphi, Bosch, AC Delco | Delphi was a frequent original equipment (OE) supplier for GM during this era. Choosing a Delphi, AC Delco, or Bosch unit is the closest you can get to factory quality. These are the most reliable and recommended options for owners who want a long-lasting repair. |
| Mid-Grade Aftermarket | Carter, GMB, Dorman | These brands offer a good balance of quality and price. Carter is often cited as a reliable alternative to premium brands. Dorman is known for re-engineering parts to fix common flaws, while GMB is a well-established aftermarket manufacturer. They are solid choices for a daily driver. |

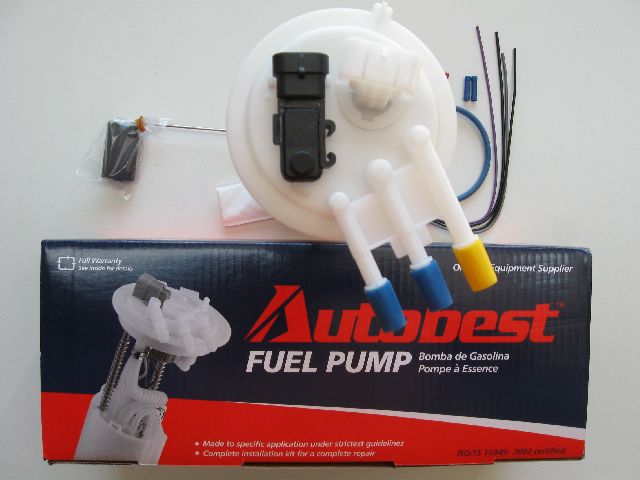

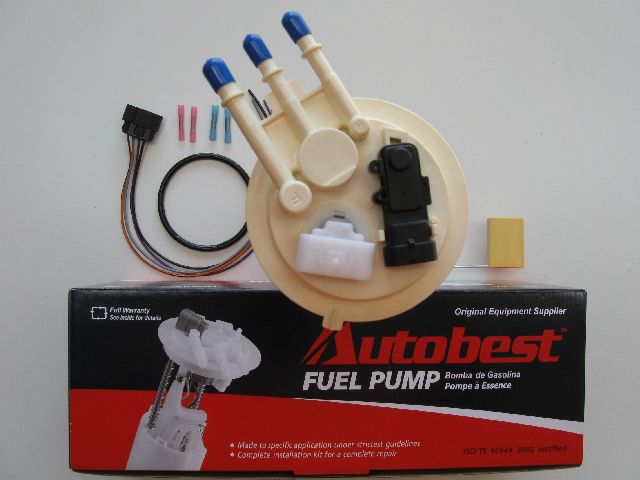

| Standard / Economy | AutoBest, URO Parts, US Motor Works | These brands provide a functional replacement at a lower cost. While they meet the basic requirements to get your truck running, forum discussions among S10 owners often caution that the lowest-priced pumps have a higher risk of premature failure. Consider these if budget is the primary concern and you are aware of the potential longevity trade-off. |
Known Issues, Recalls, and Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific safety recalls or technical service bulletins (TSBs) for the fuel pump module assembly on the 1996-2004 Chevrolet S10. While other fuel-related recalls exist for different GM models, the S10's pump was not part of a large-scale recall campaign. The failures are generally due to age and wear.
Installation Tips for S10 Owners
Pro Tip: Lift the Bed, Don't Drop the Tank. The most common piece of advice from experienced S10 owners is to remove the truck bed to access the fuel pump. Dropping the fuel tank can be difficult due to rusty straps and tight spaces. Lifting the bed requires removing 6-8 bolts, disconnecting the filler neck and taillight wiring, and having two or three people to lift it off. This method provides excellent, comfortable access to the top of the fuel tank.
🎬 See how to easily replace the pump by lifting the bed.Cost of Replacing a Chevrolet S10 Fuel Pump
| Part or Service | Estimated Cost |
|---|---|
| New OEM (ACDelco/Delphi) | $150 - $490 |
| New Aftermarket | $90 - $392 |
| Shop Labor | $286 - $420 |
| Total Professional Replacement | $376 - $912+ |
Frequently Asked Questions
Should I replace the whole module or just the pump motor?
Always replace the entire fuel pump module assembly. The sending unit (for the fuel gauge), strainer, and check valve wear out at a similar rate. Replacing only the motor might fix a no-start issue, but you could soon have a faulty gas gauge, forcing you to do the entire job again.
My truck won't start after I replaced the pump. What did I do wrong?
The most common mistake when lifting the bed is forgetting to reconnect the fuel pump's ground wire. There is a ground wire on the frame rail that must be reconnected for the pump to get power. Before putting the bed back on, turn the key to the 'ON' position (without starting) to listen for the pump priming for a few seconds. If you hear it, you're good to go.
Do I need a special tool to remove the pump?
Yes, the module is held in by a large metal or plastic locking ring. While some people use a hammer and a brass punch to tap it loose, the correct and safest method is to use a fuel tank locking ring tool. 🎬 Watch this solo fuel pump replacement for more tips. Using a steel punch or screwdriver can create sparks, which is extremely dangerous around gasoline vapors.
What else should I replace at the same time?
It is a best practice to replace your in-line fuel filter whenever you replace the fuel pump. A clogged old filter can put a strain on your new pump, causing it to work harder and potentially fail sooner. It's an inexpensive part that protects your investment.
Helpful Videos
![Chevy S10 Fuel Pump Replace [How To]](https://img.youtube.com/vi/7boxfSxoNac/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 19369898 25163473 MU1773 MU1062 MU1751 MU1732
The fuel system for the 4.3L V6 engine requires a pressure of 60-66 PSI with the key on and engine off. The part is an in-tank electric module assembly that integrates the pump, fuel level sending unit, and strainer. Different part numbers exist for different cab and bed configurations, so verifying the correct fitment is crucial.
