Oxygen Sensor Guide for the 1996-2004 Chrysler Town & Country
Fix your check engine light and poor gas mileage by choosing the right oxygen sensor for your minivan.
- Chrysler electronics can be sensitive; using an OEM supplier brand like Denso or NTK is highly recommended to avoid compatibility issues.
- Always confirm the correct sensor for the position (upstream/downstream), as they are not interchangeable.
- A failing oxygen sensor will cause reduced fuel economy and an automatic failure on emissions tests.
- Replacing an O2 sensor is a feasible DIY job with the right tool (an O2 sensor socket), but sensors can be difficult to remove if rusted.
Is a Failing Oxygen Sensor a Big Deal?
Yes, a failing oxygen sensor should be replaced. While your van will still drive, the engine's computer receives incorrect information. This leads to poor fuel economy, increased emissions, and a rougher-running engine. Over time, a bad upstream sensor can cause the engine to run too rich (too much fuel), which can overheat and damage the expensive catalytic converter. A bad sensor will also cause an automatic failure on an emissions test.
Symptoms of a Bad Oxygen Sensor in a Town & Country
The most common sign of a failing O2 sensor is a lit Check Engine Light on your dashboard. Other symptoms you might notice include:
- Worse gas mileage than usual
- Rough idling or engine hesitation
- A rotten egg smell from the exhaust
- Failing an emissions inspection
A code reader will show specific Diagnostic Trouble Codes (DTCs). Common codes for O2 sensor issues on these vans include P0132, P0133, P0135, P0138, P0032, and P0038.
🎬 Watch this video to understand what these O2 sensor codes mean.OEM vs. Aftermarket: A Word of Caution for Chrysler Owners
Chrysler vehicles from this era can be sensitive to the electronics in aftermarket sensors. Many owners and mechanics report that while top-tier aftermarket brands are generally good, sometimes only the original Mopar sensor (often made by Denso or NTK) will solve the check engine light issue permanently. Forum discussions frequently show owners who tried a budget or even a premium aftermarket sensor, only to have the check engine light return, forcing them to buy the OEM part in the end.
Choosing the Right Aftermarket O2 Sensor
If you choose an aftermarket sensor, it's best to stick with brands known to be Original Equipment (OE) suppliers. Always make sure you are buying the correct sensor for the specific location (e.g., Bank 1 Sensor 1, Bank 1 Sensor 2). Upstream and downstream sensors are not interchangeable.
🎬 Learn how to identify upstream versus downstream oxygen sensors.- Tier 1 (Highly Recommended): Denso and NGK (also sold as NTK). These companies are the original equipment manufacturers for Mopar. Choosing one of these gives you the best chance of a successful repair without compatibility problems.
- Tier 2 (Good Quality): Bosch and Delphi. These are reputable brands that produce quality sensors. However, some Chrysler owners have reported issues with Bosch sensors causing codes to reappear.
- Tier 3 (Budget): DriveWire, Spectra, Walker Products, and other store brands. While attractively priced, these have the highest risk of being incompatible with your Town & Country's computer, potentially leaving the check engine light on.
Pro Tip: Use an O2 Sensor Socket
A special tool called an oxygen sensor socket makes removal and installation much easier. It has a slot on the side to fit over the sensor's wire. Also, apply a small amount of anti-seize compound to the new sensor's threads before installation to make future removal easier. 🎬 See how to replace an O2 sensor on a Chrysler engine. Many new sensors come with anti-seize already applied.
Cost of Replacing a 1996-2004 Town & Country Oxygen Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $25 - $162 |
| New OEM (Mopar) Sensor | $80 - $200+ |
| Shop Labor | $75 - $150 per sensor |
Frequently Asked Questions
How many oxygen sensors does my 1996-2004 Town & Country have?
Most V6 models (3.3L and 3.8L) from this generation have two oxygen sensors: one upstream (before the catalytic converter) and one downstream (after the catalytic converter). Some configurations may vary, so it's always best to visually inspect your exhaust system.
What is the difference between upstream and downstream sensors?
The upstream sensor (also called Sensor 1) measures oxygen in the exhaust manifold to help the computer control the air/fuel mixture. The downstream sensor (Sensor 2) is located after the catalytic converter and measures its efficiency. They have different functions and are not interchangeable.
Which sensor is Bank 1?
On the front-wheel-drive V6 engines in the Town & Country, "Bank 1" refers to the cylinder bank at the rear of the engine bay, closer to the firewall. "Bank 2" is the cylinder bank at the front, closer to the radiator. Since most of these vans have a single exhaust pipe from the engine, you will likely only see codes for Bank 1 sensors.
Can I clean an oxygen sensor?
It is not recommended. Cleaning a contaminated or old sensor is not a reliable fix. The internal sensing elements wear out over time, and replacement is the only way to restore proper function.
Were there any recalls for the oxygen sensor?
No, there have been no specific recalls issued by the NHTSA for oxygen sensors on the 1996-2004 Chrysler Town & Country. Any check engine light issues are typically due to sensor failure from age and wear.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56044214AA 5149171AB

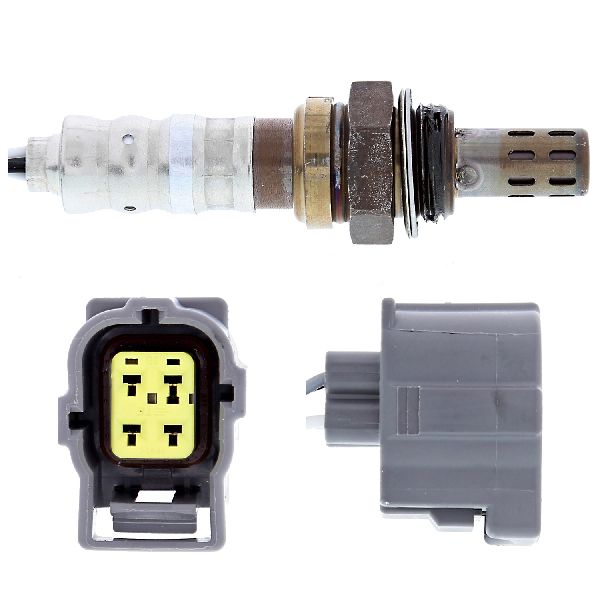

Most sensors for this vehicle are a 4-wire, heated, threaded-in type with an 18mm thread diameter. Connectors and wire length are specific to the position (upstream or downstream).
