Oldsmobile Bravada Brake Light Switch Guide for 1996-2004 Models
Fixing brake light, cruise control, and shifting problems often starts with this small but critical part.
- A bad brake light switch is a serious safety issue; replace it immediately if your brake lights are not working.
- Symptoms are not limited to lights; being stuck in park and cruise control failure are common signs.
- For this vehicle, ACDelco is the OEM brand, while Standard Ignition is a trusted premium aftermarket alternative.
- Always check the brake light fuse first before assuming the switch has failed.
Is Your Bravada's Brake Light Switch Failing?
A faulty brake light switch can cause several confusing and dangerous issues in your 1996-2004 Oldsmobile Bravada. Because it's tied into multiple systems, a failure can seem like a much larger electrical problem. Recognizing the signs early can save you from a potential accident or a vehicle that won't shift out of park.
Common Symptoms of Failure
Here are the most common signs that your brake light switch needs to be replaced:
- Brake Lights Don't Work: The most serious symptom is when your brake lights fail to illuminate when you press the pedal. This is a major safety hazard.
- Brake Lights Stay On: The switch can fail in the "on" position, leaving your brake lights illuminated constantly, which can drain your battery and confuse other drivers.
- Can't Shift Out of Park: Your Bravada has a safety feature called a shift interlock that prevents you from shifting out of park unless the brake pedal is pressed. A bad switch won't send the signal, leaving your gear selector stuck.
- Cruise Control Issues: If your cruise control won't engage or shuts off randomly, it could be due to a faulty brake light switch sending an incorrect signal.
- ABS Warning Light: In some cases, a failing brake light switch can trigger the ABS (Anti-lock Braking System) light on your dashboard.
Recalls and Technical Service Bulletins (TSBs)
While there are no direct recalls for the brake light switch itself on the 1996-2004 Bravada, there was a recall (NHTSA ID: #03V159000) for the multifunction switch on 2000-2001 models. A faulty multifunction switch could cause the stop lamps to become inoperative. If you have checked your brake light switch and fuse and still have issues, the multifunction switch could be the next component to investigate.
Choosing the Right Aftermarket Brake Light Switch
Since the Oldsmobile Bravada shares its platform with the Chevrolet Blazer and GMC Jimmy, parts are widely available. When choosing a new aftermarket brake light switch, you have several options that balance quality and price.
Brand Quality Tiers:
- OEM-Grade (ACDelco): ACDelco is GM's official parts brand and is considered the original equipment manufacturer. Choosing an ACDelco switch ensures a direct fit and performance identical to the factory part. They are a trusted choice for reliability.
- Premium Aftermarket (Standard Ignition): Standard Motor Products (SMP), sold under the Standard Ignition brand, is a highly respected aftermarket manufacturer. They often meet or exceed OEM specifications and are a reliable alternative to ACDelco, sometimes at a slightly lower price.
- Standard Aftermarket (Rostra Powertrain): Rostra is known for producing a wide range of automotive electronics. Their switches are designed as direct-fit OE replacements and are a solid mid-tier option.
- Budget-Friendly (Replacement, Vemo): Brands like "Replacement" are generic, value-oriented options. Vemo is another brand available, though user reviews are mixed and it is less common in the US market. These can be a cost-effective solution, but may not offer the same long-term durability as premium brands.
Estimated Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco) | $25 - $50 |
| New Aftermarket | $16.34 - $37.15 |
| Shop Labor | $50 - $100 |
Pro Tip: Check the Fuse First
Before replacing the switch, always check the brake light fuse in your vehicle's fuse panel. A simple blown fuse can mimic the symptoms of a failed switch and is a much easier and cheaper fix.
Frequently Asked Questions (FAQ)
Is it hard to replace a brake light switch on a Bravada?
No, it is generally an easy repair. The switch is located on the brake pedal support bracket under the dashboard. It typically involves disconnecting the electrical connector, then rotating and pulling the old switch out. The new one is installed in the reverse order. The entire job usually takes less than 30 minutes.
Where is the brake light switch located?
You can find the brake light switch by looking up from the driver's side floor at the top of the brake pedal arm, where it pivots under the dashboard. It is a small, plunger-style switch with a wiring connector attached.
Will a bad brake light switch drain my battery?
Yes. If the switch fails in the closed or "on" position, it will keep your brake lights illuminated even when the vehicle is off. This constant power draw will drain the battery, potentially overnight.
Do I need to adjust the new brake light switch?
Most modern switches for the Bravada are self-adjusting upon installation. However, it's important to ensure it's installed correctly. After installation, check that the brake lights activate with a small amount of pedal travel (typically 1/4 to 1/2 inch) and turn off immediately when the pedal is released.
Technical Specifications
OEM Part Numbers: 15163032

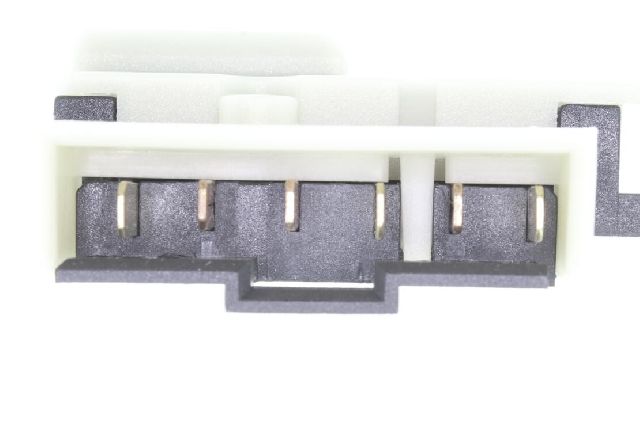

The brake light switch for the 1996-2004 Oldsmobile Bravada is typically a push-on, 6-terminal switch that mounts to the brake pedal bracket.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
