Engine Cooling Fan Clutch Guide for 1996-2004 Oldsmobile Bravada
Learn how to spot a failing fan clutch on your Bravada and choose the right replacement to prevent overheating.
- A failing fan clutch is a common issue that can cause your Bravada to overheat in traffic or make a loud roaring noise.
- ACDelco is the OEM brand, while Hayden and Four Seasons are considered reliable aftermarket alternatives that offer a good balance of price and quality.
- Replacement is a manageable DIY task, but renting a fan clutch wrench set is highly recommended to make the job easier.
- Always inspect for a wobbly fan; ignoring it can lead to severe damage to the water pump and radiator.
Is Your Bravada's Fan Clutch Failing?
A bad fan clutch on the 4.3L V6 engine in the 1996-2001 Bravada, or the 4.2L I6 in the 2002-2004 models, can lead to serious issues. Recognizing the symptoms early can save you from engine damage. The most common failures are the clutch either getting stuck on or not engaging at all.
Key Symptoms of a Bad Fan Clutch:
- Engine Overheating at Low Speeds: This is the most critical symptom. If your temperature gauge climbs in stop-and-go traffic or while idling, but cools down on the highway, the fan clutch is likely not engaging to pull air through the radiator.
- Loud Roaring Noise: If the fan clutch is seized, it will be engaged all the time. This creates a loud roaring or "jet engine" sound from the front of the vehicle that gets louder with engine RPM. This also causes reduced power and poor fuel economy.
- Fan Freewheels When Engine is Off: With the engine off and cool, spin the fan blade by hand. If it spins more than a few times with no resistance, the clutch is likely worn out. A good clutch should have some drag.
- Wobbly or Loose Fan: If you can wiggle the fan back and forth, it's a sign of a bad bearing in the fan clutch. Do not ignore this, as a wobbly fan can damage the water pump or even fly off and puncture the radiator or hood.
No Recalls, But A Known Issue
Searches for recalls on the NHTSA database for this specific part and vehicle range did not show any results. While some other GM vehicles have had recalls for electric cooling fan issues, the mechanical fan clutch on the Bravada is considered a normal wear-and-tear item. However, it is a well-known failure point on these trucks.
Choosing the Right Aftermarket Fan Clutch
Since new original equipment (OEM) parts from GM are becoming scarce for a vehicle of this age, the aftermarket is your best bet. Quality can vary, so it's important to choose wisely.
Brand Quality Tiers
- Tier 1 - OEM Equivalent: ACDelco is the original parts supplier for General Motors. Choosing an ACDelco part generally ensures a direct fit and performance similar to the original. However, they are often the most expensive option.
- Tier 2 - Reputable Aftermarket: Brands like Hayden and Four Seasons are well-regarded in the aftermarket for cooling components. Many professional mechanics and experienced owners trust these brands for a good balance of quality and price. Some users report Hayden clutches can be a bit louder or more aggressive than stock, but this often results in better cooling.
- Tier 3 - Value Options: Brands like Dorman, GMB, and US Motor Works offer a more budget-friendly choice. They can be a good option if cost is the primary concern. Dorman is known for sometimes offering "OE FIX" parts that redesign a component to prevent a common failure, though this doesn't appear to be the case for this specific fan clutch.
A Note on "Severe Duty" Clutches
You may see "Standard Duty" and "Severe Duty" or "Heavy Duty" options. A severe duty clutch will engage more forcefully and at a lower temperature, providing more cooling. This is a good upgrade if you frequently tow or live in a very hot climate. However, it will be louder and may slightly reduce fuel economy.
Cost to Replace a 1996-2004 Bravada Fan Clutch
The cost can vary based on the brand you choose and whether you do the work yourself or hire a professional.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Fan Clutch | $67 - $286 |
| New OEM Fan Clutch (ACDelco) | $230 - $300+ |
| Shop Labor | $120 - $250 |
| Total Professional Replacement | $187 - $536+ |
Frequently Asked Questions (FAQ)
Can I replace the fan clutch myself?
Yes, this is a common DIY job for those with some mechanical experience. The main challenge is removing the large nut that holds the clutch to the water pump. A special fan clutch wrench set, which can often be rented for free from auto parts stores, makes the job much easier. Without the tool, it can be difficult to keep the pulley from spinning while trying to loosen the nut. The process typically takes 1-2 hours.
What's the difference between a thermal and non-thermal clutch?
The Oldsmobile Bravada uses a thermal fan clutch. This type has a bi-metallic spring on the front that reacts to the temperature of the air coming through the radiator. As the air gets hotter, the spring expands and allows fluid inside the clutch to engage the fan. Non-thermal clutches engage based on engine speed alone and are not used on this vehicle.
Should I replace the water pump at the same time?
It's a good idea to inspect the water pump while you have the fan clutch off. Check for any leaks from the weep hole or any side-to-side play in the water pump shaft. If the vehicle has high mileage or the water pump is original, replacing it at the same time as the fan clutch can save you from having to do the same job twice in the near future, as the labor overlaps significantly.
Is an electric fan conversion a better option?
Some owners choose to replace the mechanical fan and clutch with an electric fan setup. Proponents claim benefits like increased horsepower (by reducing drag on the engine) and better fuel economy. However, a quality conversion can be expensive and requires proper wiring. For heavy use like towing or off-roading, a properly functioning mechanical fan often moves more air and provides more reliable cooling than many aftermarket electric fan kits.
Technical Specifications
OEM Part Numbers: 15293048 25790869 15071248 15192192

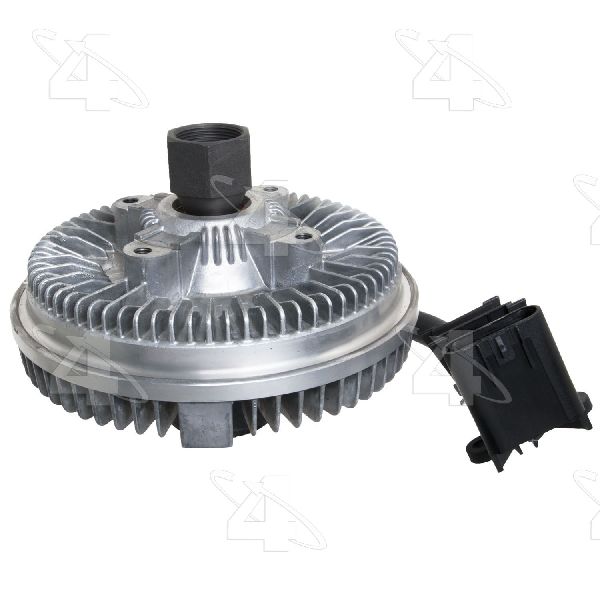

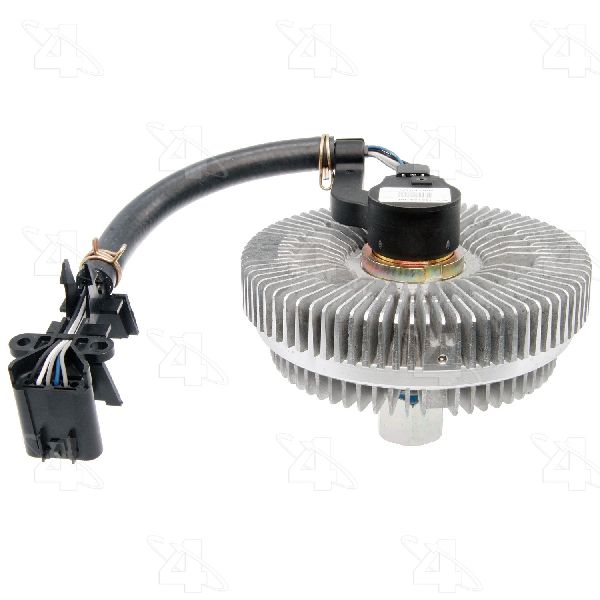

The fan clutch for the 1996-2004 Oldsmobile Bravada is a reverse-rotation, thermal type. The 1996-2001 models with the 4.3L V6 use a standard thermal clutch, while the 2002-2004 models with the 4.2L I6 use an electronically controlled thermal clutch.
