Toyota RAV4 Door Lock Actuator Guide (1996-2004)
Is your 1996-2004 RAV4 door lock acting up? Here’s what you need to know before you buy a replacement.
- A single failing door lock is almost always the actuator in that door.
- Symptoms include buzzing/grinding noises or the lock simply not working with the remote.
- Replacement is a moderately difficult DIY job that requires removing the door panel.
- An aftermarket part offers significant cost savings, making it a practical choice for an older RAV4.
Symptoms of a Failing Door Lock Actuator
When a door lock actuator on your first-generation RAV4 starts to fail, the signs are usually obvious. You don't need to be a mechanic to notice them.
- Doors Won't Lock or Unlock Electronically: The most common symptom. One or more doors may not respond to the key fob or the interior power lock switch. You might have to lock or unlock the door manually with the key.
- Strange Noises from the Door: You might hear a buzzing, clicking, or grinding sound from inside the door when you try to lock or unlock it. This is the sound of the small motor or gears inside the actuator struggling or failing.
- Intermittent Operation: The lock might work sometimes and not others. This can be frustrating and is a clear sign the part is on its way out.
- Slow or Weak Locking/Unlocking: The lock plunger may move slowly or seem weak when you use the power lock button, indicating the motor is losing power.
Is It the Actuator or Something Else?

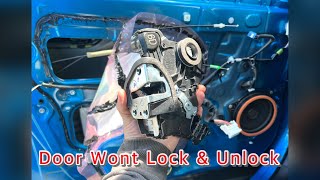

If all your door locks stop working at once, the problem could be a fuse or a relay for the power lock system. However, if only one door is having a problem, the issue is almost always the actuator 🎬 See this walkthrough for replacing a failing door lock actuator. in that specific door.
Choosing Your Aftermarket Replacement Part
When replacing a part like a door lock actuator on an older vehicle like the 1996-2004 RAV4, you have a choice between expensive dealer parts (OEM) and more affordable aftermarket options.
OEM vs. Aftermarket (Standard Ignition)
OEM (Original Equipment Manufacturer) parts are the same ones Toyota installed at the factory. They guarantee a perfect fit and have a reputation for long-term reliability. However, for an older vehicle, the cost can be very high, sometimes more than the repair is worth to you.
Aftermarket parts, like those from a brand such as Standard Ignition (Standard Motor Products), are made by other companies to fit your vehicle. The main benefit is cost savings. For a part where the replacement labor can be intensive, quality is a key consideration. While some budget aftermarket parts have a reputation for failing early, established brands like Standard Ignition are known to produce reliable components that offer a good balance of quality and price. For a DIY repair on an older RAV4, an aftermarket actuator can make a lot of sense financially.

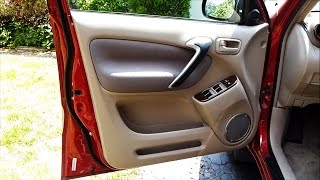

Pro Tip: The process of replacing the actuator involves taking the entire door panel off. 🎬 Watch: How to safely remove the door panel without breaking clips. It's a significant amount of work. Because of this, many owners recommend buying the best quality part you can afford to avoid doing the job a second time.
Cost of Replacing a RAV4 Door Lock Actuator
The cost can vary a lot depending on who does the work and what part you buy.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $400 - $500+ |
| New Aftermarket Part (e.g., Standard Ignition) | $70 - $275 |
| Shop Labor | $150 - $250 |
| Total (Shop Repair, OEM Part) | $550 - $750+ |
| Total (DIY Repair, Aftermarket Part) | $70 - $275 |
Frequently Asked Questions
Are there any recalls for the 1996-2004 RAV4 door lock actuator?
No. Searches of the NHTSA database and other public records show no safety recalls or technical service bulletins (TSBs) specifically for door lock actuator failure on the 1996-2004 Toyota RAV4. Any recalls you may see for RAV4 door locks apply to much newer model years.
Can I replace just one actuator?
Yes. The actuators are independent for each door. You only need to replace the one that has failed. However, they are all the same age, so if one fails, others may not be far behind.
How difficult is the replacement?

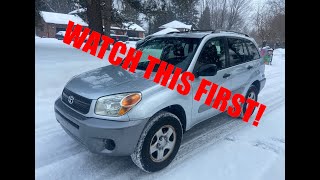

This is a moderately difficult DIY job. It requires removing the interior door panel, peeling back a plastic weather shield, and working in a tight space to unbolt the old actuator and disconnect its electrical plug and mechanical rods. It requires basic hand tools and patience. Watching a video of the procedure for your specific model year is highly recommended 🎬 Watch this first for 2001-2005 RAV4 actuator replacement tips. before you start.
Do I need any special tools?
You will need basic tools like a screwdriver set, a socket set, and a panel removal tool to safely pry off the door panel without breaking clips. Some RAV4 models may use Torx screws to hold the latch assembly, so a Torx bit set might be necessary.

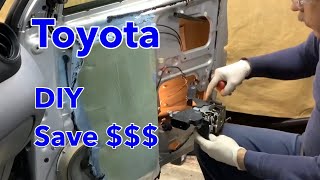

Helpful Videos
Technical Specifications
The actuator is an integrated motor and gear assembly, often combined with the door latch mechanism. It connects to the vehicle's wiring via a multi-pin connector and to the lock via mechanical rods.
