Acura RL Ignition Knock Sensor Guide (1996-2005)
Address engine knock and restore performance in your first-generation Acura RL.
- The knock sensor is located under the intake manifold, making replacement a labor-intensive job.
- Always replace the short sub-harness (pigtail) at the same time as the sensor to prevent future failure.
- Due to the high labor cost, use a high-quality aftermarket brand like NGK/NTK, Delphi, or Standard Ignition to avoid repeat repairs.
- The most common trouble code associated with a failure is P0325 (Knock Sensor 1 Circuit Malfunction).
Is Your Acura RL Knock Sensor Failing?
A bad knock sensor can be tricky. Sometimes you won't notice any change in how your car drives, but a Check Engine Light will appear on your dash. In other cases, the symptoms are more obvious. Because the sensor is a critical part of engine management, a failure can lead to noticeable performance issues.
Common Symptoms of a Bad Knock Sensor:
- Check Engine Light: The most common sign is a Check Engine Light with the code P0325 stored in the computer.
- Reduced Engine Power: The car's computer will switch to a "safe" mode to prevent damage, resulting in sluggish acceleration.
- Poor Fuel Economy: With the engine not running at its best, you'll likely see a drop in your miles per gallon (MPG).
- Engine Pinging or Knocking: You might hear a metallic pinging or rattling sound, especially when accelerating or going uphill. This is the sound of the uncontrolled combustion that the sensor is supposed to prevent.
A Common Point of Failure: The Sub-Harness
On the 1996-2005 Acura RL, the knock sensor is located under the intake manifold in the valley of the engine. It connects to the main engine wiring via a short wire called a sub-harness. This sub-harness is a very common failure point due to constant exposure to high heat. Rodents have also been known to chew on these wires. It is strongly recommended to replace the sub-harness (Part No. 30531-P8F-A00) whenever you replace the knock sensor. Doing the job twice because of a bad wire is expensive and frustrating.
Choosing the Right Aftermarket Knock Sensor
Because replacing the knock sensor on the RL is a labor-intensive job (requiring removal of the intake manifold), choosing a quality part is crucial to avoid doing the work again soon. While OEM is always an option, several aftermarket brands offer excellent quality, often from the same factories that make the original part.
Brand Quality Tiers
- Top Tier / OEM Equivalent (Recommended): These brands are known OEM suppliers and offer the highest reliability. Given the difficult installation, spending a little more here is wise.

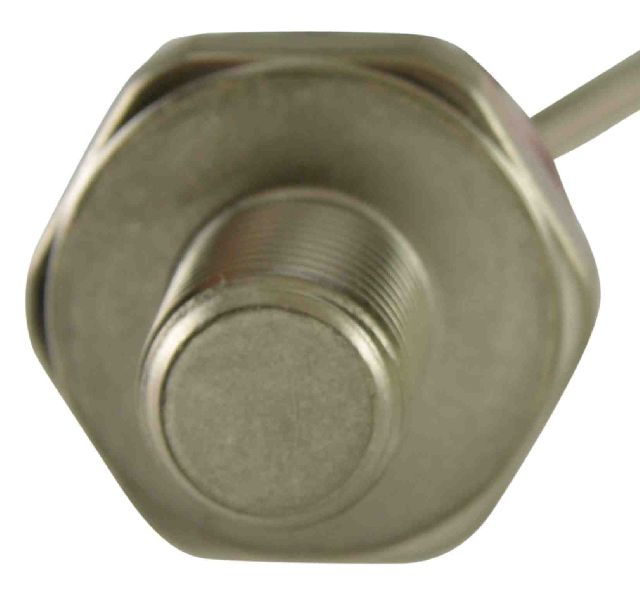

- NGK (NTK): NTK is the sensor division of NGK. They are a primary OEM supplier for many Japanese vehicles and are highly recommended for fit and function.

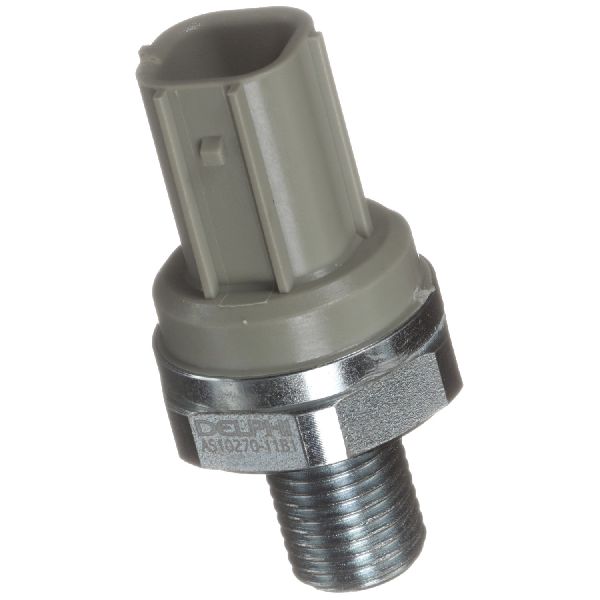

- Delphi: A major global OEM parts manufacturer with a strong reputation for quality electronics.
- Standard Ignition (SMP): A long-standing and trusted aftermarket brand that produces reliable sensors.
- Mid-Tier / Good Value: These brands can be a good balance of price and quality for owners on a tighter budget.
- Beck Arnley: Often re-packages parts from OEM suppliers. Quality is generally good, but can vary.

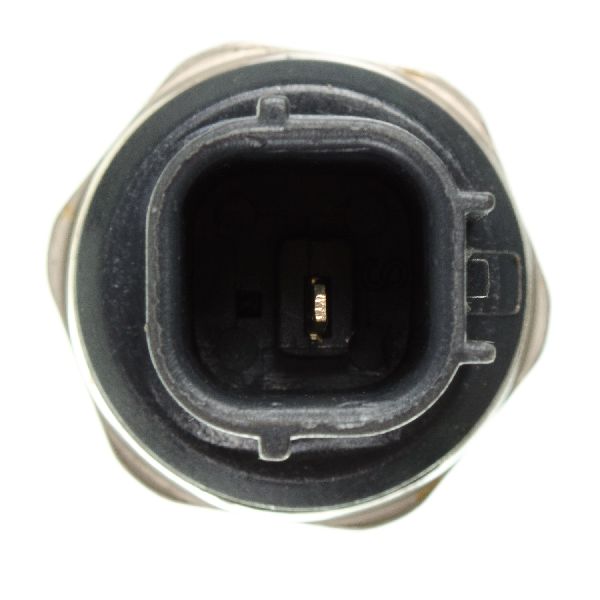

- Holstein / Walker Products: Solid aftermarket brands that offer a dependable alternative to premium-priced parts.
- Economy Tier: These are the most budget-friendly options. They may work, but their long-term reliability can be questionable. They are a bigger risk for a part that is difficult to access.

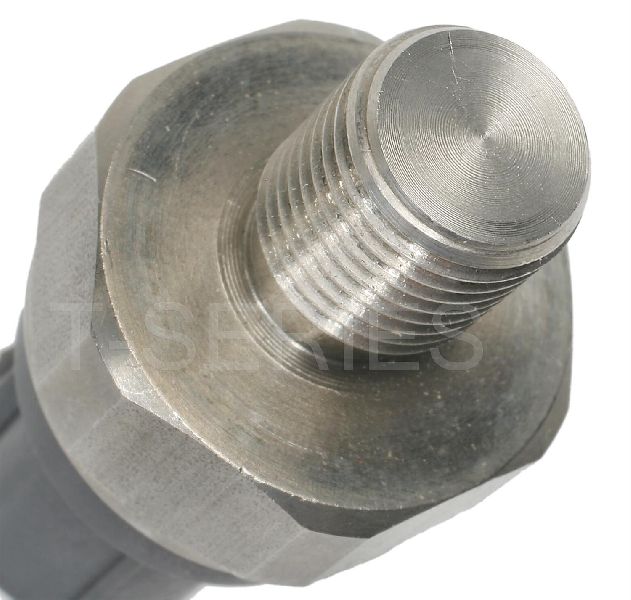

- Global Parts, True Tech, Vemo
Pro Tip: Many forum users and mechanics strongly advise against using the cheapest no-name sensors from sites like eBay or Amazon for this specific repair. The high cost of labor makes a part failure very expensive in the long run. Stick with a reputable brand.
| Part Type | Estimated Cost |
|---|---|
| New OEM Sensor | $60 - $90 |
| New Aftermarket Sensor | $31 - $119 |
| Shop Labor | $300 - $500 |
Frequently Asked Questions (FAQ)
Where is the knock sensor located on a 1996-2005 Acura RL?
The knock sensor is located on the engine block, in the valley between the two cylinder banks, underneath the intake manifold. Accessing it requires removing the upper and lower intake manifold plenums.
Is this a difficult DIY job? 🎬 Watch this step-by-step guide to replacing the knock sensor yourself.
For the average DIY mechanic, this is a moderately difficult job due to the need to remove the intake manifold. It requires keeping track of several bolts, hoses, and gaskets. It typically takes a professional 3-4 hours. If you are not comfortable with this level of disassembly, it's best to leave it to a professional.
Do I really need to replace the sub-harness too?
Yes, it is highly recommended. The sub-harness is a known weak point that becomes brittle from heat cycles. Since 90% of the work is just getting to the sensor, replacing this inexpensive wire at the same time is cheap insurance against having to do the entire job again.
Are there any recalls or TSBs for the knock sensor on this car?
There are no specific recalls for the knock sensor on the 1996-2005 Acura RL. While various Technical Service Bulletins (TSBs) exist for this vehicle generation, none directly address a widespread knock sensor failure. The issue is typically related to age, heat, or wiring damage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30530-P8F-A01
Location: Engine Valley, under intake manifold. Sub-harness Part Number: 30531-P8F-A00
