Engine Coolant Temperature Sensor Guide for the 1996-2005 Buick Regal

Symptoms of a Failing Coolant Temperature Sensor in a Buick Regal

When the ECT sensor fails, it sends incorrect information to your car's computer. This can cause a range of problems that might seem unrelated. The computer may think the engine is cold when it's hot, or hot when it's cold.

• Poor Fuel Economy: If the sensor tells the computer the engine is always cold, the computer will enrich the fuel mixture, causing the car to use more gas than necessary.
• Black Smoke from Exhaust: A constantly rich fuel mixture may not burn completely, leading to black smoke coming from the tailpipe.
• Check Engine Light: A faulty sensor will almost always trigger a Check Engine Light. Common codes for the 1996-2005 Buick Regal are P0117 (sensor circuit low voltage) and P0118 (sensor circuit high voltage).
🎬 Watch: A deep dive into diagnosing P0117 and P0118 codes.
• Inaccurate Temperature Gauge: The gauge on your dashboard may read cold all the time, hot all the time, or fluctuate wildly.
• Engine Overheating: If the sensor fails to report that the engine is getting hot, the cooling fans may not turn on when they are needed, leading to overheating.
• Rough Idle or Hard Starting: The wrong fuel mixture can make the engine run poorly, especially when idling or trying to start it.

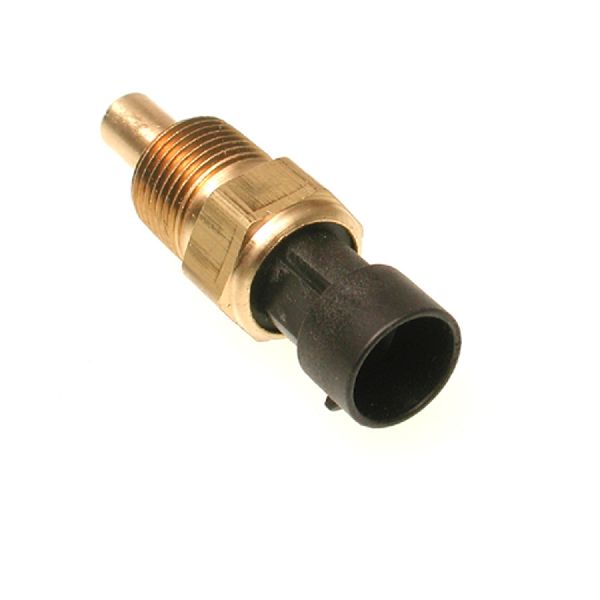

Choosing the Right Aftermarket Sensor

For a critical sensor like the ECT, brand quality matters. While many options are available, they generally fall into three tiers for your Buick Regal.

Tier 1: OEM and OEM-Equivalent Brands

Brands: ACDelco, Delphi

ACDelco is the original equipment (OE) parts brand for General Motors. Delphi was a major parts supplier for GM for many years. For your Regal, choosing one of these two brands is the safest bet for reliability, proper fit, and accurate temperature readings. While some forum users have noted that even these brands can have quality control issues, they remain the top recommendation for avoiding problems.

Tier 2: Reputable Aftermarket Brands

Brands: NGK, Standard Ignition (SMP), Hella

These brands have a long-standing reputation for producing quality aftermarket parts. They are generally considered reliable alternatives if an OEM-tier part is not available or is significantly more expensive. They focus on meeting or exceeding original specifications.

Tier 3: Budget-Friendly Brands

Brands: Beck Arnley, Facet, Four Seasons, Global Parts, Holstein, Motorad, True Tech, Walker Products

These brands offer a more affordable price point. While they can be a good value, quality can sometimes be inconsistent. For a sensor this critical and inexpensive to begin with, it's often worth spending a few extra dollars for a Tier 1 or Tier 2 part to avoid potential drivability issues or the need for a second replacement.

Installation on a 1996-2005 Buick Regal

Replacing the ECT sensor on the 3.8L V6 engine is a straightforward job that most DIYers can handle.

Location: The sensor is typically located on the lower intake manifold, near the thermostat housing, at the front of the engine. It is a small, two-wire sensor that screws into the manifold.

General Steps:

1. Wait for the engine to cool down completely.
2. Place a drain pan under the work area to catch any spilled coolant.
3. Disconnect the electrical connector from the old sensor.
4. Using a deep socket, unscrew and remove the old sensor.
5. Quickly install the new sensor to minimize coolant loss.

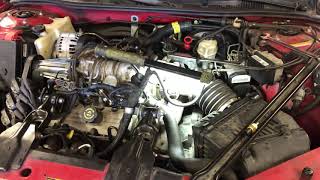

🎬 See this walkthrough for replacing the sensor on a 3800 engine.
6. Reconnect the electrical connector.
7. Top off the coolant level in the radiator or reservoir.
8. Clear any stored trouble codes with a scanner.
