Cadillac DeVille Suspension Control Arm Guide (1996-2005)
Address front-end clunks, wandering steering, and uneven tire wear in your 1996-2005 Cadillac DeVille.
- A clunking noise over bumps is the #1 symptom of a failing control arm on a DeVille.
- For safety and balanced handling, control arms must be replaced in pairs (left and right).
- A wheel alignment is mandatory after replacement to prevent rapid tire wear and steering issues.
- For a vehicle this age, a quality aftermarket assembly from a brand like Moog or Mevotech is a better value than expensive OEM parts.
Is Your DeVille Making Noise Over Bumps?
A worn-out control arm is one of the most common reasons for front-end noises and steering problems on the 1996-2005 Cadillac DeVille. As the bushings and ball joint wear, they develop excessive play, leading to symptoms that degrade your car's ride and safety. Ignoring these signs can lead to more significant issues, including a potential loss of steering control.
Top 5 Symptoms of a Failing Control Arm
- Clunking or Knocking Noises: This is the most common sign. You'll hear a distinct clunk or pop from the front end when driving over bumps, potholes, or even during hard braking. This sound is caused by the worn bushing allowing metal-to-metal contact.
- Steering Wander or Pulling: The car may feel unstable, requiring you to make constant small steering corrections to keep it driving straight. This happens because the worn arm can no longer hold the wheel in the correct alignment.
- Vibrations: A failing control arm can cause vibrations that you feel through the steering wheel, especially at higher speeds. This is often due to the wheel wobbling slightly because of the loose components.
- Uneven Tire Wear: Check your front tires. If the inside or outside edge of the tread is wearing down much faster than the rest, it's a strong indicator of an alignment problem caused by a bad control arm.
- Visible Wheel Movement: In severe cases, you might see the front wheel shift forward or backward in the wheel well during braking.
Known Issue: Loose Control Arm Bolts (2000-2002 DeVille)
A Technical Service Bulletin (TSB) was issued for 2000-2002 Cadillac DeVille models regarding front lower control arm bolts that could loosen over time. When replacing the arms, ensure the bolts are torqued to the correct specification with the vehicle's full weight on the suspension.
Choosing the Right Aftermarket Control Arm
For a vehicle of this age, a quality aftermarket control arm assembly is often the most sensible and cost-effective choice. The assembly comes with the ball joint and bushings pre-installed, saving significant labor time. Here’s a breakdown of common brands:

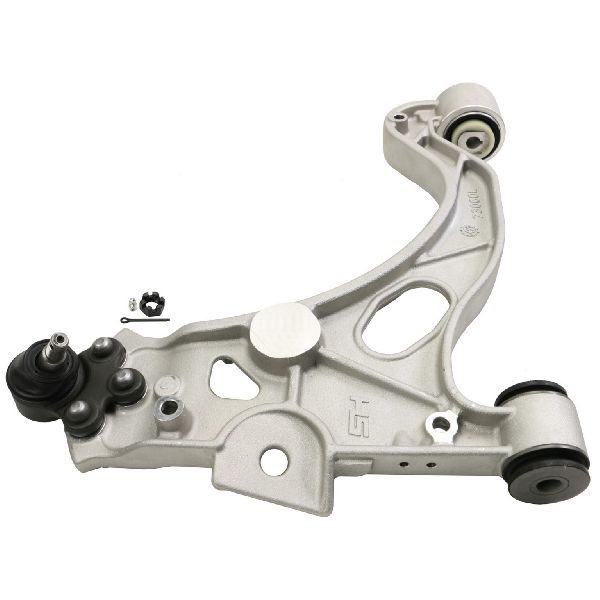

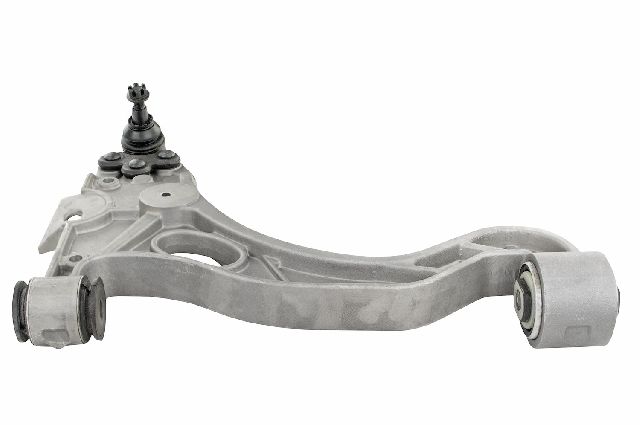

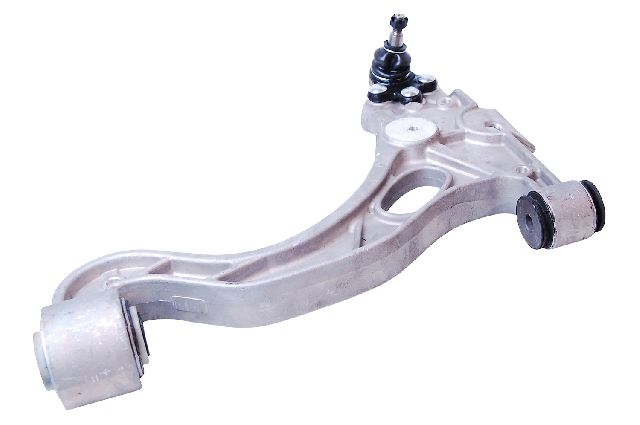

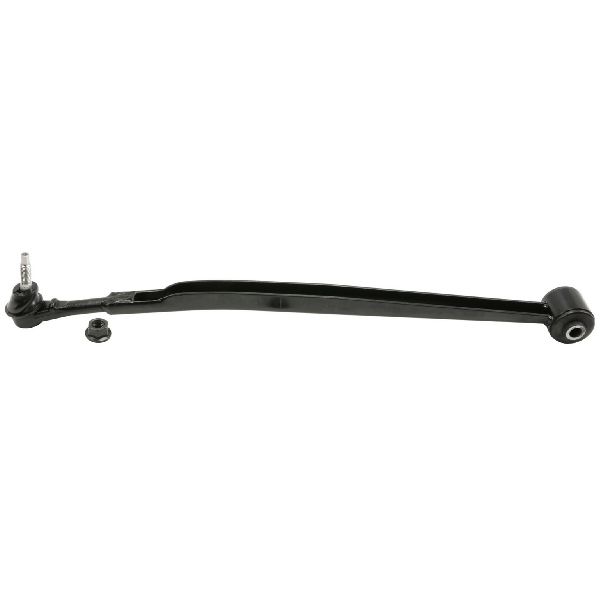

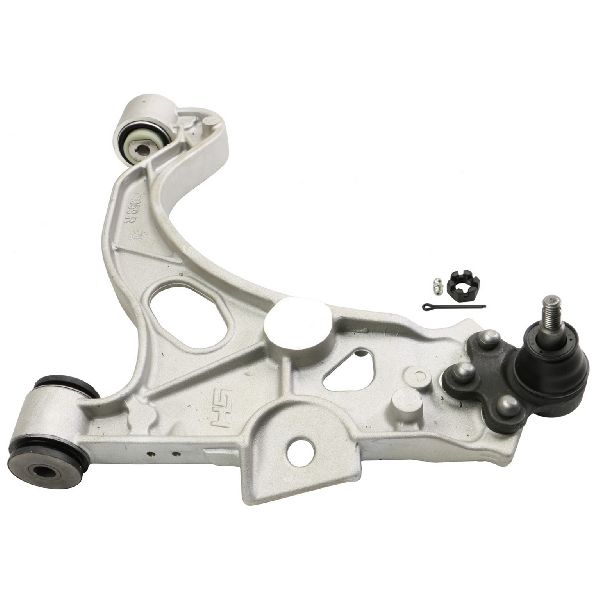

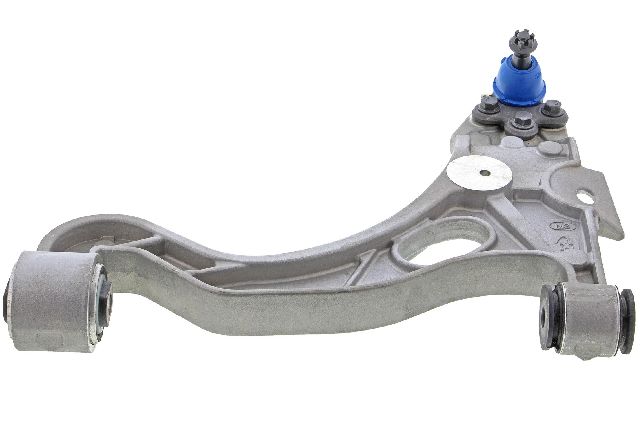

- Premium Brands (Moog, Mevotech): Brands like Moog (Problem Solver series) and Mevotech (Supreme or TTX lines) are often considered premium aftermarket choices. They may feature designs that are beefier than the original and often include greaseable ball joints for longer life. These are a solid choice if you plan to keep your DeVille for years to come.
- OE-Quality Brands (ACDelco, Delphi): ACDelco is GM's original parts brand, and their "Professional" line is generally seen as equivalent to the part your car came with. However, be aware that like many brands, they have different quality tiers and sources for their parts. Delphi is another major OEM supplier with a strong reputation.
- Value Brands (Dorman, Suspensia): Brands like Dorman offer direct replacement parts that meet original specifications and provide a good balance of quality and cost. They are a reliable choice for a daily driver and often come with coatings for corrosion resistance.
OEM vs. Aftermarket for Your DeVille
While an OEM part from Cadillac offers a guaranteed fit and quality, it can be very expensive for a car that is 20+ years old. A high-quality aftermarket assembly from a reputable brand like Moog or Mevotech can offer equal or even superior durability at a much lower cost, making it a smarter financial decision.
Replacement Cost for a 1996-2005 Cadillac DeVille
The cost to replace a control arm assembly can vary based on your location and the parts you choose. It is highly recommended to replace them in pairs to ensure balanced handling.
| Part/Service | Estimated Cost (per side) |
|---|---|
| New Aftermarket Assembly | $56 - $382 |
| New OEM Assembly | $479 - $481 |
| Shop Labor | $133 - $300 |
| Wheel Alignment (Required) | $100 - $150 |
| Total Professional Job (Aftermarket) | $289 - $832 |
Frequently Asked Questions (FAQ)
Do I absolutely need a wheel alignment after replacing a control arm?
Yes. Replacing a control arm will always change the wheel alignment. Skipping the alignment will cause poor handling, pulling, and will quickly destroy your tires. Factor the cost of an alignment into your repair budget.
Should I replace just one control arm or do both at the same time?
You should always replace control arms in pairs (both front left and front right). The parts on both sides have experienced the same wear. If one has failed, the other is likely close to failing, and replacing only one will result in unbalanced handling.
Can I just replace the ball joint or bushings instead of the whole arm?
While it's sometimes possible, it's not recommended. Pressing old bushings and ball joints out and new ones in requires special tools and a lot of labor. For a high-mileage vehicle, buying a complete assembly with new components already installed is easier, faster, and ensures all related parts are fresh.
Will a new control arm fix the "Service Suspension System" warning light?
No. The "Service Suspension System" or "SRC" message on your DeVille's dashboard relates to the electronic CVRSS shocks and sensors. The control arm is a purely mechanical part and replacing it will not resolve electronic suspension warnings.
Technical Specifications
The front suspension uses an upper and lower control arm design. The lower control arm is a common failure point. Assemblies come with pre-installed bushings and a ball joint. A TSB was issued for 2000-2002 models for loosening front lower control arm bolts, highlighting the need for correct torque procedures during installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
