Cadillac DeVille (1996-2005) Throttle Position Sensor Guide
Understanding the right replacement Throttle Position Sensor for your Northstar V8 is critical for performance and reliability.
- A failing TPS on a DeVille can cause severe drivability issues, including poor acceleration, rough shifting, and stalling.
- For the sensitive Northstar engine, it is highly recommended to use an OEM-grade replacement brand like ACDelco or Delphi to ensure compatibility and avoid repeat failures.
- Symptoms of a bad TPS can mimic other serious engine or transmission problems, so it's a logical and cost-effective first part to replace when these issues arise.
- A simple 'relearn' procedure is necessary after installation to calibrate the new sensor with the car's computer.
Is a Bad Throttle Position Sensor Causing Your DeVille's Problems?
The Throttle Position Sensor (TPS) is a common failure point that can cause significant drivability issues in the 1996-2005 Cadillac DeVille. Because this sensor provides critical data to the engine computer about throttle angle, a bad sensor can mimic a variety of other, more serious problems. Symptoms often appear suddenly and can include a Check Engine Light, poor acceleration, and even transmission shifting problems.
Check Engine Light and "Limp Mode"
A failing TPS will almost always trigger the Check Engine Light. In some cases, the car's computer may enter a "Reduced Engine Power" or "Limp Mode" to prevent potential damage, severely limiting your speed and acceleration. This is a clear sign to get the sensor inspected immediately.
Symptoms of a Failing TPS on a Cadillac DeVille
- Hesitation or Stumbling on Acceleration: The car may pause or jerk when you press the gas pedal.
- Poor or No Power: The engine feels sluggish and doesn't respond as it should.
- Erratic or Rough Idle: The engine RPM may fluctuate unpredictably at a stop.
- Hard or Delayed Transmission Shifting: The TPS provides data for shift points, so a bad sensor can cause harsh or incorrect gear changes.
- Sudden Engine Stalling: The engine may stall unexpectedly when you come to a stop or at low speeds.
- Drastic Drop in Fuel Economy: An incorrect air-fuel mixture caused by a bad sensor can lead to burning more fuel. 🎬 Watch a detailed breakdown of common TPS failure symptoms.
Choosing the Right Aftermarket TPS: Brand Tiers
For a sensitive system like the DeVille's Northstar engine, the quality of the replacement TPS matters. The engine computer is calibrated to the specific voltage range of the original sensor. Using a low-quality part can lead to ongoing issues, even after replacement.
| Tier | Brands | Our Take |
|---|---|---|
| OEM / Premium Aftermarket | ACDelco, Delphi | These are the original equipment manufacturers or suppliers. Choosing ACDelco or Delphi is the safest bet for plug-and-play compatibility and long-term reliability. They are engineered to match the exact specifications your DeVille's computer expects. |
| Trusted Aftermarket | Standard Ignition (SMP), NGK/NTK, Walker Products | These brands have a solid reputation in the aftermarket for producing quality sensors. They are a reliable choice if OEM parts are unavailable or out of budget, often meeting or exceeding original specifications. |
| Budget / Economy | Dorman, URO Parts, Replacement, True Tech, Global Parts, Motorad | These brands offer a more affordable solution. However, quality can be inconsistent. While they may work, there is a higher risk of incorrect voltage signals, which can cause persistent drivability problems on a sensitive Northstar engine. Consider these if budget is the absolute primary concern, but be aware you may not solve the issue permanently. | 🎬 Learn why some replacement sensors fail to fix the problem.
Installation and Relearn Procedure
Replacing the TPS is a straightforward job for a DIYer with basic tools. It is located on the side of the throttle body and is typically held on by two screws. However, access can be tight, and sometimes removing the throttle body makes the job easier.
Pro Tip: After installing a new TPS, a "relearn" procedure is necessary so the computer can recognize the new sensor's baseline readings. A common method is to turn the ignition to the 'ON' position (without starting the engine) for one minute, then turn it 'OFF' for at least 15 seconds. This allows the computer to calibrate to the new sensor's idle and wide-open throttle positions.
🎬 See a step-by-step TPS replacement on a Cadillac Northstar.Frequently Asked Questions
Can I drive my DeVille with a bad throttle position sensor?
It is not recommended. While the car may be drivable, you could experience sudden stalling, lack of power when needed (like merging into traffic), and unpredictable shifting, all of which are significant safety risks. It's best to replace it as soon as possible.
Will a cheap TPS work on my Cadillac?
It might, but it's a gamble. The Northstar engine's computer is sensitive to the voltage signals from the TPS. A cheap sensor may not have the correct electronic properties, leading to the same symptoms you were trying to fix. For this specific car, it's highly recommended to use an OEM-quality brand like ACDelco or Delphi.
Is there a recall on the 1996-2005 DeVille throttle position sensor?
No specific recall was found for the throttle position sensor on the 1996-2005 Cadillac DeVille during a search of the NHTSA database. There were some special coverage adjustments for other GM models in different year ranges, but not for this specific vehicle and part.
What's the difference between a TPS and an Accelerator Pedal Position (APP) sensor?
The TPS is located on the throttle body on the engine and measures the opening of the throttle plate. Some newer vehicles also have an Accelerator Pedal Position (APP) sensor connected to the gas pedal itself. For the 1996-2005 DeVille, the primary sensor for this function is the TPS on the throttle body.
Helpful Videos

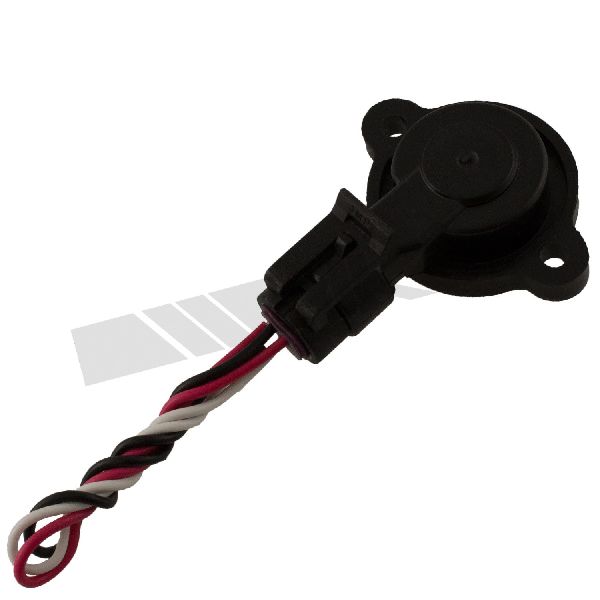

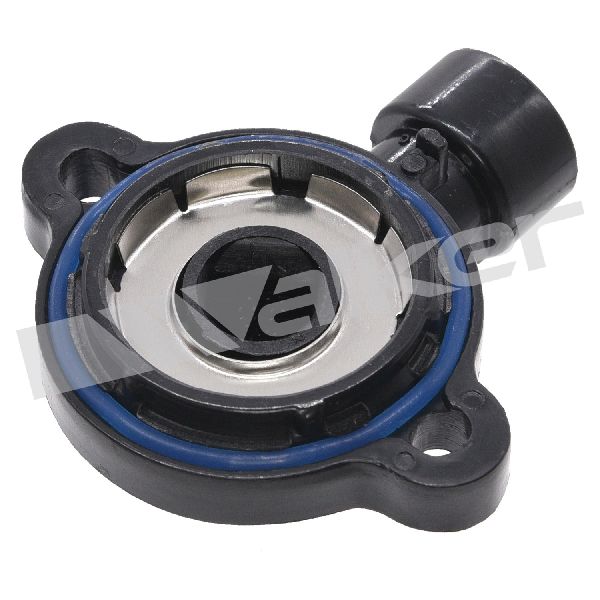

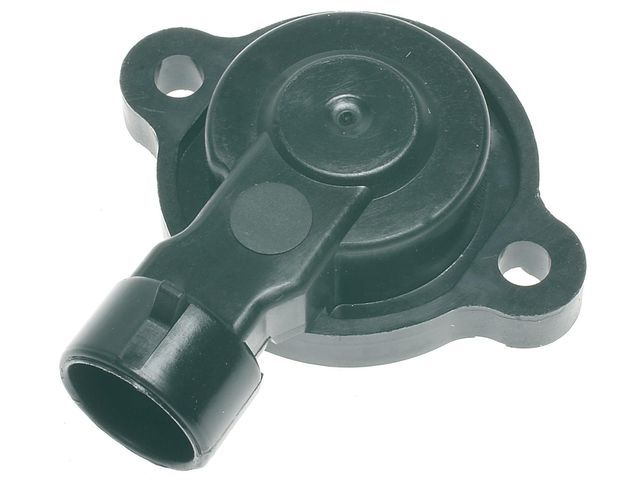

Technical Specifications
OEM Part Numbers: 17123852 17106684 88893282 17106682 2134668
3-prong blade male terminal, located on the throttle body. It is a potentiometer-style sensor that changes voltage based on throttle plate angle.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
