Choosing the Right Spark Plug Wire Set for a 1996-2005 Chevrolet Astro
Don't let failing spark plug wires leave your Astro van running rough; find the right replacement set here.
- The replacement is a difficult job due to very tight engine access; removing the front wheels and splash guards is often necessary.
- Always replace wires as a complete set and use dielectric grease on the boots to ensure a good seal and make future replacement easier.
- ACDelco (OEM) and Delphi are highly recommended for fit and quality, but brands like NGK and Standard Motor Products (SMP) are also reliable choices.
- Ensure wires are properly routed and secured in their clips to prevent heat damage from the exhaust manifold.
Symptoms of Failing Spark Plug Wires on an Astro Van
Due to the tight engine compartment and heat generated by the 4.3L V6, spark plug wires are a common wear item. When they start to fail, you'll notice. The insulation breaks down from heat and age, and the electrical connectors can loosen from vibration. This leads to a weak or inconsistent spark.
Common signs include:
🎬 Watch this video to see common signs of bad wires.- Rough Idling: The engine will shake or vibrate more than usual when stopped.
- Engine Misfires: You may feel a stutter or hesitation from the engine, especially when accelerating. This can trigger a Check Engine Light with codes like P0300 (random misfire) or P0301-P0306 for specific cylinders.
- Poor Acceleration: The van may feel sluggish or down on power.
- Reduced Fuel Economy: When the engine isn't burning fuel efficiently, your gas mileage will suffer.
- Difficulty Starting: Weak spark can make it harder for the engine to fire up.
Choosing the Right Aftermarket Spark Plug Wires
For the 1996-2005 Astro, you have several good aftermarket choices. While you can still get OEM parts, many aftermarket brands offer similar or even better quality for the price. It's important to get the correct wire set for your van, as some model years used a square (Mitsubishi-style) ignition coil 🎬 See which spark plug wires work best for your Astro. while others used a round (Delphi-style) coil.
Brand Quality Tiers
OEM-Quality/Premium Brands:

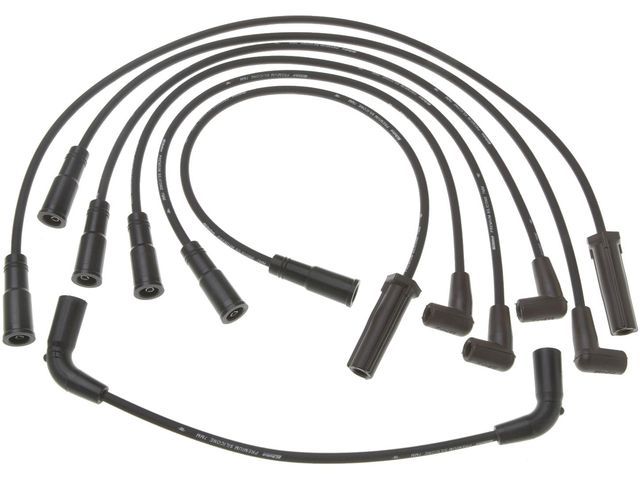

- ACDelco: As the original equipment manufacturer, ACDelco is a trusted choice. They offer both "Professional" and "Original Equipment" lines. The OE line is generally considered higher quality and a direct replacement. Be sure you are getting a genuine part, as counterfeits can be an issue.

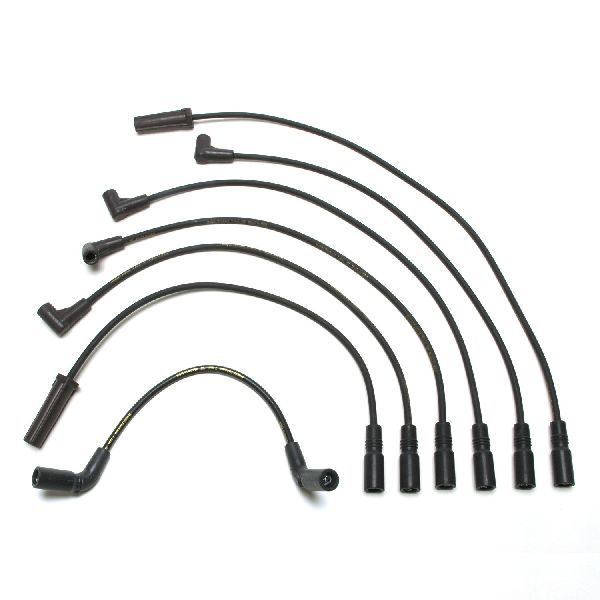

- Delphi: Delphi was once part of GM and is a major OEM supplier. Their wire sets are considered to be of similar quality to ACDelco and are an excellent alternative.
- NGK: Known for their high-quality spark plugs, NGK also produces excellent wire sets that are a reliable choice for the Astro.

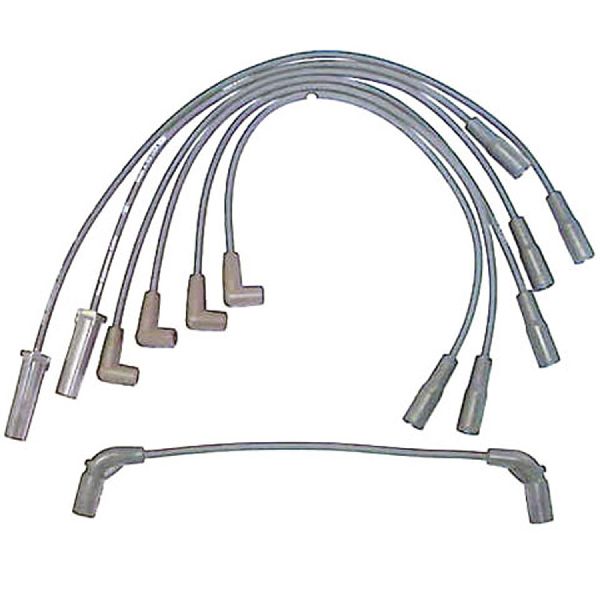

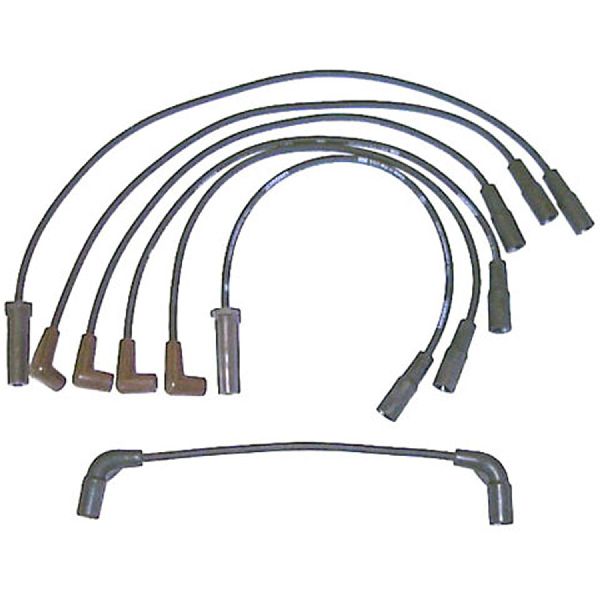

- Denso: Another top-tier OEM supplier, Denso wires are engineered to meet or exceed original specifications.
Performance Brands:
- MSD: MSD wires are a popular upgrade for those looking for enhanced performance and durability, often featuring better heat resistance and conductivity.
- Taylor Cable / Granatelli: These brands specialize in high-performance ignition components and offer wire sets with features like silicone jackets and robust construction for improved spark delivery.
Standard/Value Brands:

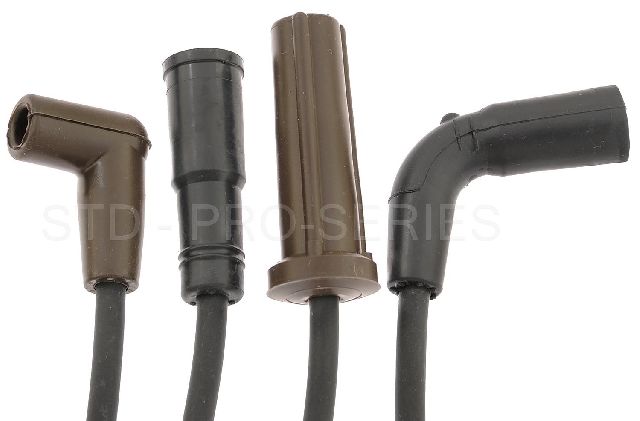

- Standard Motor Products (SMP): A well-regarded aftermarket brand that offers reliable, OE-style replacement wires.

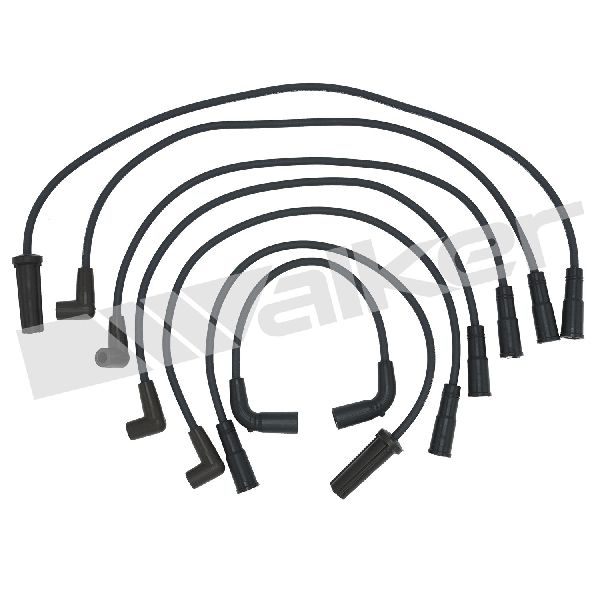

- Walker Products, Prenco, Pertronix: These brands provide functional, budget-friendly options that meet basic requirements for a daily driver.
A Note on Installation
Replacing the spark plugs and wires on a Chevy Astro is known to be a difficult job due to extremely tight access. The engine is tucked under the dashboard in a "doghouse," and reaching all the plugs and routing the wires correctly requires patience. Many owners find it necessary to remove the front wheels and inner fender splash guards to get better access, especially for the front-most and driver's side plugs. Because of the difficulty, it's crucial to use wire loom clips to keep the new wires away from hot exhaust manifolds and moving parts to prevent them from melting 🎬 Follow this guide to change your Astro's plugs and wires. or getting damaged.
Cost of a New Spark Plug Wire Set (1996-2005 Chevrolet Astro)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $30 - $106 |
| New OEM (ACDelco) | $60 - $120 |
| Shop Labor | $150 - $300 |
Note: Costs are estimates and can vary based on location, brand, and vehicle condition. The job is often done at the same time as spark plug replacement, which will increase total cost.
Frequently Asked Questions
How often do Astro spark plug wires need to be replaced?
A general guideline is every 60,000 to 100,000 miles, but it can be sooner due to the high-heat environment of the Astro's engine bay. Visual inspection for cracks, melting, or corrosion is the best way to know if they need replacement.
Can I replace just one bad wire?
It is highly recommended to replace the entire set at once. If one wire has failed due to age and heat, the others are likely not far behind. Replacing them all ensures consistent performance and prevents future misfires.
What is dielectric grease and do I need it?
Yes, using dielectric grease is a crucial step. Applying a small amount inside each boot prevents moisture from getting in, stops corrosion, and makes the wires easier to remove next time. It helps ensure a good electrical connection and protects the boots.
Are there any recalls for the Astro's spark plug wires?
No specific recalls were found for the spark plug wires on the 1996-2005 Chevrolet Astro. A recall for other GM vehicles mentioned removing spark plug wire retainers during a valve cover gasket replacement, but this was not for the Astro.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9746T 746KK 9746KK
7mm wire diameter is standard for most OEM and aftermarket sets. The key is ensuring the boot style (straight vs. angled) and length match the original wires for proper fit and routing. High-temperature silicone insulation is critical for durability in the Astro's engine bay.
