A Guide to the Rear Differential Cover for the 1996-2005 Chevrolet Blazer
Everything you need to know about fixing leaks and choosing the right aftermarket differential cover for your Blazer.
- The most common failure is a leak from rust or a bad gasket, identifiable by oil spots and a distinct burning smell.
- Confirm you have the common 10-bolt, 7.625-inch axle before buying parts.
- Aftermarket covers from brands like Dorman are affordable replacements, while heavy-duty cast iron covers from ARB offer superior protection for off-roading.
- Driving with a low differential fluid level can quickly lead to expensive damage to the internal gears.
Signs of a Failing Differential Cover
The most common problem with the differential cover on a 1996-2005 Blazer is leaking. Over time, the original stamped steel cover can rust through, especially in areas where salt is used on winter roads. The gasket that seals the cover to the housing can also get old, dry out, and fail. Sometimes, hitting a rock or debris can dent or puncture the cover, causing a sudden leak.
Key Symptoms to Watch For:
- Gear Oil Puddles: Dark, thick oil spots on your driveway are a sure sign of a leak.
- Wetness on the Differential: The back of the axle housing will look wet and be covered in a layer of greasy dirt.
- Burning Smell: Leaking gear oil can drip onto the hot exhaust pipe, causing a strong, unpleasant smell often described as being like sulfur or rotten eggs.
- Whining or Grinding Noises: If the oil level gets too low, the gears will not be properly lubricated. This can cause whining noises that change with speed, and eventually, severe grinding. This indicates serious internal damage is already happening.
Choosing the Right Aftermarket Differential Cover
When your Blazer's differential cover needs replacing, you have several aftermarket options that are often better than the original part. Factory covers are typically made of thin, stamped steel that is prone to rust and damage. Aftermarket covers offer better materials and features.
Brand Tiers for Your Blazer
Standard Replacement (Good):

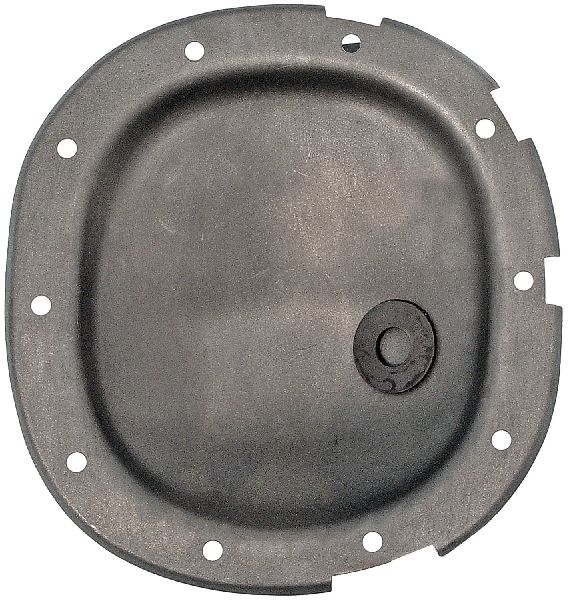

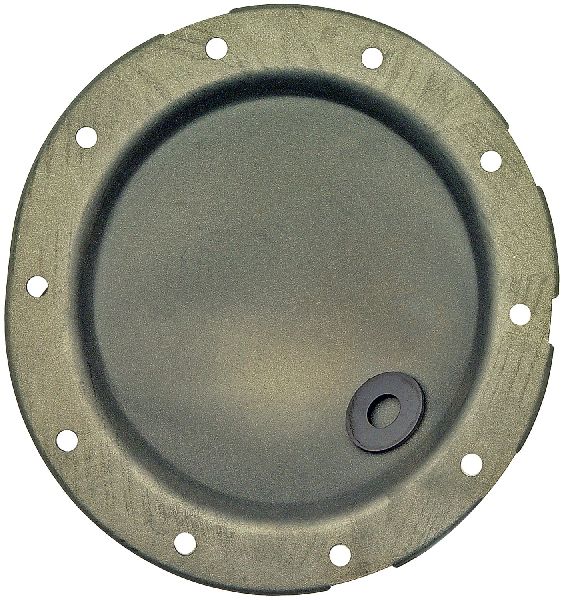

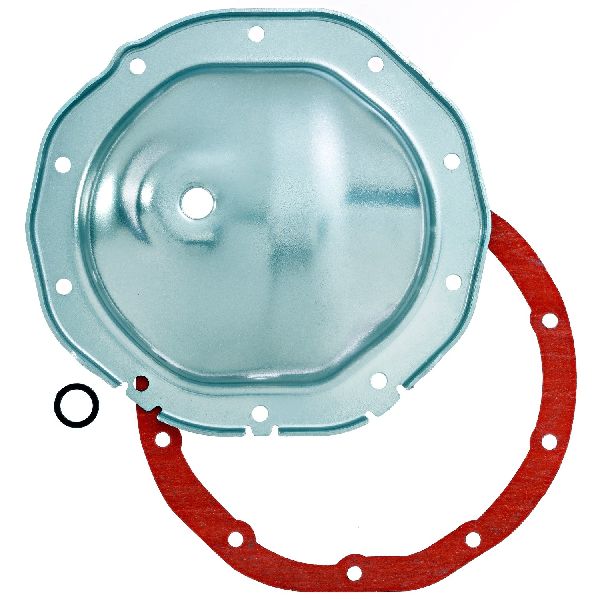

- Dorman, Replacement, ATP: These brands offer direct-fit replacements that are very similar to the original factory cover. They are typically made from stamped steel and are an affordable way to fix a leak. Some Dorman covers come with a drain plug, which makes future fluid changes much easier. While some users in forums express general concerns about Dorman's quality compared to OEM, they are a common and accessible repair part.
- Spectre: Spectre often provides chrome-plated steel covers. They function like a standard replacement but offer a custom look for a low price.
Heavy-Duty Upgrade (Better & Best):
- ARB: ARB covers are considered a top-tier upgrade, especially for 4x4 Blazers or those used for off-roading. They are made from extremely thick cast nodular iron that protects against rock impacts and strengthens the entire axle housing. Features often include a dipstick for checking fluid level and magnetic plugs to catch metal particles, but they are the most expensive option.

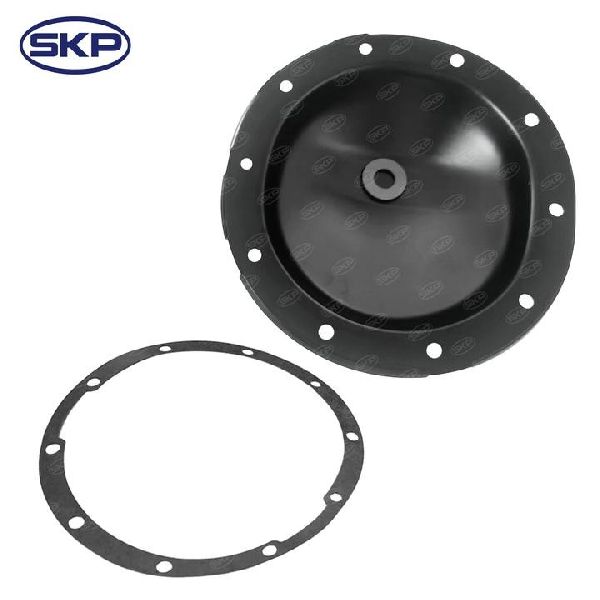

- Skyward: While less common in search results, brands in this category often offer cast aluminum or thicker steel designs that are a step up from basic replacements, sometimes including cooling fins or extra fluid capacity.
Pro Tip: Identify Your Axle First
Your 1996-2005 Blazer most likely has a GM 7.625-inch (also called 7.5-inch) 10-bolt rear axle. However, some models could have a larger 8.5-inch axle. Before ordering, it's wise to confirm. You can check the RPO codes on the sticker in your glove box (look for codes starting with 'G') or simply count the 10 bolts on your differential cover to be sure.
Estimated Costs for Replacement
| Part | Estimated Cost |
|---|---|
| New Aftermarket Differential Cover | $38 - $73 (Standard); $200+ (Heavy-Duty) |
| Gasket or RTV Sealant | $10 - $25 |
| Gear Oil (approx. 2 quarts) | $20 - $40 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
Can I replace the differential cover myself?
Yes, this is a DIY-friendly job for someone with basic tools. The process involves safely jacking up the vehicle, draining the old oil, removing the 10 bolts, cleaning the gasket surface thoroughly, and installing the new cover and gasket before refilling with fresh gear oil. The hardest part is often cleaning off the old, baked-on gasket material.
Should I use a gasket or RTV sealant?
Both can create a reliable seal. A quality aftermarket gasket from a brand like Fel-Pro is easy to use. RTV sealant (make sure it's rated for gear oil) is also effective but requires careful application and allowing it to cure properly. If the new cover or the housing surface is scratched or slightly warped, RTV can sometimes provide a better seal.
What kind of gear oil does my Blazer need?
Your Blazer typically requires about two quarts of 80W-90 gear oil. If you have the G80 limited-slip differential (check your RPO codes), you may need to add a special friction modifier additive, though some modern gear oils already include it. Always check your owner's manual to be certain.
Are there any recalls for the differential cover?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls specifically for the differential cover on the 1996-2005 Chevrolet Blazer.
Technical Specifications
OEM Part Numbers: 12471370
Fits GM 7.625-inch (also known as 7.5-inch) ring gear with a 10-bolt cover pattern.
