Engine Timing Cover Replacement Guide for the 1996-2005 Chevrolet Blazer
Addressing the common oil leaks and noises from the front of your Blazer's 4.3L V6 engine.
- The biggest challenge of this repair is dealing with the oil pan, which must be lowered for a proper seal, especially on 4WD models.
- After installation, a crankshaft position sensor relearn procedure must be performed with a scan tool.
- Due to the significant labor involved, it is highly recommended to also replace the timing chain, gears, water pump, and front crank seal.
- Be cautious with budget brands like Dorman, as many users report issues with poor fitment and leaking seals right out of the box.
Is Your Blazer's Timing Cover Failing?
The most common reason to replace the timing cover on a 1996-2005 Blazer is an oil leak. Over time, the plastic cover can become brittle from heat cycles, but more often, the front crankshaft seal it houses will harden and crack. This allows oil to seep out and drip from the front of your engine, making a mess on your driveway 🎬 Watch: Identifying a plastic timing cover leak on a 4.3L and leading to a low oil level.
Key Symptoms to Watch For:
- Oil Drips: Puddles or drips of oil on the ground directly under the front of the engine.
- Oily Grime: A thick layer of oily dirt and grime covering the front of the engine, especially around the main crankshaft pulley (harmonic balancer).
- Engine Noise: A rattling sound from the front of the engine between 1500-1800 RPM could indicate a worn timing chain. Since you have to remove the cover to fix this, it's a related issue.
The Oil Pan Complication
Replacing the timing cover on the 4.3L V6 is not as simple as just unbolting it. The bottom of the cover seals against the front of the oil pan. To replace it correctly, the oil pan must be lowered to allow the new cover to seat properly. On 4WD models, this is a major job that may require lowering the front differential or lifting the engine for clearance. Some mechanics try to avoid this by trimming the new cover and using extra sealant, but this is risky and often leads to leaks.
Choosing the Right Aftermarket Timing Cover
With your Blazer's age, an aftermarket timing cover is the most practical and available option. However, quality varies significantly between brands. The original GM cover was plastic, and most replacements are as well.
Brand Quality Tiers
- Good - Pioneer: While reviews for the specific Blazer part are limited, Pioneer's cast aluminum covers for other GM engines generally receive positive feedback for quality and fit. You might find the casting finish is rougher than OEM and may require cleaning some casting flash, but they are reported to seal well.

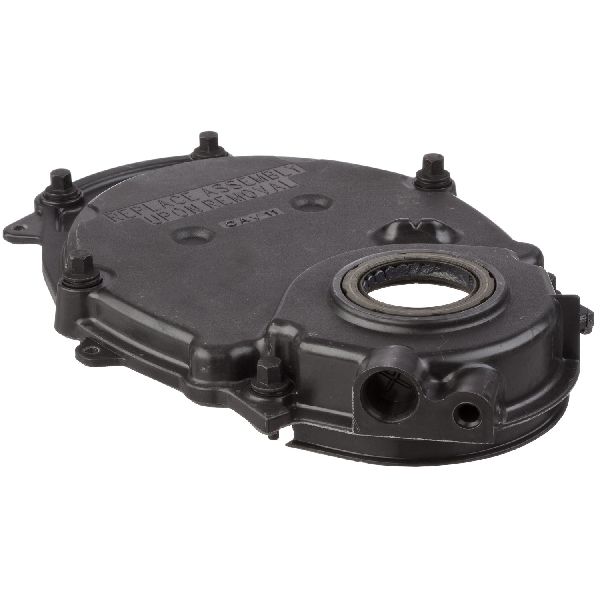

- Budget - ATP: ATP presents itself as an OE-quality alternative and is often a budget-friendly choice. However, reviews for other applications show potential quality control issues like incorrect seal bore sizes or mounting holes that need re-threading. Consider this a lower-tier option.
- Use with Caution - Dorman: Dorman is a widely available brand, but reviews for their 4.3L timing cover (part 635-502) are very mixed. Multiple owners report that the included crankshaft seal leaks immediately, the supplied bolts are low-quality and can snap, and most critically, the shape of the cover where it meets the oil pan can be incorrect, causing a major leak that's difficult to fix. Some users have had to physically modify the cover to make it fit.
Estimated Replacement Costs
The cost to replace the timing cover can vary widely based on whether your Blazer is 2WD or 4WD due to the labor involved in accessing the oil pan.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Timing Cover | $39.95 - $76.86 |
| Shop Labor | $450 - $1,200+ |
| Total Estimated Cost | $490 - $1,280+ |
Costs are estimates and will vary by location and repair shop. The high end of the labor estimate reflects the complexity of 4WD models.
Frequently Asked Questions
Do I have to drop the oil pan to replace the timing cover?
For a leak-free repair, yes. The timing cover and oil pan gasket interlock. While some attempt 🎬 See these essential tips for timing cover and oil pan installation to cut the new cover or use excessive sealant to get around this, it is not the proper procedure and has a high failure rate. On 4WD models, this is a significant job.
Do I need special tools for this job?
Yes. You will need a harmonic balancer puller to remove the main crankshaft pulley. You will also need a torque wrench and a good set of sockets and wrenches. After the repair, a professional-grade scan tool is needed to perform a "crankshaft position sensor relearn" procedure, which calibrates the new sensor position 🎬 Watch: How to perform a crankshaft and camshaft sensor relearn to the engine computer.
Should I replace the timing chain and water pump at the same time?
Absolutely. Since you have already done 90% of the labor to access these parts, it is highly recommended. On a higher-mileage 4.3L V6, the timing chain will have some slack. Replacing the chain, gears, and adding a timing chain tensioner (per GM TSB 03-06-01-024C) is a smart move. The water pump also bolts to the timing cover, so replacing it now saves you from a future repair.
Is the original GM timing cover better?
The original plastic covers are known to become brittle and the seals fail. While OEM parts are often preferred, for a vehicle of this age, a high-quality aftermarket part is a perfectly acceptable and more available solution. The key is choosing a brand with good quality control.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89017259
The timing cover for the 1996-2005 Chevrolet Blazer with the 4.3L V6 is typically made of plastic and includes an integrated gasket and a provision for the crankshaft position sensor.
