Chevrolet Cavalier Timing Cover Gasket Set: 1996-2005 Replacement Guide
Stop that oil leak from your Cavalier’s timing cover with the right parts and knowledge.
- You must correctly identify your engine (2.2L OHV, 2.2L Ecotec, or 2.4L DOHC) before ordering, as the gaskets are different.
- If you have a 2002-2004 2.2L Ecotec engine, it is critical to replace the timing chain tensioner with the updated design during this job.
- To save on future labor, replace the front crankshaft seal and consider replacing the water pump (on Ecotec models) and timing chain set at the same time.
- Premium aftermarket brands like Victor Gaskets (Reinz) and Fel-Pro offer reliable, long-lasting seals and are highly recommended over budget options.
Is Your Cavalier's Timing Cover Gasket Leaking?
The most obvious sign of a bad timing cover gasket is an oil leak. You will likely see oil on the front of the engine, below the pulleys, or dripping onto the ground. Because the 1996-2005 Cavalier has the engine mounted sideways, this leak will appear on the passenger side of the engine bay. Over time, the gasket material becomes hard and brittle from engine heat and will shrink, causing the seal to fail. While a small leak might not seem urgent, ignoring it can lead to low oil levels and potentially serious engine damage.
Engine Identification is Critical
Before buying any parts, you MUST identify your Cavalier's engine. The gasket sets are not interchangeable.

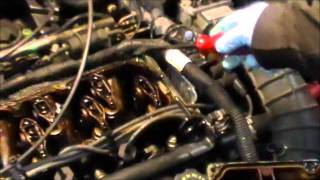

- 1996-2002: Most Cavaliers used the 2.2L LN2 (VIN 4) pushrod engine. This engine has a black, bumpy plastic valve cover. 🎬 Watch: Beginner's guide to identifying and replacing the valve cover gasket
- 2002-2005: These years used the newer 2.2L L61 Ecotec (VIN F) DOHC engine. This engine has a flat, silver aluminum valve cover with "Ecotec" written on it.
- 1996-2002: Some models came with the 2.4L LD9 (VIN T) DOHC engine. This is less common than the 2.2L engines.
Check the 8th character of your Vehicle Identification Number (VIN) to be sure.
Choosing the Right Aftermarket Gasket Set
For a part like this, the quality of the gasket material matters. While OEM gaskets from GM are a reliable choice, high-quality aftermarket brands offer excellent performance, often at a better price.
- Premium Brands (Victor Gaskets, Reinz): Brands like Victor Reinz and the very similar Fel-Pro are considered top-tier in the aftermarket world. Mechanics and experienced DIYers trust them for their durability and precise fit. Forum users often report that Victor Reinz gaskets feel pliable and seal very well. These are an excellent choice for a long-lasting repair.

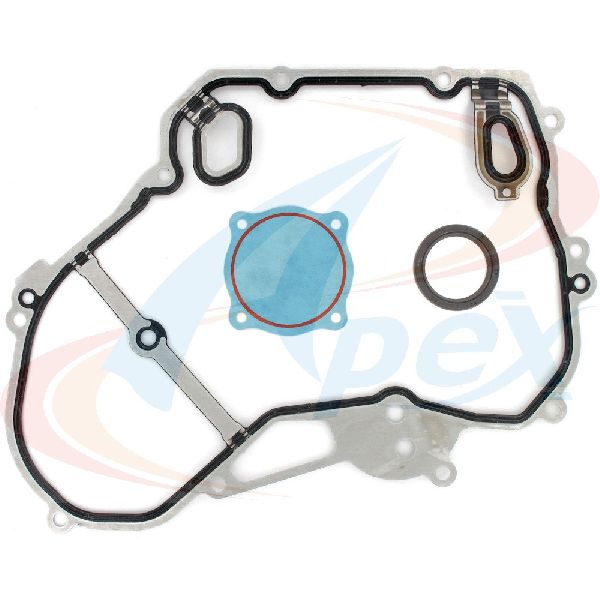

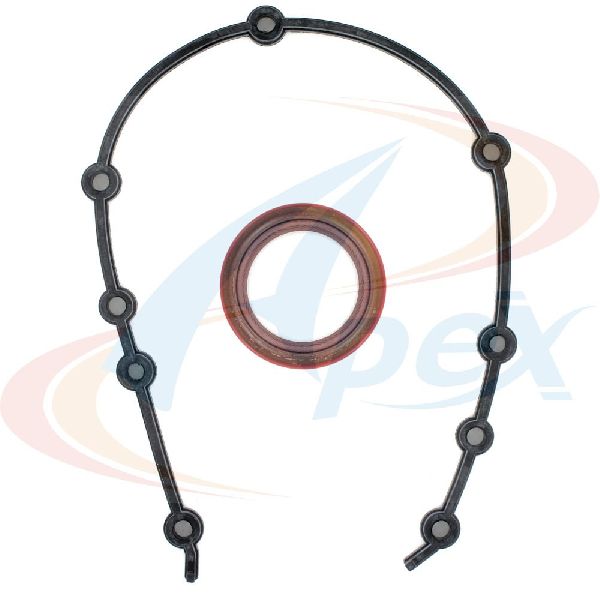

- Standard/Budget Brands (Apex): Apex is a more budget-friendly option. While some feedback has been positive, premium brands are generally recommended for a critical seal like the timing cover to avoid having to do the job twice.
Known Issues for Cavalier Owners
Ecotec Timing Chain Tensioner (2002-2004): The 2.2L L61 Ecotec engine in these years is known for a faulty timing chain tensioner design that could be starved of oil. This causes the timing chain to become loose, rattle, and potentially fail, which can destroy the engine. If you are removing the timing cover on an Ecotec engine for any reason, it is absolutely essential to replace the tensioner with the updated design. Quality aftermarket timing kits will include this new part.
What Else Should I Replace?
Since replacing the timing cover gasket requires significant labor, it's smart to replace other parts "while you're in there."

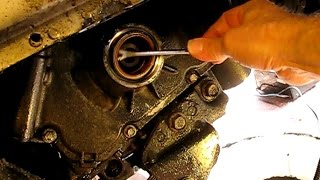

- Front Crankshaft Seal: This seal is located in the timing cover and seals around the main engine pulley (harmonic balancer). It should ALWAYS be replaced. 🎬 See this walkthrough for replacing the front crankshaft oil seal Most gasket sets include a new one.
- Timing Chain & Guides (High Mileage): On cars with over 100,000 miles, especially the Ecotec models, consider replacing the timing chain, guides, and sprockets.
- Water Pump: On the 2.2L Ecotec, the water pump is driven by the timing chain. Replacing it requires removing the timing cover, so this is the perfect time to install a new one.
Aftermarket vs. OEM Cost for 1996-2005 Cavalier
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $13.50 - $94.86 |
| New OEM Gasket Set | $75 - $165 |
| Shop Labor | $320 - $550 |
Frequently Asked Questions (FAQ)
Is this a difficult job to do myself?

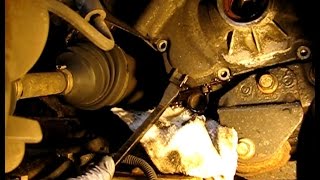

This is a moderately difficult job for a DIYer. It requires removing the serpentine belt, belt tensioner, and the main crankshaft pulley (harmonic balancer), which can be very tight. You will need a good set of tools, a torque wrench, and a harmonic balancer puller. 🎬 Watch: Removing the crank bolt and timing cover on an Ecotec For the Ecotec engine, a special tool may be needed to hold the timing chain in place. The job takes about 4-6 hours.
Do I need to remove the engine mount on my Ecotec?
Some guides state you do not need to remove the engine mount. However, a bolt for the mount may pass through the timing cover. Some mechanics work around this by carefully cutting a small slot in the new metal gasket to allow it to slide into place without fully removing the mount bolt, saving considerable time.
Can I reuse my old timing cover gasket?
No. Never reuse an old timing cover gasket. It has been compressed and heat-cycled, and it will not create a reliable seal if reinstalled. Gasket sets are inexpensive compared to the labor involved or the cost of engine damage from an oil leak.
Are there any recalls for this part?
No, there have been no safety recalls issued by the NHTSA for the timing cover gasket on the 1996-2005 Chevrolet Cavalier.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24575933 12585045 24576620
Fitment varies by engine. The primary engines are the 2.2L LN2 OHV (VIN 4) and the 2.2L L61 Ecotec DOHC (VIN F). Gasket materials are typically multi-layered steel (MLS), rubber, or composite. Sets include the main cover gasket and front crankshaft seal.
