A Guide to the Starter on Your 1996-2005 Chevrolet Express 2500
Understand common starter problems and learn how to choose the right new aftermarket replacement for your work van.
- Always test the battery first; a weak battery can mimic starter failure symptoms.
- A single, loud click when turning the key is a classic sign of a bad starter motor.
- Accessing the starter bolts can be tight; a long socket extension and swivel joint are recommended tools.
- For a work vehicle, choosing a premium aftermarket brand like Bosch or Denso can provide better long-term reliability.
Is Your Express 2500 Starter Failing?
When a starter begins to fail, it gives several warning signs. The most common is a 'click-no-start' situation where you turn the key and hear a single, solid click, but the engine doesn't crank. This usually means the starter's solenoid is working, but the motor itself is not. Other symptoms include a slow, sluggish engine crank, intermittent starting problems, or a grinding noise during startup.
🎬 Watch this guide on the five signs of a bad starter.Don't Get Stranded
A failing starter is not a problem to ignore. While it might start intermittently for a while, it will eventually fail completely, leaving you unable to start your van. It's best to address the issue as soon as symptoms appear.
Known Issues for This Generation
While no specific recalls or widespread Technical Service Bulletins (TSBs) exist for the starter motor itself on the 1996-2005 Express 2500, these vans are prone to issues that can mimic or cause starter failure. One common problem is a no-crank, no-start condition that can be caused by a faulty starter relay or loose electrical connections, not necessarily the starter motor itself. The large V8 engines generate significant heat, which can degrade wiring and connections over time. A loose positive battery connection at the starter is a known cause for a no-crank condition on some GM trucks and should be checked.
🎬 See how to diagnose a no-crank condition on a Chevy Express.Choosing a New Aftermarket Starter
For a workhorse like the Express 2500, reliability is everything. When choosing a new aftermarket starter, you'll find a wide range of quality and price. It's often better to invest in a quality part to avoid repeated repairs.
- Premium Brands (Bosch, Denso): These companies are often the original equipment (OE) manufacturers for many automakers. Their aftermarket parts, whether new or remanufactured, are generally built to high standards and are a top-tier choice for reliability.
- Established Aftermarket (Remy): Remy has a long history in starters and alternators. They offer a balance of quality and price, though some forum users suggest their quality has varied over the years.
- Standard Replacement (BBB Industries, WAI Global): These brands offer a cost-effective solution. WAI Global manufactures new starters tested to OEM specifications. BBB Industries primarily offers remanufactured units. While they provide value, some user reviews and forum discussions suggest paying close attention to warranty and return policies.
New vs. Remanufactured
A 'new' aftermarket starter is made with all-new components. A 'remanufactured' starter has been rebuilt from an original starter core, with wearable parts like brushes and bushings replaced. A quality remanufactured part from a top brand like Bosch or Denso can be just as reliable as a new one.
What Will a New Starter Cost?
The cost can vary significantly based on the brand you choose and local labor rates. Here is a general estimate for the 1996-2005 Chevrolet Express 2500.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter Part | $98 - $348 |
| Shop Labor | $94 - $138 |
| Total Installed Cost | $192 - $486 |
(Prices are estimates and do not include taxes or fees. Your cost may vary.)
Frequently Asked Questions
How do I know if it's the starter or the battery?
This is the most common question. If you turn the key and hear rapid clicking, it often points to a low battery. If you hear a single, loud click, the starter is more likely the culprit. A simple test is to try jump-starting the van. If it starts right up with a jump, your battery is the likely problem; if it still just clicks or cranks slowly, the starter is the primary suspect.
🎬 Learn more about identifying the symptoms of a failing starter motor.Is replacing the starter a DIY job?
For a moderately skilled DIYer, yes. The job typically involves disconnecting the battery, raising the vehicle for access, removing electrical connections from the starter, and unbolting the starter from the engine block. Access can be tight on a van, so having a good set of wrenches, long extensions, and a swivel socket is helpful. Always disconnect the battery's negative terminal before starting any work.
Is an aftermarket starter as good as the original GM part?
It depends on the brand. A premium aftermarket starter from a brand like Bosch or Denso is often engineered to meet or exceed original equipment (OE) specifications and can be an excellent choice. In some cases, they are the same company that made the original part for GM. Value-oriented brands may not have the same longevity as an OE or premium aftermarket part, but they offer a functional replacement at a lower cost.
Why does my new starter sound different from the old one?
Many modern aftermarket starters are a 'gear reduction' design. This design uses internal gears to multiply the motor's torque, allowing for a smaller, lighter, and more efficient unit that often spins faster. This can result in a higher-pitched 'whirring' sound compared to the older, direct-drive starter your van may have had from the factory.
Helpful Videos

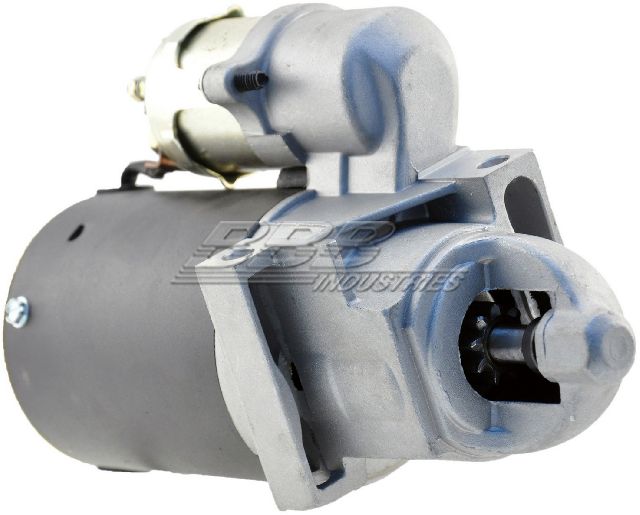

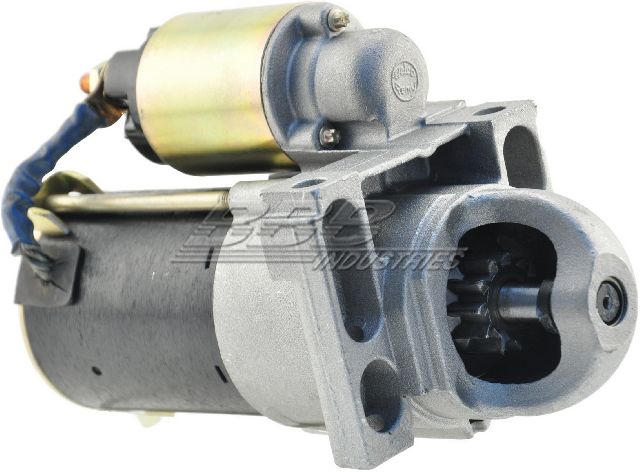

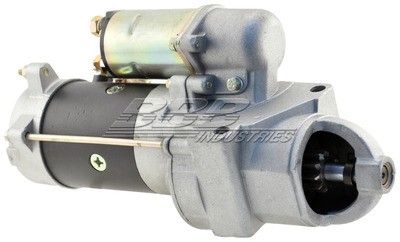

Technical Specifications
OEM Part Numbers: 10465578 12563908 12572715 19136219 9000879
The starter for this vehicle is typically a 12-volt, clockwise rotation unit. Depending on the engine (4.3L, 5.0L, 5.7L, 7.4L, 8.1L V8s), it may be a direct-drive or a permanent magnet gear reduction (PMGR) type with an 11-tooth pinion gear and a power rating around 1.5-1.7 kW.
