Mass Air Flow Sensor Guide for 1996-2005 Chevrolet Express 3500 Vans
Fix poor engine performance and bad gas mileage on your Chevy Express 3500 by understanding, diagnosing, and replacing a faulty Mass Air Flow sensor.
- A bad MAF sensor will cause poor performance, bad fuel economy, and a check engine light.
- Replacement is very easy and can be done in under 30 minutes with basic tools.
- For best results and reliability, choose an OEM-quality brand like Delphi, which was likely the original GM supplier.
- Always try cleaning the sensor with dedicated MAF cleaner before buying a new one, as it might solve the issue.
Is Your Express 3500 Running Rough? It Could Be the MAF Sensor.
If your van is hesitating, idling poorly, or using more gas than usual, a failing Mass Air Flow (MAF) sensor is a common suspect. This sensor gets dirty or wears out over time, sending bad information to the engine's computer. This can cause the engine to run too rich (too much fuel) or too lean (not enough fuel), leading to a variety of driveability problems. Before you replace it, you might try cleaning it with a dedicated MAF sensor cleaner spray 🎬 Watch this guide on how to properly clean your sensor., as this can sometimes solve the problem. However, if the sensor has failed electronically, cleaning won't help, and a replacement is necessary.
🎬 Learn how to test your sensor before buying a replacement.Common Ordering Mistake
Pay close attention to whether you need just the sensor element or the complete assembly with the housing. Some aftermarket parts are sensor-only, while others include the plastic tube it mounts in. Check your existing setup before ordering to ensure you get the right configuration.
Choosing the Right Aftermarket MAF Sensor
When it comes to engine sensors, quality matters. A cheap, poorly calibrated sensor can cause the same problems as a broken one, or even create new ones. For a workhorse like the Express 3500, reliability is key. Here’s a breakdown of available brands to help you choose.
Tier 1: OEM Quality & Top-Tier Aftermarket

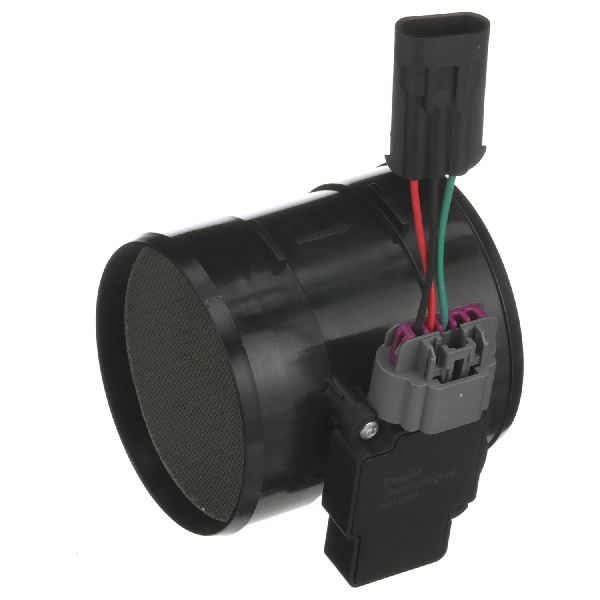

- Delphi: Delphi was the original parts division for GM, and their parts are often identical to the original AC Delco part. They are widely considered an OEM-equivalent replacement that offers excellent reliability and performance.
- NGK/NTK: Known for their ignition components and oxygen sensors, NTK (an NGK brand) also produces high-quality MAF sensors built to meet or exceed original specifications.
- Hella: A respected German brand known for electronics and lighting, Hella offers quality replacement sensors that are a dependable choice.
Tier 2: Reputable Aftermarket Brands
- Spectra: Spectra Premium sensors are generally well-regarded and road-tested to ensure performance. They use ceramic circuit boards for durability. While some mixed reviews exist, they are a solid mid-range option.
- Standard Ignition (SMP): A long-standing name in aftermarket parts, Standard Motor Products offers direct-fit replacements that are extensively tested to OE specs.
- Walker Products: Walker is another established brand that provides reliable aftermarket sensors and is a good alternative to more expensive options.
Tier 3: Budget-Friendly Options
- Cardone: Cardone offers both new and remanufactured MAF sensors. While they provide a cost-effective solution, forum discussions show mixed experiences, with some users reporting success and others having issues with remanufactured units.
- DriveWire / Global Parts: These brands fall into the budget category. While they can work, they may have a higher risk of calibration issues or shorter lifespan compared to premium brands. They are best considered when the budget is the primary concern.
Pro Tip: Reset the Computer
After installing a new MAF sensor, it's a good idea to disconnect the negative battery terminal for about 15 minutes. This clears the engine computer's memory and allows it to relearn fuel trims with the new sensor's accurate readings.
Known Issues, Recalls, and Service Bulletins
Searches for the 1996-2005 Chevrolet Express 3500 did not reveal any specific recalls or Technical Service Bulletins (TSBs) directly related to the Mass Air Flow sensor for this model year range. However, a later TSB for different model years (24-NA-158) indicates that water getting into the MAF sensor connector can cause issues like a P0102 code, requiring replacement of both the sensor and the connector. While not specific to the 1996-2005 generation, it highlights the importance of ensuring the connector is clean, dry, and securely fastened.
Cost of Replacing a MAF Sensor on a 1996-2005 Express 3500
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $80 - $279 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost | $130 - $379 |
Costs are estimates and can vary based on your location, the specific part brand chosen, and your mechanic's labor rates.
Frequently Asked Questions (FAQ)
Can I just clean my old MAF sensor instead of replacing it?
Sometimes, yes. If the sensor wire is just dirty, cleaning it with a dedicated MAF sensor cleaner spray can restore its function. This is a good first step. However, if the sensor's internal electronics have failed, cleaning will not fix it, and you will need a replacement.
What are the main signs of a bad MAF sensor on this van?
The most common symptoms are a Check Engine Light (with codes like P0101, P0102, P0103), rough idle, hesitation or jerking during acceleration, poor fuel economy, and sometimes black smoke from the exhaust.
Is it hard to replace the MAF sensor myself?
No, this is a very easy job for a DIYer. It usually involves loosening a couple of hose clamps, unplugging an electrical connector, and removing a few screws. The sensor is located right on the main air intake tube and is easily accessible. The entire job typically takes less than 30 minutes.
🎬 See a quick walkthrough of the replacement on an Express.Should I buy a sensor with the housing or the sensor only?
Inspect your current part first. On these vans, the sensor element often unbolts from the plastic housing. If your housing is not cracked or damaged, you can usually save money by buying just the sensor element. If the housing is damaged or the new part is sold as a complete, sealed assembly, you will need to replace the whole unit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25326895 88892543 97209545
Typically a 3-wire or 5-wire sensor, depending on the specific engine and year. The 5-wire versions integrate the Intake Air Temperature (IAT) sensor. May be sold as a sensor element only or as a complete assembly with housing.
