Ford Explorer Ignition Lock Cylinder: A 1996-2005 Replacement Guide
Struggling with a stuck key or a no-start condition in your Explorer? Your ignition lock cylinder is the likely cause.
- For 1998+ models, you must address the PATS anti-theft system. Re-keying the new cylinder to your old key is the best DIY method.
- The physical replacement is very simple: turn the key to 'ON', press a pin from underneath, and pull the cylinder out.
- Symptoms almost always involve the key sticking, binding, or failing to start the vehicle.
- Choosing a quality brand like Standard or Dorman can provide a better feel and longer life than budget options.
Is Your Ignition Lock Cylinder Failing?
The ignition cylinder in the 1996-2005 Ford Explorer is a common wear item. The internal tumblers and springs wear down from thousands of key turns. When this happens, you'll notice some very specific and frustrating symptoms.
Common Failure Symptoms:
- Key Won't Turn: The most common failure. The key feels completely stuck in one position, often the 'Off' or 'Accessory' position.
- Key is Hard to Insert or Remove: You feel resistance, binding, or have to jiggle the key to get it in or out of the cylinder.
- No-Start Condition: You can turn the key, but the engine doesn't crank. The cylinder isn't properly engaging the ignition switch behind it.
- Intermittent Starting: The vehicle only starts sometimes, often requiring you to wiggle the key while turning it.
The PATS Anti-Theft System: The Most Important Factor
Most 1998 and newer Ford Explorers are equipped with the Passive Anti-Theft System (PATS). Your key has a small transponder chip inside that the vehicle must recognize to allow the engine to start. If you simply install a new lock cylinder with its new keys, your Explorer will not start. The 'THEFT' light on your dashboard will likely flash rapidly. You have two main options:
- Re-key the New Cylinder (Recommended DIY): Most aftermarket kits come with a new set of tumblers and springs. You can assemble the new cylinder to match your original, PATS-programmed key. This is the easiest and cheapest solution as it requires no special programming.
- Program New Keys: Install the new cylinder with its new keys and have a dealership or automotive locksmith program the new keys to your vehicle's computer. This is required if you've lost all your original keys. Some Dorman kits include a DIY programmer that plugs into your OBD-II port.
Choosing the Right Aftermarket Ignition Cylinder
When shopping for a replacement, you'll find several brands available. Quality directly impacts how smoothly the key operates and how long the part lasts.
- Motorcraft (OEM): This is Ford's official parts brand and serves as the benchmark for fit, quality, and durability. It is the most expensive option but guarantees original performance.
- Standard Motor Products (SMP): A well-respected aftermarket brand known for producing high-quality components that meet or exceed OEM specifications. Often trusted by professional mechanics.

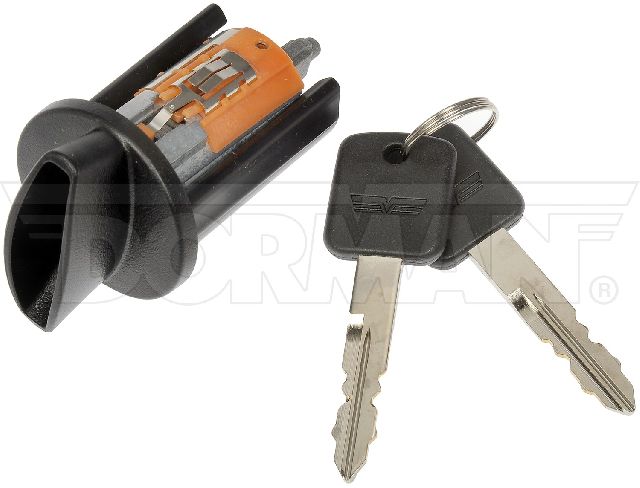

- Dorman: A popular brand famous for its innovative solutions. Dorman often offers 'OE FIX' kits that may include a DIY key programmer, which can save you a trip to the dealer.
- Replacement / Store Brands: These are the most budget-friendly options. They will get the job done, but may not have the same long-term durability or key-feel as premium brands.
Pro Tip: Re-Keying is Easier Than It Sounds
If you choose to re-key your new cylinder, the process is straightforward. The kit usually includes a diagram. You remove the old tumblers from your original cylinder one by one, note their position, and install the corresponding new tumblers into the new cylinder in the same order. This ensures your old, chipped key will work perfectly.
Cost of Replacing an Ignition Lock Cylinder
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Dorman, Standard, etc.) | $30 - $131 |
| New OEM (Motorcraft) | $75 - $150 |
| Shop Labor | $100 - $180 |
Costs are estimates and can vary by location and supplier. Labor does not include key programming if needed.
Frequently Asked Questions
Can I replace the ignition lock cylinder myself?
Yes, the mechanical replacement is very easy on a 1996-2005 Explorer. It typically takes less than an hour with basic tools. The main challenge is dealing with the PATS anti-theft system, but re-keying the new cylinder to match your old key is a very manageable DIY task.
What tools do I need for the replacement?
You will need your key, a small pick or a thin punch (like an Allen key), and possibly a flat-blade screwdriver. If you are re-keying the cylinder, the kit may include a special tool, and you'll want small needle-nose pliers and grease.
How do I remove the old cylinder?
Insert your key and turn it to the 'ON' position (the first click forward). On the bottom plastic shroud of the steering column, there is a small access hole. Insert a pick or punch into this hole and press upward to depress a locking pin. While holding the pin up, you can pull the entire lock cylinder straight out.
Do I need to disconnect the battery?
It is always a good safety practice to disconnect the negative battery terminal before performing any work on the ignition system.
Are there any recalls for this part?
Searches of the NHTSA database did not show any specific recalls for the ignition lock cylinder on the 1996-2005 Ford Explorer. Recalls found were for newer models or different components.
Helpful Videos
Technical Specifications
OEM Part Numbers: F87Z-11582-AA F57Z-11582-A F67Z-11582-AA
Vehicle-specific lock cylinder with compatibility for Ford's Passive Anti-Theft System (PATS) on most 1998-2005 models. Replacement often requires re-keying or programming.
