GMC Jimmy Automatic Transmission Mount: A Complete Guide (1996-2005)
Stop the clunking and shaking in your Jimmy by understanding and choosing the right transmission mount.
- A loud 'clunk' when shifting into gear is the most common symptom of a bad transmission mount.
- For this vehicle, a standard aftermarket brand like Anchor or Westar is a cost-effective and suitable repair.
- Ignoring a bad mount can lead to damage to other parts, including engine mounts and the exhaust system.
- This is a DIY-friendly repair that can be done in about an hour with basic tools.
Symptoms of a Failing Transmission Mount
When the rubber on your Jimmy's transmission mount wears out, cracks, or separates, it can no longer do its job. This failure often mimics more serious transmission problems. Before you worry about a costly transmission rebuild, check for these common symptoms of a bad mount:
- Clunking or Banging Noises: The most common sign is a loud "clunk" or "bang" when you shift from Park into Drive or Reverse. You might also hear it during hard acceleration or when letting off the gas. This is the sound of the transmission itself moving and hitting other components.
- Excessive Vibration: A new mount absorbs vibrations, but a worn one lets them pass right into the cabin. You'll feel an unusual vibration through the floor and seat, especially when idling in gear or accelerating.
- Drivetrain Movement: A bad mount allows the engine and transmission to move more than they should. A helper can put the vehicle in gear while holding the brakes and you can watch for excessive engine lurching (stand safely to the side, never in front).
Don't Ignore a Bad Mount
Continuing to drive with a broken transmission mount can cause other problems. The extra movement puts stress on your engine mounts, driveshaft U-joints, exhaust pipes, and even coolant hoses, leading to more expensive repairs down the road.
Choosing the Right Aftermarket Mount
For a vehicle like the 1996-2005 GMC Jimmy, you don't necessarily need to buy an expensive OEM part from a dealer. The aftermarket offers several good-quality, affordable options that are perfect for a daily driver. The main brands you'll find are Anchor, Westar, and DEA.
- Standard Replacement (Anchor, DEA, Westar): These brands are the most common and offer a great value. They are designed to meet original factory specifications and are a reliable choice for most owners. Forum discussions among mechanics and DIYers suggest that while they are budget-friendly, quality can sometimes vary. One detailed comparison found an Anchor mount had thicker metal than a comparable Westar part, while the Westar's rubber was harder. For a 20+ year-old truck, any of these brands will be a significant improvement over a failed mount and offer a cost-effective repair.
- OEM (Original Equipment Manufacturer): This is the part you would get from a GM dealer. It guarantees a perfect fit and the same quality as the original, but it comes at a much higher price. For an older vehicle, this is usually not necessary unless you are doing a concours-level restoration.
Pro Tip: While you're replacing the transmission mount, take a close look at your two engine mounts. Since they are all the same age, they are likely in similar condition. Replacing all three at once can save you from doing the job again in a few months and will make your Jimmy's drivetrain feel solid and smooth.
Cost of Replacing a Transmission Mount (1996-2005 GMC Jimmy)
| Item | Estimated Cost |
|---|---|
| New Aftermarket Mount | $14 - $31 |
| New OEM Mount | $100 - $160 |
| Shop Labor | $100 - $200 |
| Total (DIY) | $14 - $31 |
| Total (Shop Repair) | $114 - $231 |
Frequently Asked Questions
Is it hard to replace a GMC Jimmy transmission mount?
No, this is a relatively easy job for a DIYer with basic tools. It involves supporting the transmission with a floor jack and a block of wood, removing a few bolts, and swapping the mount. The most common difficulty is dealing with rusted bolts on an older vehicle.
How many transmission mounts does my GMC Jimmy have?
Your Jimmy has one transmission mount located at the rear of the transmission on the crossmember. It also has two engine mounts at the front of the vehicle.
Will a new mount fix my transmission shifting problems?
A new mount will not fix internal transmission issues. However, if your "problem" is a harsh clunk when putting it in gear, a new mount will likely solve it. It will not fix issues like slipping gears or failing to shift, which are signs of other problems.
Were there any recalls on the Jimmy transmission mount?
No. A search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls or technical service bulletins (TSBs) specifically for the transmission mount on the 1996-2005 GMC Jimmy.
Technical Specifications
OEM Part Numbers: 15731237

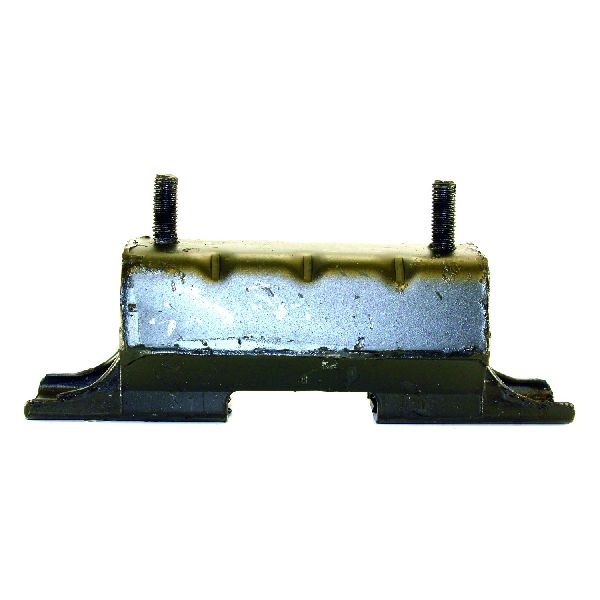

The mount is designed for the 4L60-E automatic transmission. It consists of a rubber block vulcanized to two metal plates that bolt to the transmission housing and the frame crossmember.
