GMC Jimmy Engine Mount Guide: 1996-2005
Stop excessive engine vibration and clunking noises by choosing the right replacement engine mount for your 4.3L V6.
- Symptoms of failure include clunking noises when shifting, excessive vibration at idle, and visible engine rocking.
- Your Jimmy has two engine mounts and one transmission mount; it's best practice to replace engine mounts in pairs.
- Standard aftermarket brands like Anchor and DEA offer an affordable fix, while Energy Suspension offers a durable but stiffer polyurethane upgrade that increases vibration.
- No recalls or TSBs exist for this issue, but failure is common due to the age and design of the vehicle.
Is Your GMC Jimmy's Engine Shaking or Clunking?
A common issue for the 1996-2005 GMC Jimmy is the failure of the original rubber engine mounts. Over time, the rubber dries out, cracks, or becomes saturated with leaking engine oil, causing it to soften and tear. When this happens, the engine is no longer held securely in place. This can lead to a number of noticeable and sometimes alarming symptoms.
Key Failure Symptoms:
- Excessive Vibration: You may feel a strong vibration through the steering wheel, floor, or seats, especially when the vehicle is idling or first started.
- Clunking or Thudding Noises: A loud clunk or thud when you accelerate, shift gears from park to drive, or put the engine under load is a classic sign of a broken mount. This is the sound of the engine shifting and hitting the frame.
- Engine Movement: If you have an assistant, you can observe the engine while they briefly shift from drive to reverse with their foot on the brake. If the engine lifts or rocks excessively, the mounts are likely worn out.
Known Issues & Recalls
There are no specific recalls or technical service bulletins (TSBs) from General Motors for engine mount failure on the 1996-2005 GMC Jimmy. However, failure due to age and fluid contamination is a well-documented and common maintenance issue for these trucks and their Chevrolet S-10 Blazer siblings.
Choosing the Right Aftermarket Engine Mount
When replacing your engine mounts, you have a choice between standard rubber replacements and performance-oriented polyurethane options. For most daily-driven Jimmys, a quality rubber mount provides the best balance of durability and comfort.
| Brand Tier | Brands | Characteristics |
|---|---|---|
| Value / Economy | Anchor, DEA, Westar, Pioneer | These brands offer the most affordable solution. They are functional replacements that meet basic requirements. However, some professional mechanics and users in forums report a shorter lifespan and potentially less vibration damping compared to OEM or premium aftermarket parts. They are a practical choice for budget-conscious repairs. |
| Performance Upgrade | Energy Suspension | Energy Suspension offers polyurethane inserts or full mounts. Polyurethane is much stiffer than rubber and highly resistant to oil and chemicals. This results in less engine movement, which can improve throttle response. The downside is a noticeable increase in felt vibration in the cabin, which some drivers may find harsh for a daily driver. These are best for off-road or performance-focused builds. |
Pro Tip: Always replace engine mounts in pairs. If one has failed, the other has been subjected to the same age and stress and is likely not far behind. Replacing both at the same time ensures proper engine alignment and saves you from doing the job twice.
Frequently Asked Questions
How many engine mounts does my 1996-2005 GMC Jimmy have?
Your GMC Jimmy has a total of three mounts that secure the drivetrain: two engine mounts (left and right) and one transmission mount at the rear of the transmission. It's common to replace all three at the same time, especially on high-mileage vehicles.
What's the difference between rubber and polyurethane mounts?
Standard rubber mounts (like those from Anchor, DEA, and Westar) are designed to absorb vibration for a smooth, quiet ride, similar to the original factory parts. Polyurethane mounts (from a brand like Energy Suspension) are much firmer, providing better engine control and durability but transmitting more engine vibration into the vehicle's cabin.
Can I replace just the one broken mount?
While you can, it is highly recommended to replace both the left and right engine mounts at the same time. A new mount on one side and an old, compressed mount on the other can cause the engine to sit unevenly, putting stress on the new part and other drivetrain components.
Is replacing the engine mounts a DIY job?
For a mechanically inclined person with the right tools, yes. The job requires safely supporting the engine with a jack and block of wood, removing skid plates, and accessing bolts that can be difficult to reach. It can be a challenging but rewarding DIY project that takes a few hours. If you are not comfortable supporting an engine, it's best to leave this job to a professional mechanic.
Technical Specifications
OEM Part Numbers: 15741542 15764082

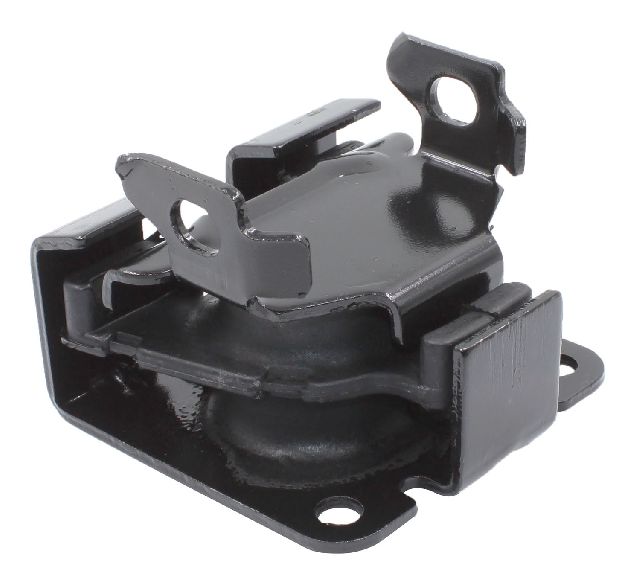

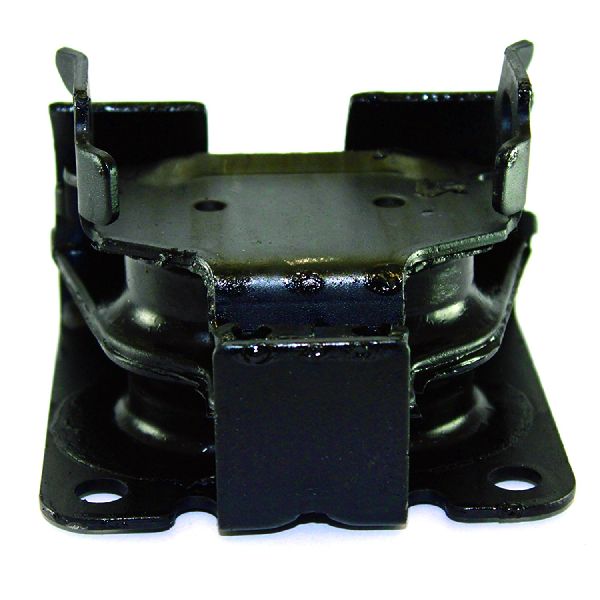

The 1996-2005 GMC Jimmy uses two identical engine mounts for the left and right sides. The design is a rubber block vulcanized to a steel mounting plate. The 4WD and 2WD models typically use the same engine mounts.
