A Comprehensive Guide to Universal Joints for the 1996-2005 GMC Jimmy
Address driveshaft clunks and vibrations by understanding how to choose the right U-joint for your Jimmy.
- Listen for clunks when shifting and feel for vibrations at highway speeds, as these are the most common signs of U-joint failure.
- Be prepared to use a torch to melt the factory-installed plastic retainers to remove the original U-joints.
- For maximum durability, choose a premium sealed U-joint from a brand like Spicer; for longevity through maintenance, choose a quality greasable joint.
- Always replace the small straps or U-bolts that hold the U-joint to the differential yoke to ensure a secure fit.
Is Your GMC Jimmy's U-Joint Failing?
A worn-out universal joint is a common issue on trucks and SUVs like the 1996-2005 GMC Jimmy. Failure starts with annoying sounds and vibrations but can end with the driveshaft detaching from the vehicle, leading to a total loss of power and significant damage. Catching the symptoms early is key.
🎬 Watch: How to tell if your U-joints are bad.Common Failure Symptoms
- Clunking Noise: The most classic symptom is a distinct "clunk" or "bang" when you shift from Park into Drive or Reverse. This sound is caused by excessive play in a worn-out joint.
- Vibration at Speed: A vibration that you can feel through the floor or seats, which becomes more noticeable at highway speeds, points to a failing U-joint. This is often confused with an out-of-balance tire.
- Squeaking or Chirping: A rhythmic, high-pitched squeak that changes with your speed (not engine RPM) often means the U-joint has lost its internal grease and is running dry.
- Fluid Leaks: In advanced stages of failure, the excessive driveshaft movement can damage the seals on your transmission, transfer case, or differential, causing fluid to leak.
Important Note for GM Owners: Plastic Retainers
Unlike many vehicles that use simple snap rings, many GM driveshafts from this era, including on the Jimmy, use a plastic injection system to hold the U-joint caps in place. To remove the original U-joint, you must use a torch to heat the yoke around the bearing caps until the melted plastic is forced out. Without heat, the joint will not press out. 🎬 See this walkthrough for removing GM plastic-retained U-joints. Your new aftermarket U-joint will use conventional snap rings for installation.
Choosing the Right Aftermarket U-Joint
When replacing U-joints, you have a choice between non-greasable (sealed) and greasable parts. Sealed joints are typically stronger out of the box, while greasable joints can have a longer service life if they are regularly maintained. Brand quality also plays a big role.
Brand Quality Tiers
- Premium / OEM-Equivalent (Spicer): Dana Spicer is widely considered the original equipment manufacturer for many American trucks and is the top recommendation in forums for its strength and durability. Their non-greasable "Life Series" joints are often regarded as the strongest option.
- Premium Aftermarket (Moog, SKF): Moog is a very popular aftermarket brand known for its "Super Strength" line and greasable designs that allow for maintenance. However, some users report inconsistent quality in recent years. SKF is a highly respected bearing manufacturer, and their U-joints are considered a reliable, high-quality alternative.
- Standard / Economy (GMB): GMB is a well-known manufacturer that offers a solid, budget-friendly option for daily driving and standard use. They provide a dependable replacement without the premium cost.
Pro Tip: How Many U-Joints Do You Need?

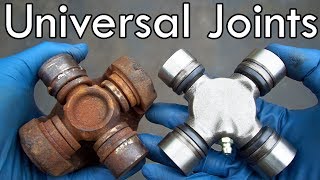

Your 1996-2005 GMC Jimmy's configuration determines the number of U-joints. A 2WD model has two U-joints on its rear driveshaft. A 4WD model has those same two joints plus two more on the front driveshaft, for a total of four. It is best practice to replace them in pairs 🎬 Check out this ultimate guide to U-joint diagnosis and replacement. (both on the same driveshaft) at the same time.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket U-Joint | $19 - $238 |
| Shop Labor | $200 - $450 |
| Total Professional Replacement | $220 - $688 |
Frequently Asked Questions (FAQ)
Can I drive with a bad U-joint?
You can, but it is not recommended. A failing U-joint puts stress on other drivetrain components. If it fails completely, the driveshaft can fall, causing you to lose control or resulting in very expensive damage to your transmission, exhaust, and underbody.
Should I choose a greasable or non-greasable U-joint?
This depends on your preference. Non-greasable (sealed) joints, like many from Spicer, are stronger out of the box and require no maintenance. Greasable joints can last longer, but only if you commit to greasing them at every oil change. Forgetting to do so will lead to premature failure.
Do I need to replace the driveshaft straps or U-bolts?
Yes, it is highly recommended to use new straps or U-bolts when you install a new U-joint. Re-using old, stretched hardware can cause the U-joint cap to work itself loose, leading to another failure.
Were there any recalls for the GMC Jimmy U-joint?
No, searches of the NHTSA database show no safety recalls or technical service bulletins (TSBs) specifically for universal joints on the 1996-2005 GMC Jimmy. Failures are typically due to normal wear and tear.
Helpful Videos
Technical Specifications
The original U-joints on many 1996-2005 GMC Jimmy models are secured with a plastic injection retainer system, not traditional snap rings. Removal requires heating the yoke with a torch to melt the plastic. Aftermarket replacements use standard snap rings.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
