Toyota RAV4 Headlight Switch Problems and Replacement (1996-2005)
If your RAV4 headlights are acting up, the switch on your steering column is a common and easy-to-fix problem.
- Headlight switch failure is a very common issue for 1996-2005 RAV4s, often causing intermittent or non-working headlights.
- Before replacing the switch, always check your headlight bulbs and fuses first to rule out simpler problems.
- The replacement is an easy DIY job that usually doesn't require removing the steering wheel.
- A quality aftermarket brand like Standard Ignition is a reliable, cost-effective alternative to an expensive OEM part.
Is Your RAV4 Headlight Switch Failing?
On the first-generation (XA10) and early second-generation (XA20) RAV4, the headlight switch is a frequent point of failure. The internal copper contacts that complete the electrical circuit for your lights can corrode or wear down. This prevents electricity from reaching the headlights properly. Because some of these RAV4 models use the switch to interrupt the ground side of the circuit without a separate relay, the switch itself handles the full electrical load, causing it to wear out faster.
Common Symptoms of a Bad Headlight Switch
- Headlights Won't Turn On: The most obvious sign is when your low beams or high beams fail to light up, even with good bulbs and fuses.
- Intermittent Operation: Your headlights might flicker, or only work after you jiggle or tap the switch stalk. 🎬 Watch this video to see a headlight switch failure in action.
- Delayed Lights: You may notice a delay of a second or two between turning the switch and the headlights actually turning on.
- Only High Beams or Low Beams Work: You might lose one function but not the other. For example, your low beams might fail, but the high beams still work when you pull the lever.
- Dashboard or Tail Lights Also Fail: Sometimes, a failing switch can affect other lights connected to the same circuit, like your dashboard illumination or tail lights.
Safety First: Check Bulbs and Fuses

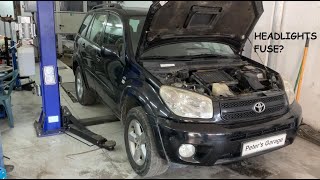

Before assuming the switch is bad, always check the simple things first. Make sure your headlight bulbs are not burned out and inspect the headlight fuses in the fuse box. 🎬 See this guide to locate your headlight fuses and relays. If both are okay, the headlight switch is the next logical part to inspect.
Choosing the Right Aftermarket Headlight Switch
When replacing your switch, you have a choice between an expensive OEM part from a Toyota dealer and a more affordable aftermarket part. For a component like this, a quality aftermarket switch can be a reliable and cost-effective solution. The key is to choose a brand known for quality control.
- Standard Ignition (Standard Motor Products): This is a well-regarded aftermarket brand that is widely available. They often build parts to meet or exceed original specifications, using quality materials like copper alloy conductors to ensure good electrical performance. For many professional mechanics, this is a go-to choice when not using OEM.
- Rostra Powertrain: Rostra is another established manufacturer of automotive electronics. While they produce a variety of switches, they are more widely known for other components like cruise control systems. Their quality is generally considered standard for the aftermarket.
Pro Tip: When ordering, be sure to get the correct switch for your RAV4's options. There are different switches for models with and without factory fog lights. Check your vehicle and the part description carefully before buying.
Cost to Replace a 1996-2005 RAV4 Headlight Switch
The cost can vary depending on whether you do the job yourself or have a shop do it, and the brand of part you choose.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $35 - $175 |
| New OEM Part | $60 - $170 |
| Shop Labor | $80 - $120 |
| Total (Shop Repair, Aftermarket Part) | $115 - $295 |
Frequently Asked Questions
Can I replace the RAV4 headlight switch myself?
Yes, this is a very DIY-friendly job for most home mechanics. The switch is located on the steering column and can usually be accessed by removing a few screws from the plastic covers around it. In most cases, you do not need to remove the steering wheel or airbag, making it a relatively safe and simple repair that can be done in under an hour.
Are there any recalls for the headlight switch on my RAV4?
No, there have been no official recalls or technical service bulletins (TSBs) issued by Toyota or the NHTSA for headlight switch failures on the 1996-2005 Toyota RAV4. The problem is a result of normal wear and tear on the part.
Why did my original headlight switch fail?
The original switches fail primarily due to the design of the lighting circuit in this RAV4 generation. The switch directly handles the electrical current for the headlights. Over thousands of on-and-off cycles, this current causes small sparks that eventually wear down and corrode the metal contact points inside the switch, leading to a poor connection and failure.
What's the difference between switches with and without fog lights?
The switch for a RAV4 equipped with factory fog lights has an extra position or ring on the stalk to control them. A switch for a model without fog lights will not have this function. It is important to order the correct part that matches your vehicle's features to ensure it fits and works correctly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84140-42030 84140-44010 84140-42010 84140-42020
Multi-function combination switch stalk mounted on the steering column. Controls headlights (low/high), turn signals, and parking lights. Available in configurations with or without fog light control.
