Toyota RAV4 Windshield Washer Pump Guide for 1996-2005 Models
If you hear nothing when you try to wash your windshield, your washer pump has likely failed.
- A failed washer pump is a common, simple-to-fix issue on the 1996-2005 RAV4.
- The pump is accessed by removing the front passenger-side fender liner.
- A quality aftermarket pump from a brand like Trico offers the best value for this repair.
- Always have a bucket ready to catch the old washer fluid when you pull the pump out of the reservoir.
Is Your RAV4's Windshield Washer Pump Failing?
A failed windshield washer pump is a common issue on many vehicles as they age. The electric motor inside the pump simply wears out. On the 1996-2005 Toyota RAV4, the symptoms are usually very clear. The most common sign is that you hear no sound from the pump when you try to use the washers. You might also hear the pump motor running, but no fluid sprays out, which could point to a clog or a different issue.
Common Failure Symptoms
- No Sound, No Spray: You activate the washer, the wipers move, but you hear no humming sound from the front of the vehicle and no fluid comes out. This almost always means the pump motor has failed.
- Pump Runs, No Spray: You can hear the pump motor humming, but little or no fluid reaches the windshield. This could be caused by clogged nozzles, cracked or disconnected hoses, or an internal failure in the pump itself.
- Leaking Fluid: You may notice a puddle of blue or colored washer fluid under the front passenger side of your RAV4. The pump body or the rubber grommet it sits in can degrade over time and leak.
Check This First!
Before buying a new pump, check the "WASHER" fuse. Also, make sure your washer fluid reservoir is actually full. Sometimes a clogged nozzle can be cleaned with a small pin. These simple checks can save you time and money.

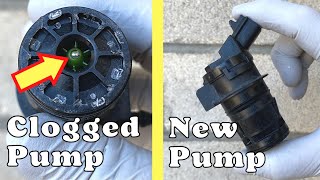

🎬 Watch: Troubleshooting tips when your windshield washers stop spraying.Choosing a New Aftermarket Pump
When replacing the washer pump on an older vehicle like the 1996-2005 RAV4, you have two main choices: a new OEM (Original Equipment Manufacturer) part from Toyota or a new aftermarket part.
- OEM: An original Toyota pump will be a perfect match, but it is also very expensive for what it is.
- Aftermarket: Quality aftermarket brands like Trico offer pumps that are designed to be direct, OE-style replacements. They fit and function like the original without the high cost. For a simple part like a washer pump, a reputable aftermarket option provides excellent value.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $75 - $105 |
| New Aftermarket (Trico) | $24.64 - $35.01 |
| Shop Labor | $75 - $150 |
Pro Tip: Avoid Clogging Your New Pump
Some washer fluids that contain wax or rain-repellent additives can clog washer pumps, lines, and sensors over time. Using a standard, basic blue washer fluid is a safe bet to ensure the longevity of your new pump.
Frequently Asked Questions (FAQ)
Where is the washer pump located on my 1996-2005 RAV4?
The windshield washer pump is pressed into the bottom of the washer fluid reservoir. To access it, you need to pull back the plastic fender liner inside the front passenger-side wheel well.

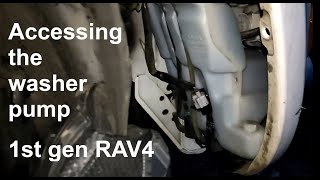

🎬 See how to access the pump behind the fender liner.Can I replace the washer pump myself?
Yes, this is a very DIY-friendly job. It requires basic hand tools like a screwdriver and a 10mm socket. The process involves pulling back the fender liner, unplugging the old pump, and plugging in the new one. The most difficult part is catching the washer fluid that will drain out when you remove the old pump. The entire job can usually be done in under an hour.
🎬 Watch this step-by-step guide to replacing your Toyota washer pump.Do I need to replace the front and rear pumps?
First and second-generation RAV4 models often have two separate pumps located next to each other in the reservoir—one for the front windshield and one for the rear window. Be sure to identify which pump has failed. If only your front washers are not working, you only need to replace the front pump.
Are there any recalls for the washer pump on my RAV4?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Toyota or the NHTSA for the windshield washer pump on the 1996-2005 Toyota RAV4.
Helpful Videos
Technical Specifications
OEM Part Numbers: 85330-60190 85330-33020 85310-20190 85330-16170
12V electric motor pump, push-fit installation into washer reservoir.
