A Guide to the 1996-2005 Volkswagen Beetle Engine Oil Pressure Switch
Don't ignore a flickering oil light; understand the symptoms of a failing oil pressure switch and find the right replacement for your Beetle.
- Never ignore an oil pressure warning light; always check the oil level immediately before assuming the switch is faulty.
- A visible oil leak from the switch itself is a clear sign it needs replacement.
- For this part, high-quality aftermarket brands like Hella, Vemo, or Standard Ignition offer reliability comparable to OEM at a lower cost.
- Replacement is a simple, low-cost DIY job for most owners, typically requiring a deep 24mm socket and less than an hour.
Understanding the Oil Pressure Switch in Your Beetle
The engine oil pressure switch is a critical safety component in your 1996-2005 VW Beetle. While it's a simple and inexpensive part, its function is essential for protecting your engine. It acts as a watchdog, ensuring your engine has enough oil pressure to keep all its moving parts lubricated. Ignoring its warning can lead to severe and costly engine failure. If the warning light comes on, the first step is always to check your oil level. If the level is correct, the problem could be the switch itself or a more serious internal engine issue.
Symptoms of a Bad Oil Pressure Switch
A failing oil pressure switch can be tricky because its main symptom—the oil warning light—can also signal a true low-pressure emergency. Here are the common signs that the switch itself is the problem:
🎬 Watch this video to see common symptoms of a bad sensor.- Flickering Oil Light: The oil pressure light on your dashboard may flicker, especially at idle or when the engine warms up.
- Warning Light Stays On: The red oil pressure light may stay on constantly, even if you've confirmed the oil level is correct.
- Oil Leak: The switch itself can fail, causing oil to leak from its body or the electrical connector. If you see oil around the sensor, it needs to be replaced.
- Warning Light Doesn't Come On: In some cases, the switch can fail in the 'off' position, meaning the warning light won't illuminate during the initial key-on check or in a real low-pressure situation.
Important: Rule Out Low Oil Pressure First
Before assuming the switch is bad, you must verify the engine's actual oil pressure. A constantly lit or flickering oil light could mean your oil pump is failing or there's another serious problem. If you hear any knocking, clattering, or other unusual engine noises, stop the engine immediately and have it towed to a mechanic. 🎬 Learn how to inspect your oil pump and engine for pressure. Continuing to drive could destroy the engine.
Choosing the Right Aftermarket Switch for Your Beetle
For a part like an oil pressure switch, you don't necessarily need to buy an expensive OEM part from the dealer. Many aftermarket brands offer excellent quality, often from the same manufacturers that supply Volkswagen. Here’s a breakdown of available brands to help you choose:
- Top Tier (OEM-Quality): Brands like Hella and Vemo are often original equipment (OE) suppliers to German automakers. Choosing one of these is the closest you can get to dealer quality, ensuring excellent fit and reliability. Standard Ignition (SMP) is another top-tier aftermarket brand known for quality electrical components.
- Reliable Aftermarket: Beck Arnley and Walker Products are reputable brands that provide quality parts that meet or exceed OEM specifications. They are a solid choice for a balance of price and performance. CRP (Rein) also falls into this category, specializing in European vehicle parts.
- Economy Tier: Brands like URO Parts and Facet offer a budget-friendly option. While they can be a good value, some user forums report mixed experiences with the long-term reliability of their electronic parts. These may be suitable for a quick fix, but for peace of mind, sticking with a higher-tier brand is often recommended.
Replacement Cost for a 1996-2005 VW Beetle
Replacing the oil pressure switch is an affordable repair. The part itself is inexpensive, and labor is minimal if you take it to a shop.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $9 - $30 |
| New OEM Switch | $50 - $70 |
| Shop Labor | $77 - $140 |
| Total Professional Replacement | $86 - $170 |
DIY Replacement

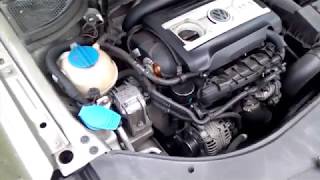

This is a very feasible DIY job for most home mechanics. The switch is typically located on the oil filter housing. On the 2.0L engine, it may be under the ignition coil pack. 🎬 See exactly where the 2.0L oil pressure sensor is located. You'll need a deep socket (often 24mm) to remove and install it. The job usually takes less than an hour.
Frequently Asked Questions
Where is the oil pressure switch on my 1996-2005 Beetle?
The oil pressure switch is usually screwed into the oil filter housing or the engine block nearby. On the 2.0L engine, you may need to remove the ignition coil pack to access it. Always consult a repair manual for your specific engine to confirm the location.
Is it safe to drive with a bad oil pressure switch?
No. You should not drive the vehicle if the oil pressure warning light is on. You cannot be sure if the problem is a faulty switch or a true lack of oil pressure, which can cause catastrophic engine damage in minutes.
Do I need a special tool to replace the oil pressure switch?
You will likely need a deep-well socket to fit over the sensor body. A common size for VWs is 24mm, but it can vary. An oil pressure switch socket is recommended, but a standard deep socket may work.
My new oil pressure switch is leaking. What did I do wrong?
The new switch may not have been tightened correctly, or the threads may have been damaged. Do not overtighten the switch, as this can crack the housing. Ensure the sealing surface is clean and consider using a small amount of thread sealant if the new switch doesn't have it pre-applied.
Are there any recalls for the oil pressure switch on my Beetle?
Searches of NHTSA data did not show any specific recalls for the engine oil pressure switch on the 1996-2005 Volkswagen Beetle. Recalls for this model year are generally for other issues.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06A919081J 06A919081F 06A919081E 06A919081D 06A919081A 056919081C 021919081B
Pressure Range: Varies by part number, common versions are 1.2-1.6 Bar or 1.8 Bar. Connector: Typically a single-pin electrical connector. Socket Size: Often requires a 24mm deep socket for removal and installation.
