Chevrolet Blazer Mass Air Flow Sensor Guide for 1996-2006 Models
Is your Blazer running rough or losing power? Your Mass Air Flow sensor could be the culprit.
- A bad MAF sensor on your Blazer can cause stalling, hesitation, poor gas mileage, and a check engine light.
- Always try cleaning the sensor with dedicated MAF cleaner before buying a new one.
- Verify if your Blazer needs a 3-wire (early models) or 5-wire (later models) sensor before purchasing.
- For best results and to avoid issues, choose an OEM-quality brand like ACDelco or Delphi.
Is My Blazer's MAF Sensor Failing?
A dirty or failing Mass Air Flow (MAF) sensor can cause a range of frustrating problems with your 1996-2006 Chevrolet Blazer. Because the sensor provides bad information to the engine computer, the air-fuel mixture becomes incorrect. This can lead to symptoms that are often hard to pin down. 🎬 Watch a breakdown of common bad mass air flow symptoms. Before you replace the sensor, it's often a good idea to try cleaning it with a dedicated MAF sensor cleaner, as dirt and oil buildup are common causes of failure.
Common Symptoms of a Bad MAF Sensor:
- Check Engine Light: This is often the first sign. You may see codes like P0101, P0102, or P0103. 🎬 Learn about the most common causes for a P0101 code.
- Rough Idle: The engine may shake, vibrate, or sound unstable when stopped.
- Hesitation and Stalling: Your Blazer might hesitate, jerk, or even stall during acceleration or when coming to a stop.
- Poor Fuel Economy: An incorrect air reading can cause the engine to use more fuel than necessary.
- Black Smoke from Exhaust: This indicates the engine is running too rich (too much fuel), a common result of a faulty MAF sensor.
- Unusual Transmission Shifting: In some GM vehicles, a bad MAF signal can affect automatic transmission shift patterns, causing harsh or erratic shifting.
A Critical Year Split: 3-Wire vs. 5-Wire Sensors
When ordering a MAF sensor for your Blazer, it is crucial to know which type you have. Early models (roughly 1996-1998) often use a 3-wire MAF sensor. Later models (around 1999-2006) use a 5-wire MAF sensor that integrates the Intake Air Temperature (IAT) sensor into the same housing. They are not interchangeable. Always verify your vehicle's specific part before purchasing.
Choosing the Right Aftermarket MAF Sensor
While a dealership OEM part is an option, the aftermarket offers quality replacements at a better price. For a critical sensor like the MAF, brand quality matters. Some budget brands have been known to cause drivability issues right out of the box.
Brand Quality Tiers for Your Blazer:
- OEM & Premium Aftermarket (Highest Quality): ACDelco is the original GM parts supplier, so their parts are a direct replacement for the factory sensor. Delphi was once part of GM and is a major OEM supplier; their MAF sensors are widely considered to be of equivalent quality to ACDelco and are often more affordable. These brands are recommended for reliability and proper performance.
- Trusted Aftermarket (Good Quality): Brands like NGK/NTK, Standard Ignition (SMP), and Walker Products have a solid reputation in the industry for producing reliable sensors that meet or exceed OEM specifications. They offer a good balance of price and performance.
- Standard & Economy (Use with Caution): Brands like Cardone (which offers new and remanufactured parts), Spectra, and other budget-focused brands can be hit-or-miss. While some users have success, others report issues like rough idling or incorrect performance soon after installation. These may be a viable option if budget is the primary concern, but they carry a higher risk of being defective.
Pro Tip: Many Blazer owners and mechanics recommend sticking with ACDelco or Delphi for electronic sensors to avoid troubleshooting headaches caused by out-of-spec budget parts.
How Much Does a New MAF Sensor Cost?
Replacing the MAF sensor on a '96-'06 Blazer is a very DIY-friendly job that can be done in under 30 minutes with just a screwdriver. This saves you money on labor costs.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $93.79 - $162.50 |
| New OEM (ACDelco) | $160 - $250+ |
| Remanufactured | $80 - $150 |
| Shop Labor | $40 - $80 |
Frequently Asked Questions
Can I clean my Blazer's MAF sensor before replacing it?
Yes, and it's highly recommended as a first step. Often, performance issues are caused by a dirty sensor element, not a failed one. Use only a dedicated Mass Air Flow sensor cleaner spray. Never touch the delicate sensor wires inside the housing.
Is it hard to replace the MAF sensor myself?
No, this is one of the easiest repairs you can do. The job typically requires only a flathead screwdriver to loosen two hose clamps on the air intake tube. You disconnect the electrical plug, loosen the clamps, remove the old sensor, and install the new one in reverse order. The entire process usually takes less than 15 minutes.

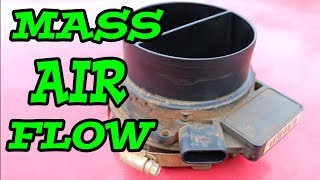

🎬 See how to replace the MAF sensor on your Blazer.Do I need to disconnect the battery or reset the computer?
It is always a good practice to disconnect the negative battery terminal before working on any electronic components. After replacing the sensor and reconnecting the battery, the engine computer will begin a relearning process. Any stored trouble codes should be cleared with an OBD-II scanner.
I found no recalls for the MAF sensor, are there any other known issues?
While no specific recalls for the MAF sensor on the 1996-2006 Blazer were found, GM has issued Technical Service Bulletins (TSBs) for similar models related to drivability issues that can be mistaken for a bad MAF. For example, TSB 00-06-04-007 mentions that restricted fuel injectors can cause symptoms like hesitation and misfires, which are similar to MAF sensor failure symptoms. It's important to properly diagnose the issue before replacing parts.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25008302 25179711 25008309 25180303 19179715 213-4527
Hot-wire type sensor. Available in 3-pin (approx. 1996-1998) and 5-pin with integrated IAT sensor (approx. 1999-2006) configurations.
