Chevrolet Impala Engine Crankshaft Position Sensor Guide (1996-2006)
Everything you need to know about diagnosing and replacing the crankshaft position sensor on your 1996-2006 Impala.
- Verify your Impala's engine (LT1, 3.4L/3.8L, 3.5L/3.9L) to buy the correct sensor, as locations and part numbers differ by year.
- For 2000-2005 models with the 3.4L/3.8L V6, be aware there may be two separate crank sensors; proper diagnosis is key.
- Choose a high-quality brand like ACDelco or Delphi to ensure reliability and avoid dangerous stalling issues.
- A 'crank relearn' procedure with a scan tool is often necessary after replacement to avoid a persistent check engine light.
Understanding Your Impala's Crankshaft Sensor: 1996 vs. 2000-2006
The 1996-2006 year range for the Chevrolet Impala covers three distinct generations with different engines, which means the crankshaft position sensor's location and replacement procedure vary significantly. Identifying your specific engine is the first step.

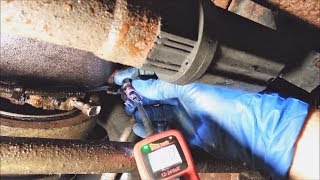

- 1996 Impala SS: This model uses the 5.7L LT1 V8 engine. It has a single crankshaft position sensor located on the front timing cover, near the crankshaft pulley. It is relatively easy to access and replace. 🎬 Watch this walkthrough for replacing the LT1 sensor.

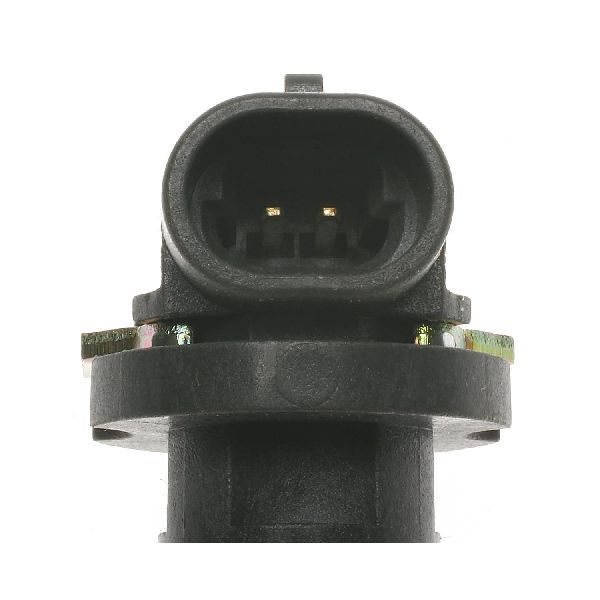

- 2000-2005 Impala: These models most commonly feature the 3.4L LA1 V6 or the 3.8L L36 V6 engine. These engines can have two crankshaft position sensors. One sensor (often called the 24X sensor) is located behind the crankshaft pulley (harmonic balancer) on the front of the engine. This one is difficult to replace as it requires a special puller tool. The second sensor (7X sensor) is located on the back of the engine block, near the transmission.

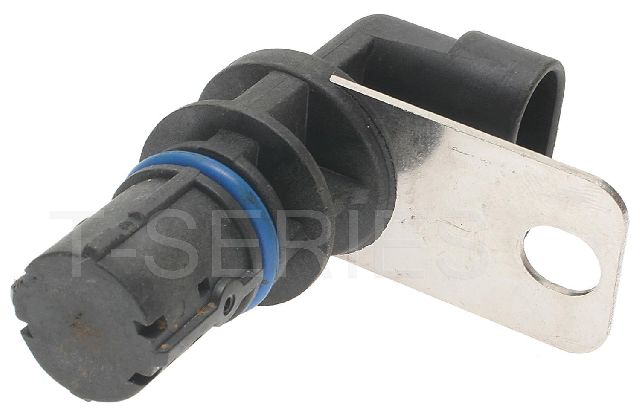

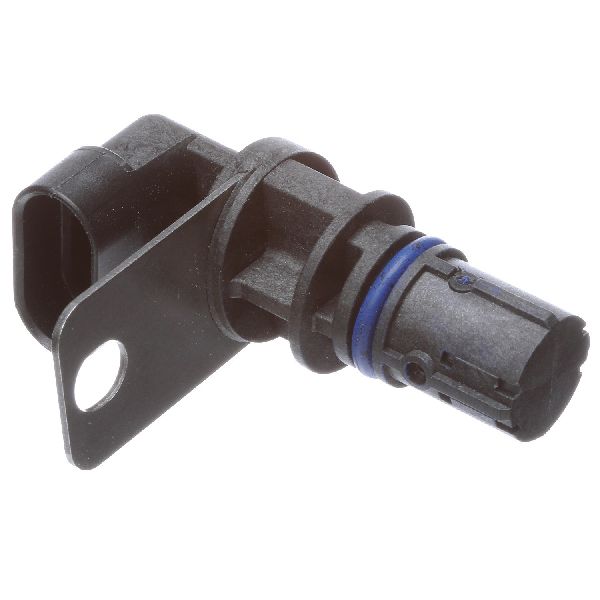

- 2006 Impala: This first year of the ninth generation typically has the 3.5L LZE V6 or 3.9L LZ9 V6. The single crankshaft position sensor is located on the lower front of the engine block, above the oil pan. It is usually accessed by removing the passenger-side front wheel and splash shield. 🎬 See how to access the sensor on 2006 models.
Symptoms of a Failing Crankshaft Position Sensor
A bad crank sensor can cause serious drivability problems or leave you stranded. Watch for these common signs:
- Check Engine Light: A failing sensor will almost always trigger the Check Engine Light. The most common trouble code is P0335 (Crankshaft Position Sensor 'A' Circuit Malfunction).
- Engine Will Not Start: The engine cranks but refuses to start because the computer isn't getting the signal it needs to time spark and fuel.
- Intermittent Stalling: The engine may stall unexpectedly while driving, especially when it gets warm. This is a serious safety hazard.
- Rough Idle and Misfires: The engine may run poorly, vibrate, or misfire because the timing is incorrect.
- Poor Acceleration: You may notice a significant loss of engine power and sluggish performance.
- Reduced Fuel Economy: Incorrect timing leads to inefficient fuel combustion, hurting your gas mileage.
Known Vehicle-Specific Issues
For 2000-2004 Impalas with the 3.8L V6 engine, GM issued a safety recall (ID: 15757) for an issue where engine oil could leak from the valve cover gasket onto the hot exhaust manifold. While not a direct recall for the crank sensor, this oil leak can contaminate and damage nearby wiring and sensors over time, including the crank sensor connector. Always inspect for oil leaks in this area when diagnosing sensor issues.
Choosing the Right Aftermarket Crankshaft Sensor
For a part this critical, quality matters. A cheap, unreliable sensor can fail prematurely, leaving you with the same problems. Here’s how the brands stack up.
- Tier 1: OEM & Premium Aftermarket (ACDelco, Delphi): ACDelco is the original GM parts brand, and Delphi was a major OEM supplier for these vehicles. For maximum reliability and to avoid issues, choosing one of these two brands is your best bet. They are engineered to the original factory specifications.
- Tier 2: Quality Aftermarket (NGK/NTK, Standard Motor Products, Walker): Brands like these have a strong reputation for producing reliable electronic components. They offer a good balance of quality and price and are a solid choice if an OEM part isn't available.
- Tier 3: Economy Brands: While the low price is tempting, economy sensors can be a gamble. Forum discussions often show mixed results, with some failing shortly after installation. Given that a failure can cause a dangerous stall, it's often worth spending more for a part from a higher tier.
What is a Crank Relearn Procedure?

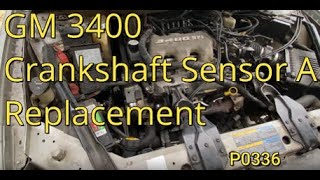

After replacing a crankshaft position sensor on many GM vehicles, a "crankshaft variation relearn" procedure is required. The computer needs to learn the minor imperfections of the new sensor and the crankshaft's reluctor wheel to accurately detect misfires. Failing to do this can result in a persistent P0336 trouble code, a check engine light, and incorrect misfire detection, even with a perfectly good new sensor. 🎬 Still getting codes? Watch this diagnostic guide for help. This procedure typically requires a professional-grade scan tool.
Cost to Replace a Chevrolet Impala Crankshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $18 - $113 |
| New OEM Part (ACDelco/GM) | $60 - $120 |
| Shop Labor | $150 - $270 |
| Total Professional Replacement | $170 - $380+ |
Cost estimates are approximate and will vary based on your location, engine type, and the specific sensor being replaced. The front sensor on 3.4L/3.8L engines will have higher labor costs.
Frequently Asked Questions (FAQ)
How many crankshaft sensors does my 2000-2005 Impala have?
The 3.4L and 3.8L V6 engines used in these Impalas often have two crankshaft sensors. One is located behind the harmonic balancer and provides a high-resolution (24X) signal for timing, while the other is at the rear of the block and provides a low-resolution (7X) signal for ignition control. It's important to diagnose which one has failed before ordering a replacement.
Can I just clean my old crankshaft sensor?
Sometimes, metal shavings or heavy oil sludge can build up on the magnetic tip of the sensor and interfere with its signal. You can try cleaning it as a temporary fix or a diagnostic step, but if the sensor's internal electronics are failing, cleaning will not solve the problem and replacement is necessary.
What's the difference between a crankshaft and a camshaft sensor?
They work together. The crankshaft sensor tells the ECU the position of the pistons. The camshaft sensor tells the ECU the position of the valves. The computer needs both signals to precisely time fuel injection and spark for each cylinder.
Do I need a special tool to replace the sensor?
For the 2000-2005 Impala 3.4L and 3.8L engines, if you are replacing the front-mounted sensor, you will need a harmonic balancer puller. This job is significantly more difficult than replacing the rear-mounted sensor or the sensor on the 1996 and 2006 models. The other locations typically only require standard hand tools like ratchets and sockets.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12703627 12585546 213-354
The crankshaft position sensor for the 1996-2006 Impala is typically a Hall effect or magnetic reluctance sensor that generates a voltage signal as the crankshaft's reluctor wheel passes by it. The number of pins on the connector and the mounting style vary depending on the specific engine and model year.
