Chevrolet Express 1500 (1996-2007) Distributor Replacement Guide
If your work van is misfiring or won't start, the distributor could be the problem—here's what you need to know.
- A P1345 trouble code is a very strong indicator that the distributor has failed.
- Aftermarket brands like ACDelco and Delphi are highly recommended for reliability on these vans.
- Replacement is not a simple DIY job; a scan tool is required to set the Camshaft Retard Offset to 0° after installation.
- Symptoms like misfiring, rough idle, and hard starting are common signs of a failing distributor.
Is Your Express Van Running Rough? It Could Be The Distributor.
The distributor in the 1996-2007 Chevy Express with a Vortec engine is a known weak point. When it starts to fail, it can cause a range of frustrating and sometimes confusing engine problems. Because this single part controls spark timing and tells the computer when to fire the fuel injectors, a failure can mimic other issues. This guide will help you identify the symptoms of a bad distributor, choose the right aftermarket replacement, and understand what the job entails.
Known Issue: Internal Corrosion
A General Motors Technical Service Bulletin (TSB #03-06-04-041) addresses issues with the original distributors on 2001-2003 models, which also applies to similar designs in this generation. Moisture can get inside, causing corrosion on the distributor cap terminals (white or brown residue), rotor (green spots), and internal parts. This leads to misfires, rough idling, and a Check Engine Light with a P0300 random misfire code. 🎬 See a deep dive into troubleshooting complex Express van misfires. Some replacement distributors feature improved designs to prevent this.
Symptoms of a Failing Distributor
A bad distributor can make your van run poorly or not at all. Watch for these common signs:
🎬 Watch this video to diagnose common distributor failure symptoms.- Check Engine Light: The most common code is P0300 (Random/Multiple Cylinder Misfire). A more specific and very common code for a bad distributor on these vans is P1345 (Crankshaft/Camshaft Position Correlation Error), which points directly to a timing issue related to the distributor's internal sensor.
- Engine Misfires: The engine may shake, sputter, or feel like it's losing power, especially under load. This can feel like a hesitation when you press the gas pedal.
- Hard Starting or No Start: The engine turns over but won't fire up, or takes an excessive amount of time to start. This can happen because the computer isn't getting the correct signal to fire the spark plugs.
- Stalling: The engine might die unexpectedly at a stop light or while driving.
- Rough Idle: The van may shake or run unevenly when it's in park or stopped.
Choosing the Right Aftermarket Distributor
When it comes to a critical part like the distributor, quality matters. While budget parts are available, they have a higher risk of premature failure. For a work van where reliability is key, investing in a better part is a smart choice. Mechanics often recommend using OEM or equivalent brands for these specific distributors to avoid repeat failures.
| Brand Tier | Brands | Typical Price Range | Notes |
|---|---|---|---|

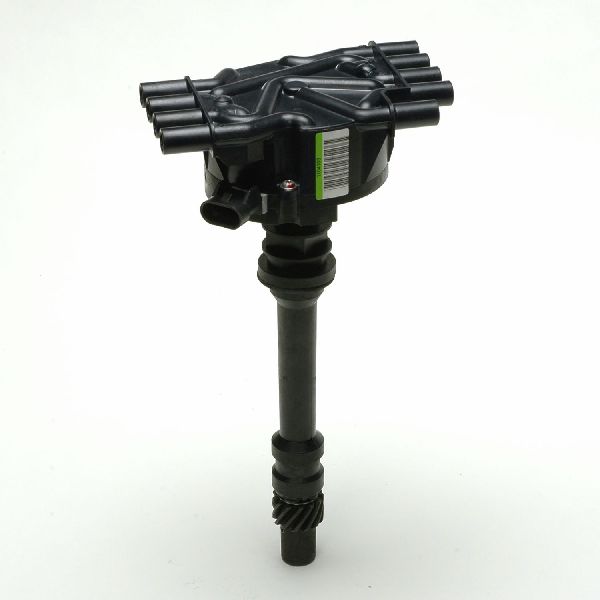

| OE / Premium Aftermarket | ACDelco, Delphi | $150 - $300 | ACDelco is the original GM parts brand, and Delphi was the original equipment manufacturer for many of these parts. These are widely considered the most reliable choices for a direct replacement. |

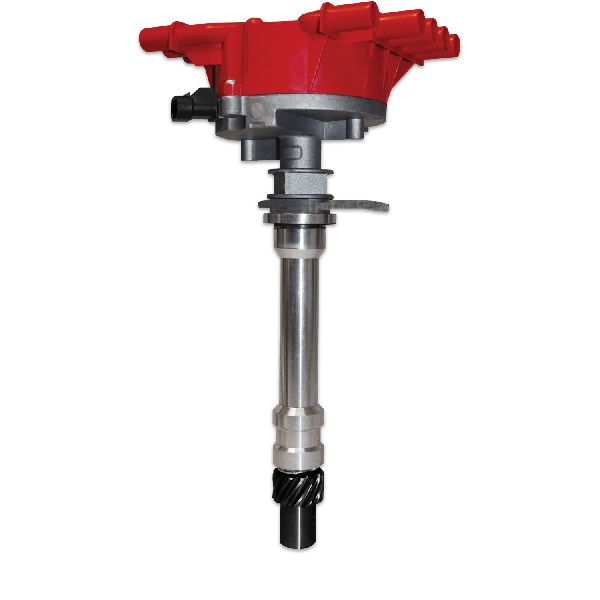

| Performance Aftermarket | MSD, Accel, Pertronix | $250 - $481+ | These brands focus on high-performance applications. They often use higher-quality materials like billet aluminum housings and improved electronics. While excellent, they may be overkill for a standard work van. |
| Standard Aftermarket | Standard Ignition (SMP), WAI Global, Cardone (New) | $100 - $200 | These brands offer a balance of quality and value. Standard Ignition is a well-regarded aftermarket manufacturer. They are generally more reliable than the lowest-priced options. |
| Economy / Value | Replacement, TRQ, various unbranded | $87 - $130 | These are the most affordable options but carry a higher risk of defects or a shorter service life. Given the labor involved and the importance of the part, using these can be a gamble. |
Pro Tip: Camshaft Retard Offset Adjustment is CRITICAL
After installing a new distributor on these Vortec engines, you must use a professional-grade scan tool to set the "Camshaft Retard Offset" (also called CMP Retard) to 0 degrees (+/- 2 degrees). Skipping this step will result in a P1345 trouble code, poor performance, and failed emissions tests. This is not an optional adjustment and is why many DIY mechanics take their van to a shop for the final step.
Frequently Asked Questions (FAQ)
Can I just replace the distributor cap and rotor?
Sometimes, yes. If your only issue is corrosion or wear on the cap and rotor contacts, replacing just those parts can solve the problem. However, many failures on these vans are due to the internal camshaft position sensor, which requires replacing the entire distributor assembly. If you have a P1345 code, a new cap and rotor will not fix it.
Is an ACDelco distributor really better than a cheaper one?
For this specific part, experience from mechanics and owners suggests yes. ACDelco and Delphi parts are generally built to the original specifications and tend to be more durable. Cheaper units can use lower-quality internal sensors or gears that wear out quickly, leading to the same problems returning in a short time.
What is the most common mistake when replacing this distributor?

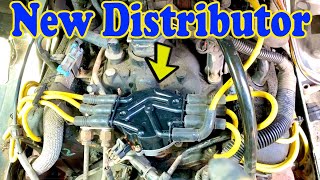

The most common mistake is failing to properly set the Camshaft Retard Offset with a scan tool after installation. Another critical error is not marking the position of the old distributor and rotor before removal, which makes it very difficult to get the new one installed with the correct timing. 🎬 Follow this step-by-step guide to remove and install your distributor. Incorrect installation can also lead to the distributor hold-down clamp being installed upside down and modified to fit, which is a clear sign of an improper repair.
Are there any recalls for the distributor on my Express van?
There are no direct safety recalls for the entire distributor assembly on 1996-2007 models. However, there was a voluntary emission recall/TSB for some 4.3L V6 engines concerning corrosion on the cap and rotor. Other recalls for Express vans in different year ranges typically involve issues like battery cables or door beams and are not related to the distributor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12570426 1104057 12598210
Fits 4.3L V6, 5.0L V8, and 5.7L V8 Vortec engines. The assembly includes the distributor body, shaft with drive gear, internal camshaft position sensor, and typically comes with a new cap and rotor. The drive gear is made of melonized steel to be compatible with the factory camshaft.
