Chevrolet Express 1500 Distributor Cap Guide (1996-2007)
Keep your van's Vortec engine running smoothly by choosing the right distributor cap.
- A failing distributor cap is a very common cause of misfires (P0300 code) and rough running on the 1996-2007 Express 1500.
- Always choose a replacement cap with brass or copper terminals. Avoid cheaper caps with aluminum terminals to prevent recurring issues.
- Replace the distributor rotor at the same time as the cap; they are sold as a kit.
- Check for and clean the distributor base air vents to address the cause of moisture buildup described in TSB 03-06-04-041.
Is Your Express Van Running Rough? Check the Distributor Cap.
If you own a 1996-2007 Chevrolet Express 1500 with a V6 or V8 engine, you have a distributor-style ignition system. The distributor cap and rotor are maintenance items that wear out over time. Due to their location at the back of the engine, they are exposed to high heat and can trap moisture. This can lead to a number of running issues, some of which can appear suddenly.
Common Symptoms of a Failing Distributor Cap
- Engine Misfires: The most common symptom. You may feel a shudder or hesitation, and the Check Engine Light may flash. A P0300 (Random/Multiple Cylinder Misfire) code is very common with a bad cap.
- Rough Idle: The engine may shake or run unevenly when stopped.
- Hard Starting: The engine may crank for a long time before it starts, or it may not start at all. This is often worse in damp or cold weather.
- Poor Acceleration: A lack of power or hesitation when you press the gas pedal.
- Visible Damage: Upon inspection, you might see cracks in the plastic, a white, chalky residue, or black carbon tracks inside the cap. The metal terminals may also look corroded or burnt.
Vehicle-Specific Issue: TSB for P0300 Misfire Code
General Motors issued Technical Service Bulletin (TSB) 03-06-04-041 for these vans. It notes that clogged air vents on the distributor base can cause moisture and corrosion to build up inside the cap. This leads to a white residue on the cap walls and green spots on the rotor, causing a P0300 misfire code. 🎬 Watch this diagnostic video to troubleshoot your P0300 misfire. When replacing your cap, it's wise to inspect and clean these vents.

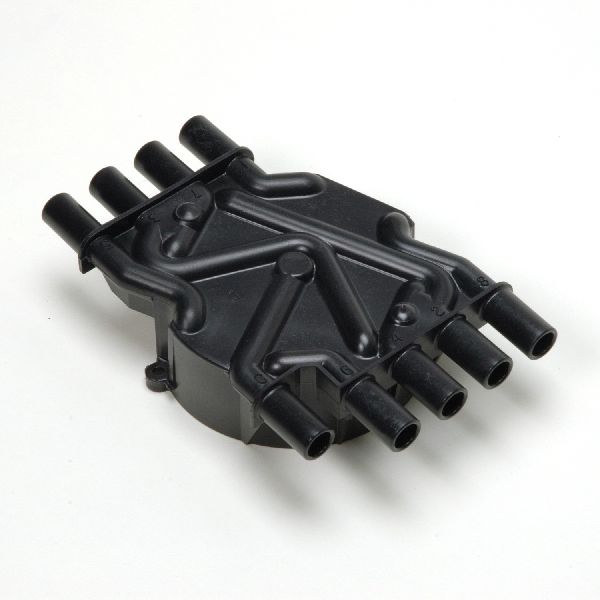

Choosing the Right Aftermarket Distributor Cap
For the Vortec engines in these Express vans, not all aftermarket caps are created equal. Using a low-quality part can lead to the same problems returning quickly. The main difference comes down to the materials used for the electrical contacts (terminals) inside the cap.
| Brand Tier | Description | Best For |
|---|---|---|
| Premium Aftermarket (e.g., ACDelco, Delphi, Standard Ignition) | These brands often serve as original equipment (OE) suppliers or have a long reputation for quality. They typically use brass or copper terminals, which resist corrosion and provide excellent conductivity. Many professional mechanics strongly recommend sticking with ACDelco or a premium equivalent for these trucks. | Owners looking for maximum reliability and longevity, mirroring original factory performance. |
| Performance (e.g., Accel) | These caps are designed for high-performance applications and often feature high-quality materials like copper terminals and durable housings designed to handle higher voltage from performance ignition coils. | Van owners with modified engines or those who want an upgrade in durability. |
| Standard Aftermarket (e.g., Walker Products, various store brands) | This category can be a mixed bag. Some use quality materials, while others use aluminum terminals. Aluminum is cheaper but corrodes faster, leading to poor connections and misfires. If choosing from this tier, verify that the cap has brass or copper terminals. | Budget-conscious DIY repairs where the part specifications (brass terminals) are verified before purchase. |
Pro Tip: Always Replace the Rotor
Always replace the distributor rotor when you replace the cap. The rotor is subjected to the same heat and electrical wear as the cap. Most quality caps are sold in a kit with a new rotor. Also, applying a small amount of dielectric grease to the terminals can help prevent corrosion.
Frequently Asked Questions (FAQ)
Are there any recalls for the distributor cap on my Express van?
No, there are no active recalls from the NHTSA for the distributor cap or related ignition components on the 1996-2007 Chevrolet Express 1500.
Why are brass terminals so important on these vans?
The Vortec ignition system is sensitive to connection quality. Aluminum terminals, found in many cheaper caps, are prone to rapid corrosion, especially when moisture is present. This corrosion creates resistance, weakening the spark and causing misfires. Brass and copper are far more resistant to corrosion and ensure a reliable, strong spark over a longer period.
How difficult is it to replace the distributor cap myself?
The job is straightforward but can be challenging due to access. The distributor is at the back of the engine, requiring you to remove the interior engine cover 🎬 See a complete walkthrough for replacing the cap and rotor. (the "doghouse"). The screws holding the cap and rotor can also be seized or rusted, sometimes requiring careful drilling to remove. It is a feasible DIY job for someone with basic tools and patience.
Do I need to do anything special after installing a new cap?
The most critical step is to transfer the spark plug wires from the old cap to the new cap one at a time to ensure the firing order remains correct. 🎬 Watch this guide for installing a new cap on V6 engines. Mixing up the wires will cause the engine to run very poorly or not at all. Also, make sure the cap is seated fully and the screws are snug but not overtightened, as this can crack the new cap.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10452458 D328A
The key specification to look for is the terminal material. For the 1996-2007 Chevrolet Express 1500, brass or copper terminals are highly recommended over aluminum for longevity and performance. The cap must be compatible with either the V6 (4.3L) or V8 (5.0L, 5.7L) engine for your specific year.
