Engine Coolant Thermostat Guide for the 1996-2007 Chevrolet Express 2500
Keep your workhorse van from overheating or running too cold by understanding and choosing the right thermostat.
- A thermostat failing 'open' is the most common issue, causing a P0128 code and a cold-running engine.
- For reliability, choose an ACDelco (OEM) thermostat; forum members strongly advise against budget brands for this part.
- While the part is cheap, professional replacement can cost over $200 due to labor.
- If your engine is overheating, stop driving immediately. If it's running cool, get it fixed soon to avoid other issues.
Is Your Express 2500 Thermostat Failing?
A thermostat is a simple part, but when it fails, it can cause noticeable problems. It can fail in two ways: stuck open or stuck closed. Both can cause issues for your van's engine.
Symptoms of a Bad Thermostat
- Engine Overheating: If the thermostat is stuck closed, it won't let hot coolant get to the radiator. Your temperature gauge will climb into the red, which can cause serious engine damage if you keep driving.
- Engine Slow to Warm Up: If the thermostat is stuck open, coolant flows to the radiator all the time. This makes it take a very long time for your engine to reach its normal operating temperature, especially in cold weather.
- Check Engine Light (P0128 Code): Modern vehicles monitor how quickly the engine warms up. If it takes too long, the computer will trigger a Check Engine Light with the code P0128. This is the most common code for a thermostat that is stuck open.
- Poor Heater Performance: Your van's heater uses hot coolant to warm the cabin. If the engine isn't getting hot enough because the thermostat is stuck open, your heater will only blow lukewarm air.
- Temperature Gauge Fluctuations: A faulty thermostat can cause the temperature gauge to move erratically, swinging from cool to hot.
Known Issues & Recalls
Searches for official recalls and Technical Service Bulletins (TSBs) from the NHTSA did not find any specific to the engine coolant thermostat for the 1996-2007 Chevrolet Express 2500. However, intake manifold gasket leaks are a known issue on these engines, which can cause coolant loss and lead to overheating symptoms similar to a bad thermostat. Always check for leaks when diagnosing a cooling system problem.
Choosing the Right Aftermarket Thermostat
For a work vehicle like the Express 2500, reliability is key. While you can save money with aftermarket parts, quality varies between brands.
Brand Quality Tiers
- OEM-Equivalent (Best Choice): ACDelco is the original equipment manufacturer for General Motors. Choosing an ACDelco thermostat is the safest bet for a perfect fit and correct temperature rating. Forum users overwhelmingly recommend sticking with ACDelco for this part to avoid issues with running too cool.
- Quality Aftermarket (Good Choice): Gates is a well-regarded aftermarket brand for cooling system components. Some owners have used Gates thermostats with success, though some report they can cause the engine to run slightly cooler than an OEM part.
- Value Brands (Use with Caution): Brands like Motorad and other store brands offer a lower price point. However, owner experiences are mixed. Some have had them fail prematurely or cause temperature regulation issues. While some Motorad parts are used as original equipment on other vehicles, their aftermarket quality can be inconsistent. For a critical part like a thermostat, spending a few extra dollars for a higher-quality brand is often worth it.
Pro Tip: Replace the Gasket and Check the Temperature
Always replace the thermostat gasket or seal when you replace the thermostat to prevent leaks. Also, ensure you are buying a thermostat with the correct temperature rating for your specific engine (e.g., 187°F or 195°F). Using the wrong temperature can affect performance and fuel economy.
Estimated Costs for Thermostat Replacement
The cost to replace a thermostat can vary significantly depending on whether you do it yourself or have a shop perform the work. The part itself is inexpensive, but labor can be the larger part of the bill.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Thermostat | $13 - $100 |
| Shop Labor | $140 - $205 |
| Total Professional Replacement | ~$153 - $305+ |
Note: The professional replacement cost estimate is based on aftermarket part prices and published labor estimates. Some sources report much higher total costs, which may include a complete cooling system flush or replacement of the thermostat housing assembly.
Frequently Asked Questions (FAQ)
Can I drive my Express 2500 with a bad thermostat?
If it's stuck closed and the engine is overheating, no. Pull over immediately to avoid catastrophic engine damage. If it's stuck open (running cool, P0128 code), you can drive it cautiously for a short time, but you should get it fixed soon to avoid poor fuel economy, increased engine wear, and failed emissions tests.
How difficult is it to replace the thermostat myself?
For most V8 and V6 engines in the Express van, the thermostat is located at the front of the engine where the upper radiator hose connects to the engine. It is generally a DIY-feasible job for someone with basic mechanic's tools. It involves draining some coolant, removing the air intake ducting for access, unbolting the thermostat housing, swapping the part, and refilling/bleeding the coolant. The difficulty is moderate due to tight access on some van models.
Should I replace the thermostat housing at the same time?
It's not always necessary, but inspect the old housing for corrosion, cracks, or warping, especially where the gasket seals. If it's damaged, replace it. Some aftermarket kits include the thermostat and housing as a single assembly.
What is the correct thermostat temperature for my van?
The correct temperature is typically stamped on the thermostat itself, often 187°F or 195°F. It is critical to use the OEM-specified temperature for your van's engine and year. Using a cooler thermostat will likely cause a persistent P0128 check engine light.

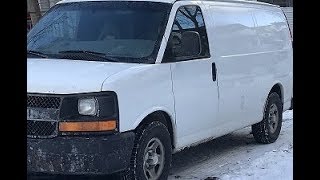

Helpful Videos
Technical Specifications
OEM Part Numbers: 12559336 89018168
Standard operating temperatures are typically 187°F or 195°F depending on the specific engine. The thermostat is a mechanical, wax-pellet type valve. It is located inside a housing where the upper radiator hose connects to the engine.
