Dodge Caravan Drum Brake Hardware Kit Guide (1996-2007)
Keep your minivan's rear brakes working properly by replacing these critical springs and clips.
- Always replace the drum brake hardware kit when you replace the rear brake shoes; it's a cheap and critical part of the job.
- Rust is the main enemy; self-adjusters and parking brake levers on Caravans are known to seize, causing poor brake performance.
- Aftermarket brands like Carlson, Centric, and Dorman offer good quality and value for this specific vehicle.
- A new hardware kit is essential for restoring proper function to a weak or ineffective parking brake.
Signs of Failing Drum Brake Hardware
The small springs and clips in your Caravan's rear brakes don't last forever. Heat and moisture cause them to weaken and rust. When the hardware fails, it can cause several noticeable problems.
- Scraping or Grinding Noises: When you hit the brakes, you might hear grinding. This can happen if a broken spring allows the metal brake shoe to contact the drum. Loose or broken hardware can also rattle around inside the drum.
- Poor Parking Brake: If your parking brake pedal feels loose or the van doesn't hold securely on a hill, it's often due to worn shoes and faulty hardware. The self-adjusters, which are part of the hardware system, often seize up with rust, preventing the parking brake from working correctly.
- Brake Dragging or Pulling: Weak or broken return springs can fail to pull the brake shoes away from the drum. This causes the brakes to drag, leading to excess heat, a burning smell, and your van pulling to one side.
- Spongy or Low Brake Pedal: While less common for hardware alone, issues inside the drum can sometimes contribute to a pedal that feels soft or goes down too far.
Always Replace Hardware with Shoes
It is standard practice to replace the drum brake hardware kit every time you replace the brake shoes. The old springs lose tension and can break unexpectedly. A new hardware kit is an inexpensive way to ensure your new brakes function safely and effectively.

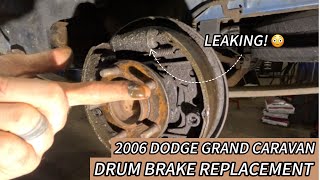

🎬 Watch: Full restoration of Caravan rear drums and wheel cylindersChoosing the Right Aftermarket Hardware Kit
For a 1996-2007 Dodge Caravan, aftermarket hardware kits offer excellent value. The original OEM parts are often hard to find or unnecessarily expensive for a vehicle of this age. Aftermarket brands provide quality components designed to meet or exceed factory specifications.
Aftermarket Brand Tiers
When shopping for a drum brake hardware kit, you'll find several reliable brands. They generally fall into these categories:

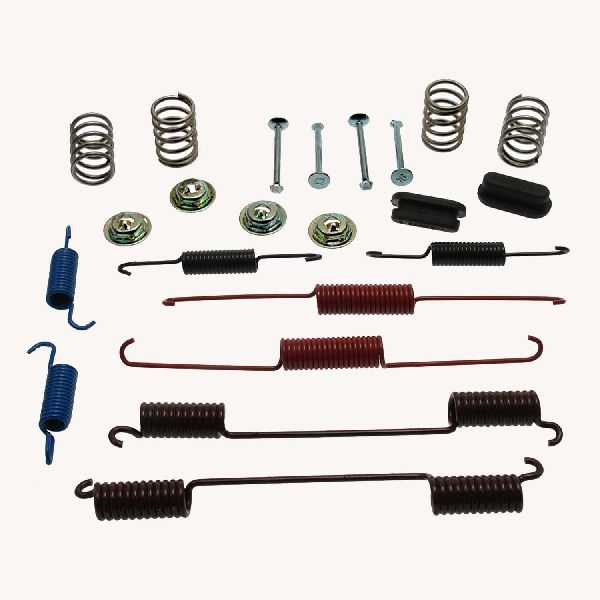

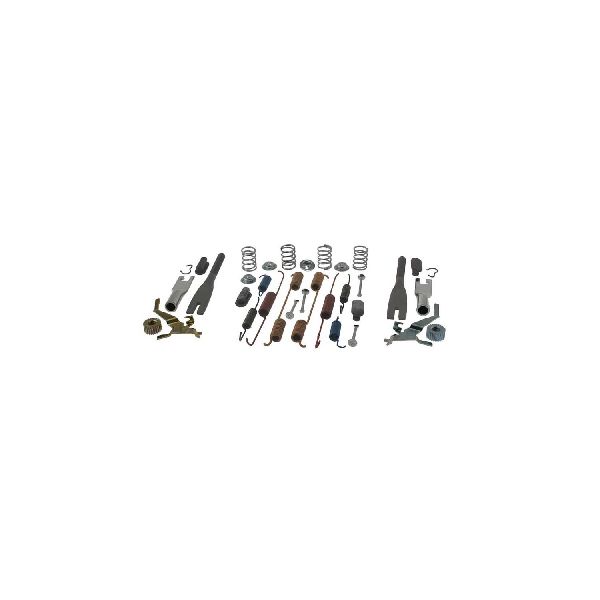

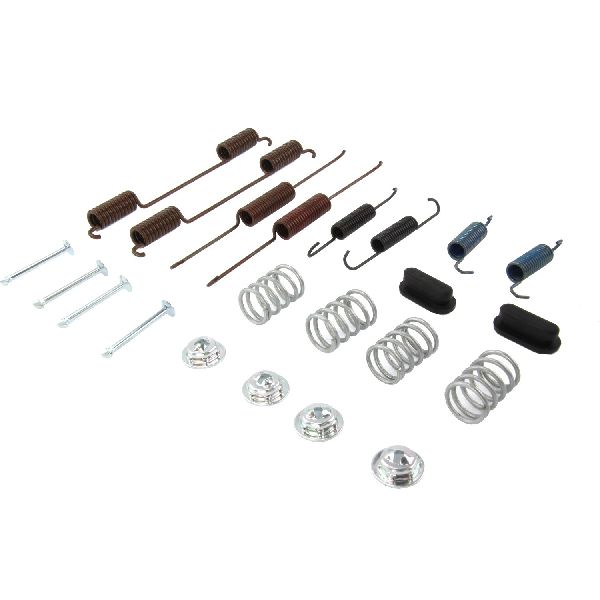

- Professional Grade (Carlson, Centric): These brands are well-regarded for providing complete, high-quality kits. They often use materials and finishes designed for durability and are a popular choice among mechanics. Many users report good fit and long life from Carlson and Centric products.

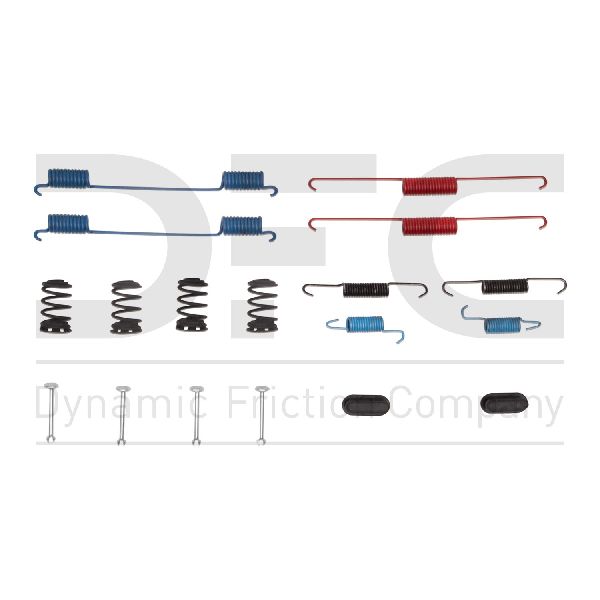

- Standard Replacement (Dorman, Dynamic Friction): Dorman is a widely available brand that offers a functional, budget-friendly option. Dynamic Friction is another solid choice that provides good quality components. These kits are perfect for DIYers and daily-driven vehicles, offering a good balance of price and performance.

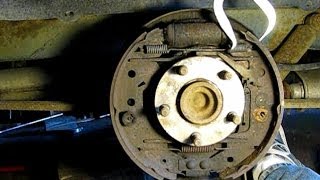

Pro Tip: Before you start the job, open the new hardware kit and compare it to a picture of your brake assembly to make sure you have all the correct parts. 🎬 See this step-by-step guide for disassembling your rear brakes Some kits may be more complete than others.
| Part Type | Typical Cost |
|---|---|
| New Aftermarket Hardware Kit | $18 - $58 |
| Shop Labor to Install (with shoes) | $150 - $270 |
Frequently Asked Questions (FAQ)
Do I have to replace the hardware if it looks okay?
Yes. The springs lose their tension over time from heat and use, even if they aren't visibly broken or rusted. Reusing old hardware is a common cause of noise, brake drag, and premature shoe wear. For the low cost of a kit, it's not worth the risk.
What are common issues when replacing this hardware?
On these Caravans, the most common issue is a seized or stuck brake drum due to rust or a wear lip. The self-adjuster can also be difficult to back off. It's recommended to have a special brake spring tool and possibly M8x1.25 bolts to help push the drum off the hub if it's stuck.
🎬 Watch: How to remove a stuck brake drumAre there any recalls or TSBs for my Caravan's drum brakes?
Searches found Technical Service Bulletins (TSBs) for older models related to snow/water getting into the rear drums (TSB #0500106A) and a cyclic rubbing sound (TSB #0500402). These are not safety recalls but are acknowledgments of known issues. No specific recalls for the drum brake hardware itself were found for the 1996-2007 model years.
Will a new hardware kit fix my ineffective parking brake?
It is a critical part of the solution. A new hardware kit, especially one that includes new self-adjusters, combined with new brake shoes and properly inspected drums, is the correct way to restore parking brake function. Seized adjusters are a common cause of a poor parking brake on these vans.
Helpful Videos
Technical Specifications
Kit typically includes return springs, hold-down springs, pins, clips, and sometimes self-adjuster components.
